What is Electro-Mechanical of a Pool?
Pool Mechanics & Essentials
What is Electromechanical in a Swimming Pool?
In the context of swimming pools, electromechanical systems refer to the mechanical and electrical components that are essential for the operation, circulation, filtration, cleaning, lighting, and overall functionality of the pool.
These systems combine electrical power with mechanical movement to keep the pool running efficiently, safely, and hygienically.
Important pool fittings like inlets, skimmers, vacuum points, and main drains ensure proper water flow and debris removal. Cleaning tools such as deep nets, vacuum heads, hoses, and brushes help maintain cleanliness.
Chemical essentials like TCCA 90 (chlorine), Algae Move, pH adjusters, and a pH testing kit are vital for balanced and healthy pool water.
For expert advice on pool mechanics and essentials, contact Pronto Pools today!
Pool Mechanics
- Filtration System
- Swimming Pool Pump
- Underwater Lights / RGB Lights
Main Basin fittings
- Inlets
- Skimmers
- Main Drain
- Vacuum Point
Cleaning Essentials
- Deep Leaf Net
- Vacuum Head & Hose
- Algae Brush / Pool Brush
Chemical Essentials
- TCCA 90 (Chlorine)
- Algaecide (e.g., Algae Move)
- pH Increaser / Decreaser
- pH Testing Kit
Pool Automation
- Control Panels & Timers
- Robotic Pool Cleaners
Optional Pool Items
- Pool Heater
- Pool Cover Systems (motorized, optional)
- Ozonator for Pools
- Chlorine Dosing Pump
- Pool Counter Current System
- Jacuzzi
FILTRATION

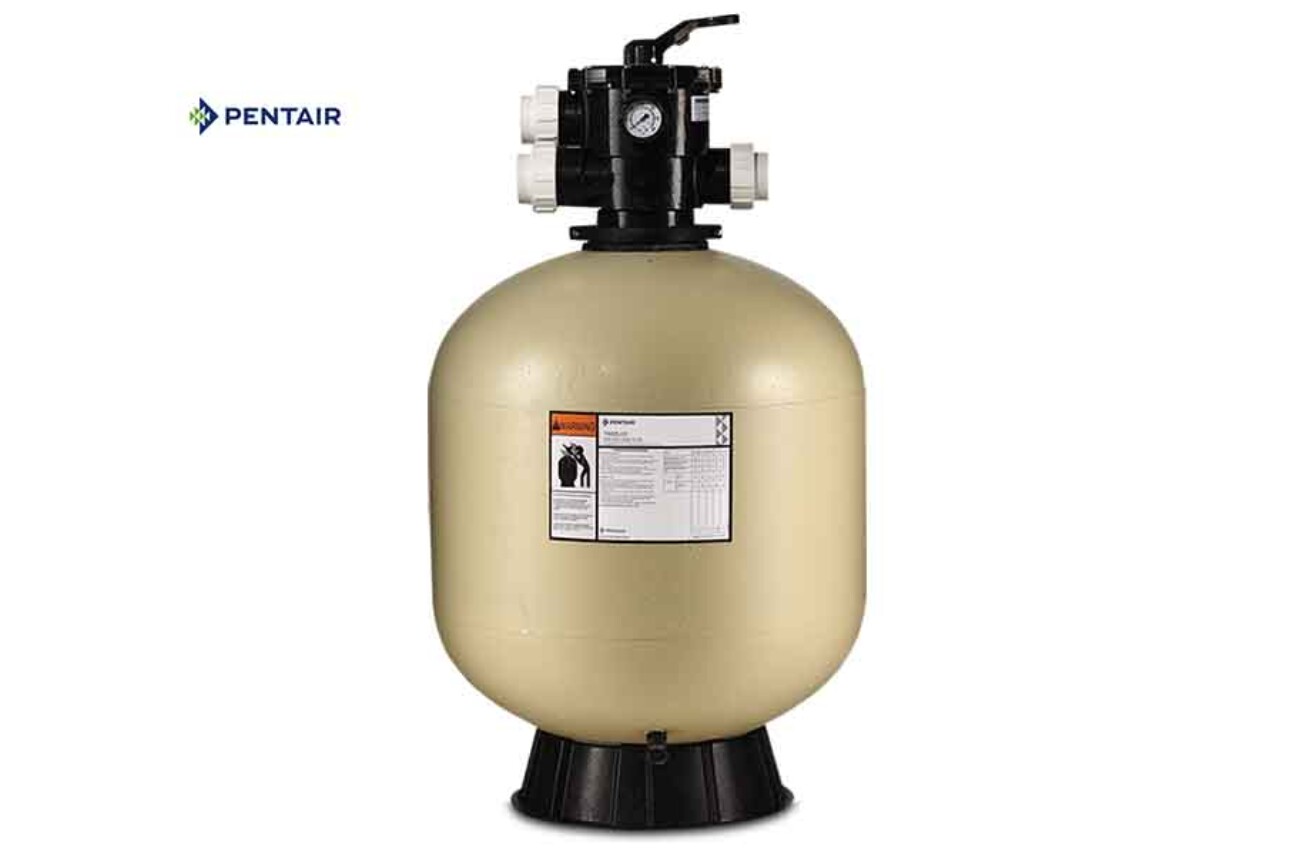

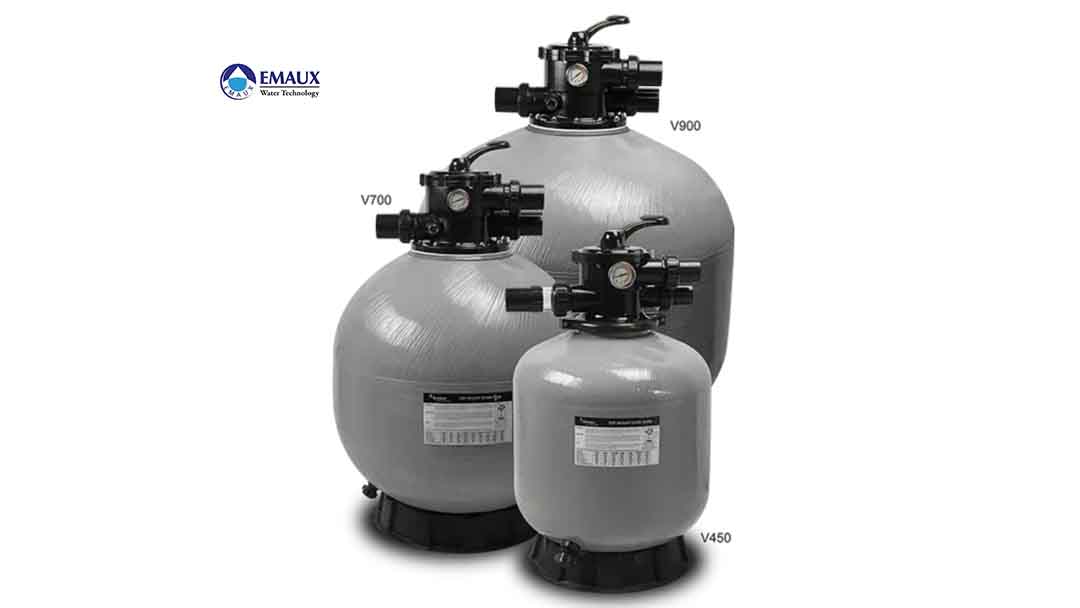

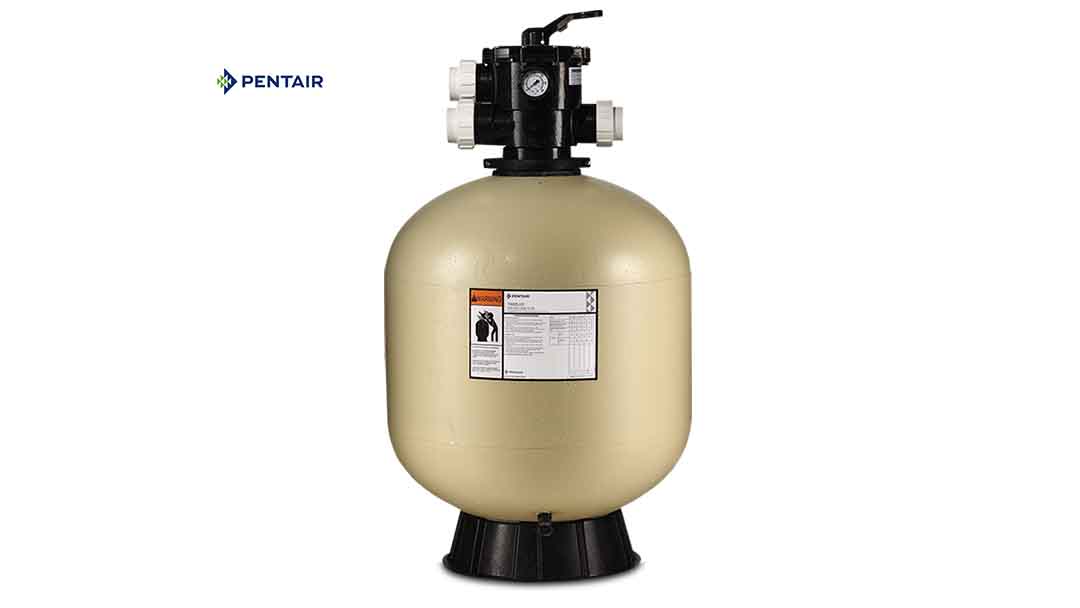

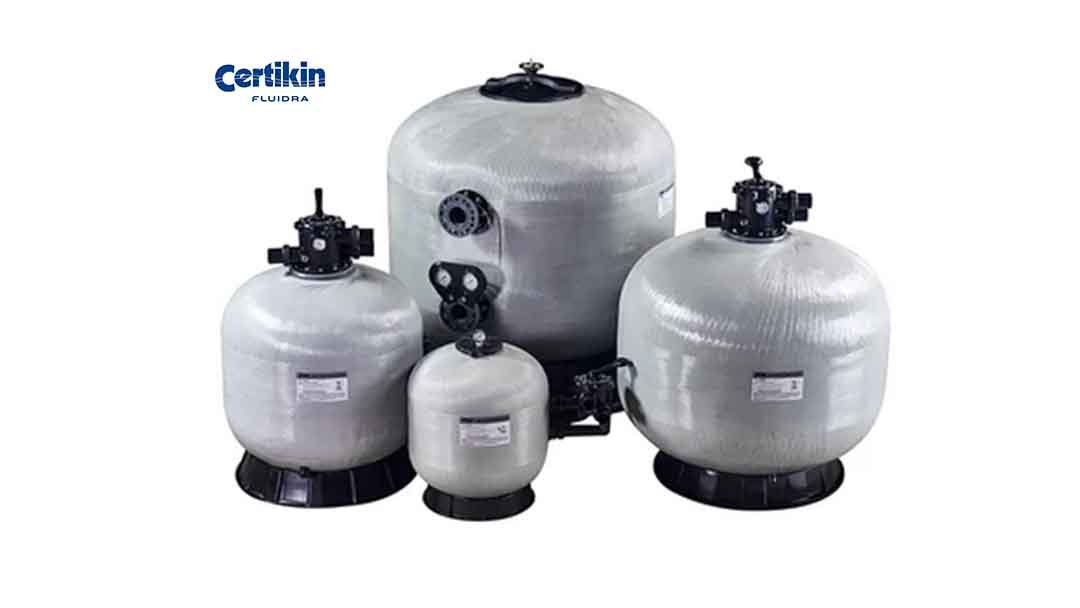

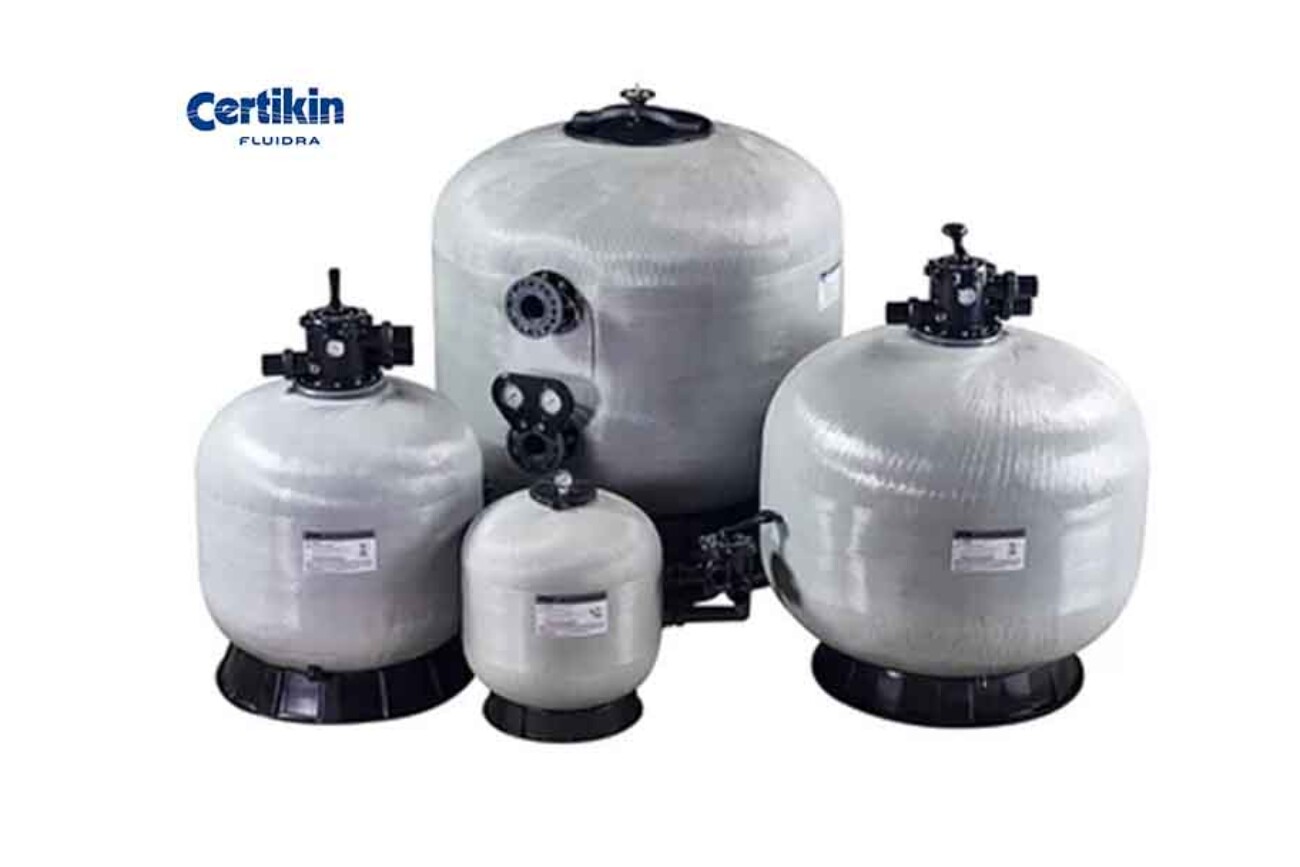

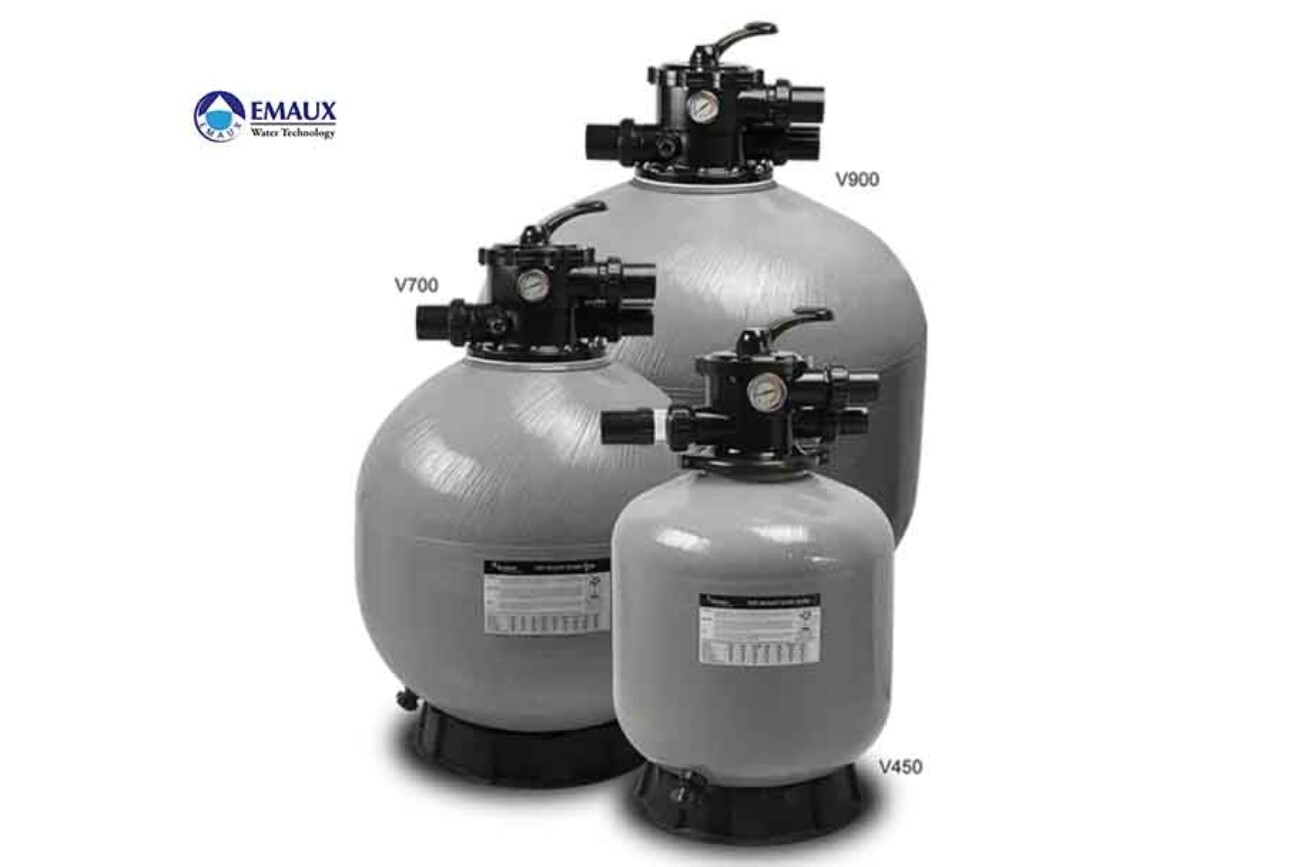

SAND FILTER
These are usually the most affordable type of filter to purchase and and maintain. They are also easy to clean out particulates to waste, such as the sediment after removing phosphates from water. The cleaning cycle is called backwashing, which is when the operator reverses the direction of waterflow. Water pumps up from the bottom of the sand bed, and out the top to a waste line. Because of the ease of backwashing, maintaining sand filters is pretty straight forward and easy.
Technical
Sand Filters are sealed vessels, usually about 1/2 to 2/3 full of certified filter sand at the bottom of the filter, gravel. Most sand filters are what we call pressure sand, where water is pumped into the top of the sealed filter, and the water pressure pushes water down through the depths of sand and gravel (or glass), and eventually out through the bottom, through openings called laterals.
Pros of Sand Filters
Affordable, easy to clean (backwashing), simple to use, and they last a very long time.
Cons of Sand Pools
Sand filters capture particles as small as 20-30 microns (µ), which means their filter screening ability is the weakest of all types of pool filters.
BRANDS AVAILABLE WITH US

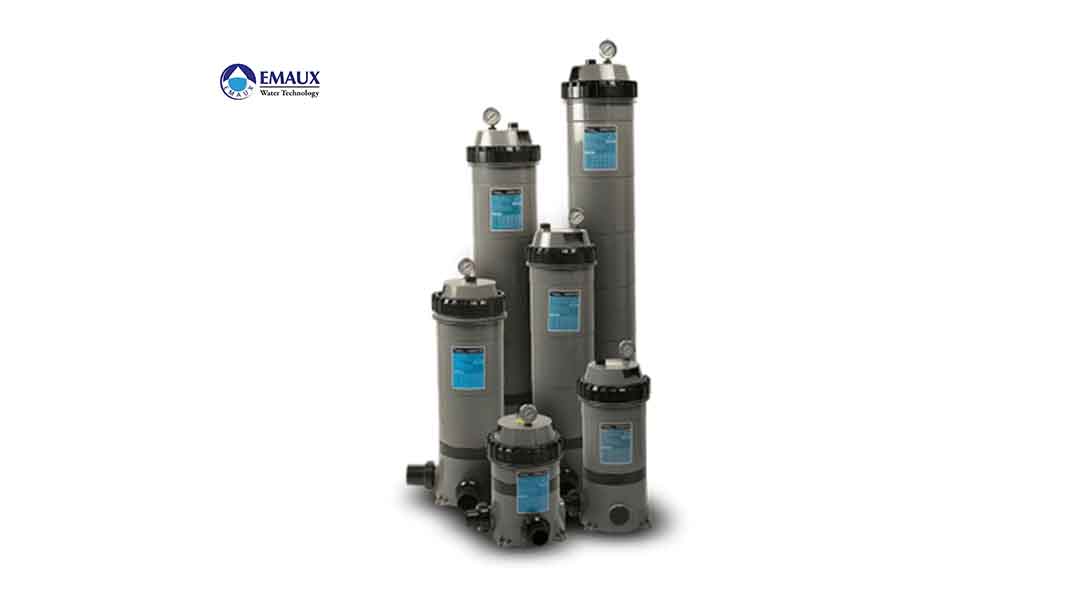

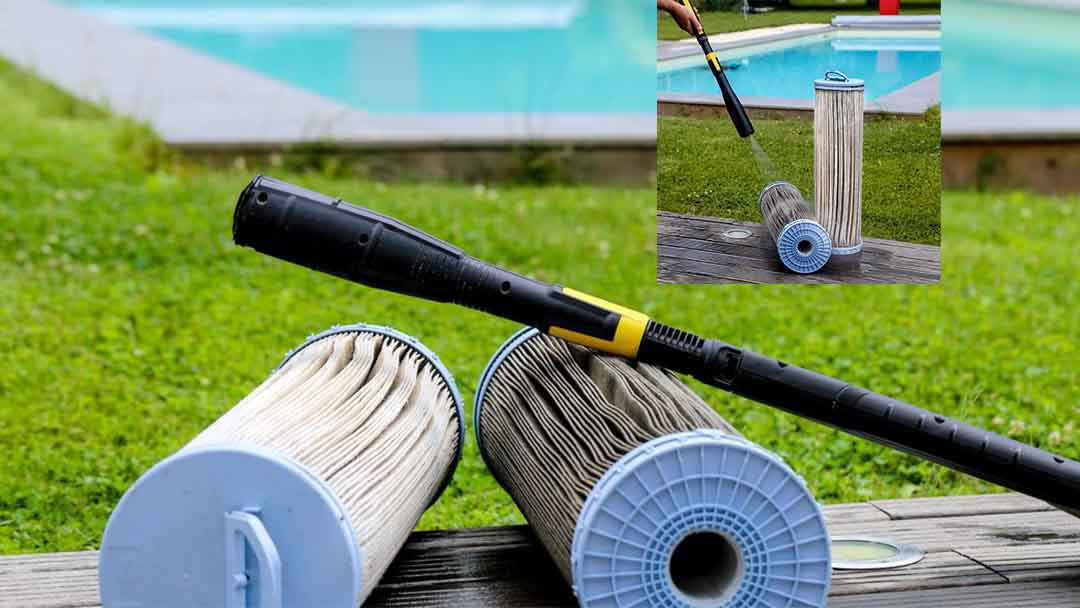

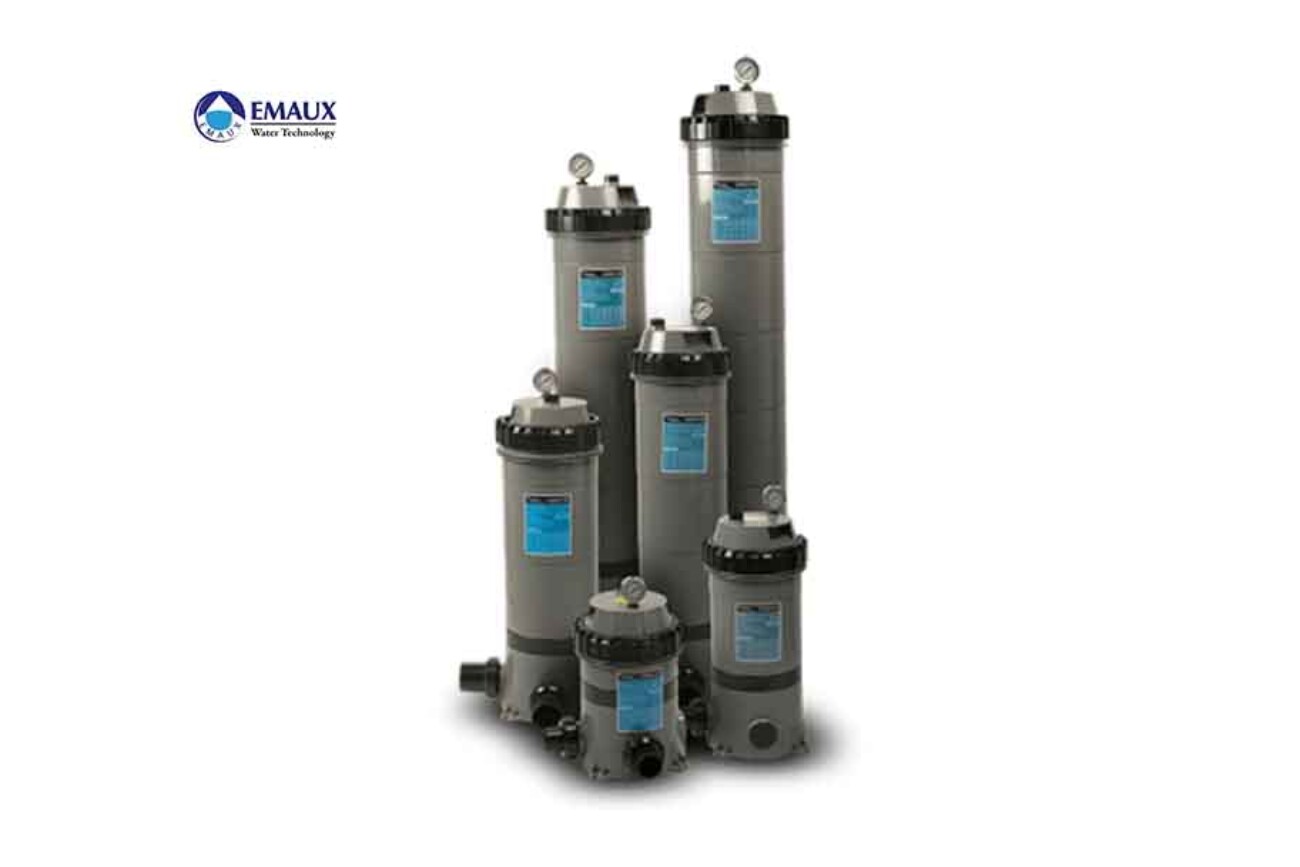

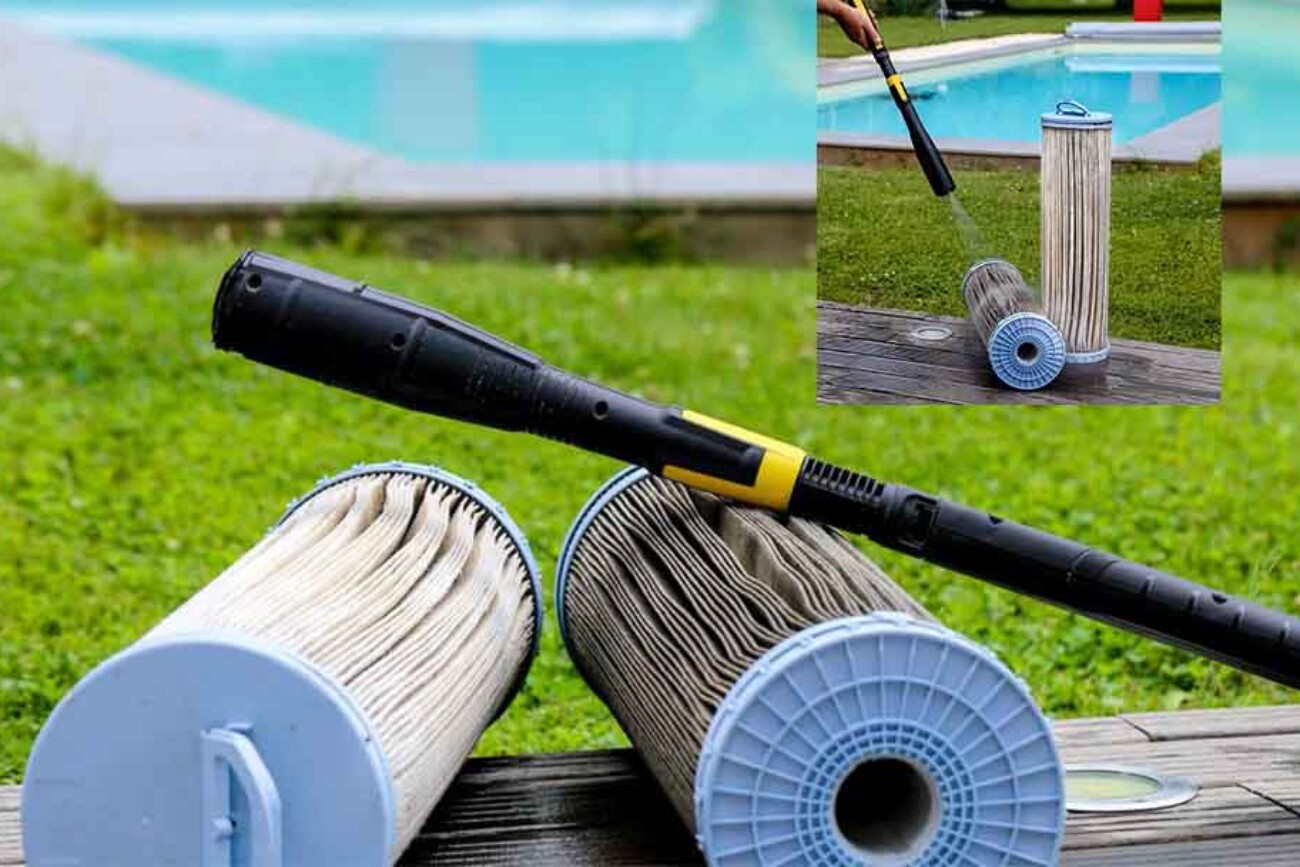

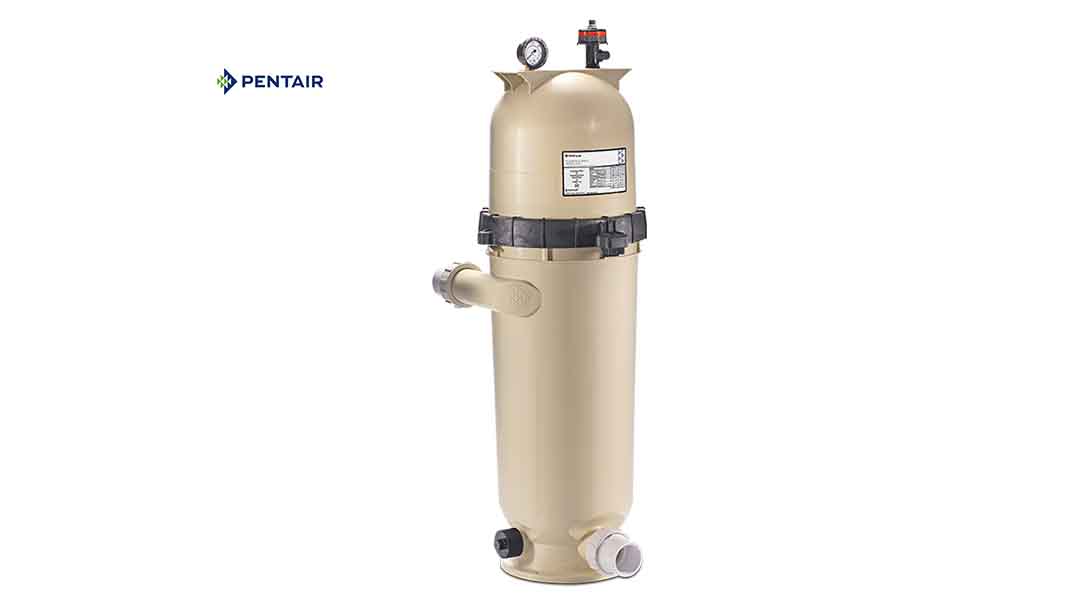

Cartridge FILTER

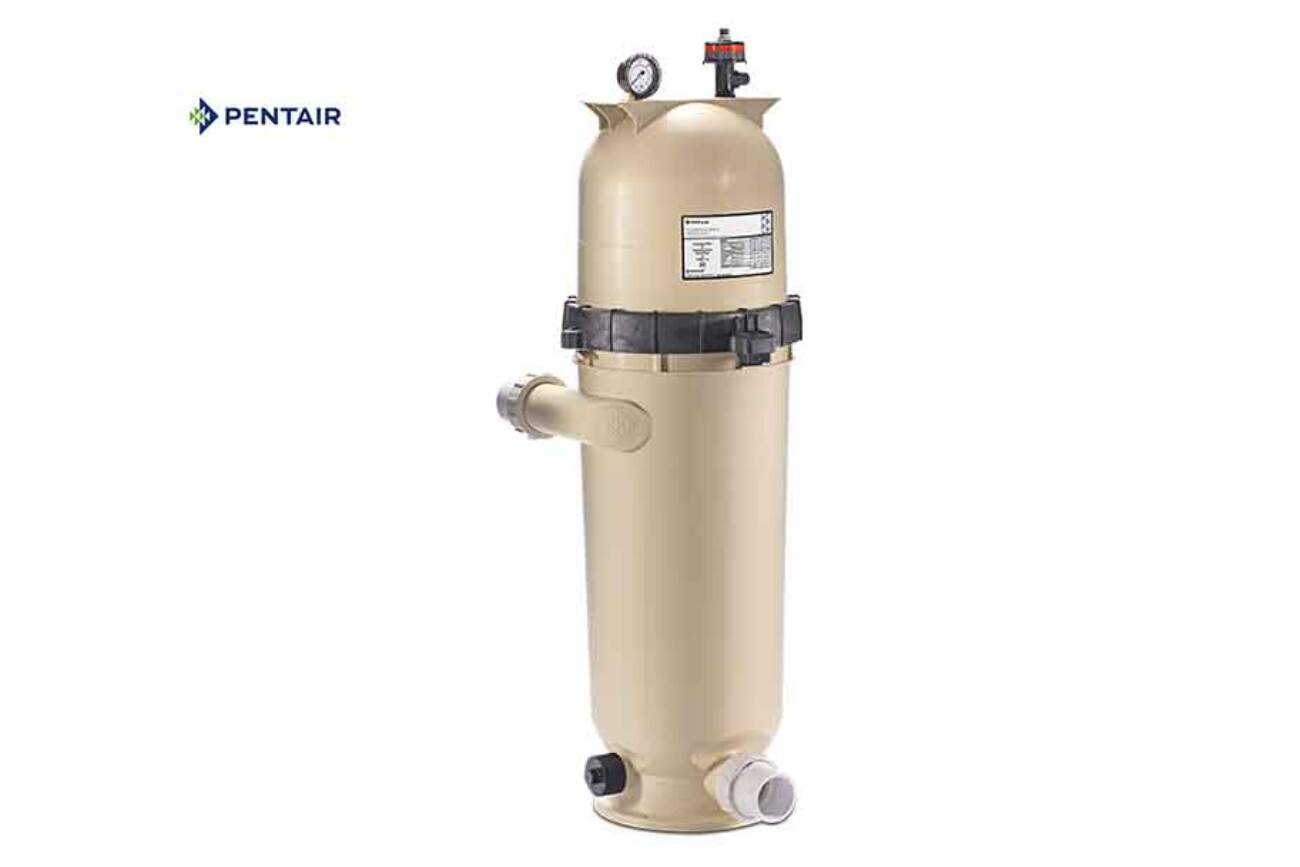

Cartridge filters are very rarely used in commercial pools, and in our opinion, for good reason. They are common in residential pools with low bather loads, and their screening ability is better than that of a sand filter (down to 8-12µ particle size can be captured). But while clarity might be better for a while, cartridges tend to get dirty faster, and need to be cleaned. Unlike sand filters with a simple backwash function, cartridge filters must be opened, removed and manually cleaned. It takes time and effort, and it is not a fun job. On top of that, cartridges do not last very long compared to sand. Some need to be replaced more than once a year, depending on how the pool is used and maintained.
Pros of Cartridge Filters
Simple installation, easy to use, good water clarity.
Cons of Cartridge Filters
Laborious to clean (and the cartridges must be cleaned frequently), and their longevity before replacement cartridges is low.
BRANDS AVAILABLE WITH US

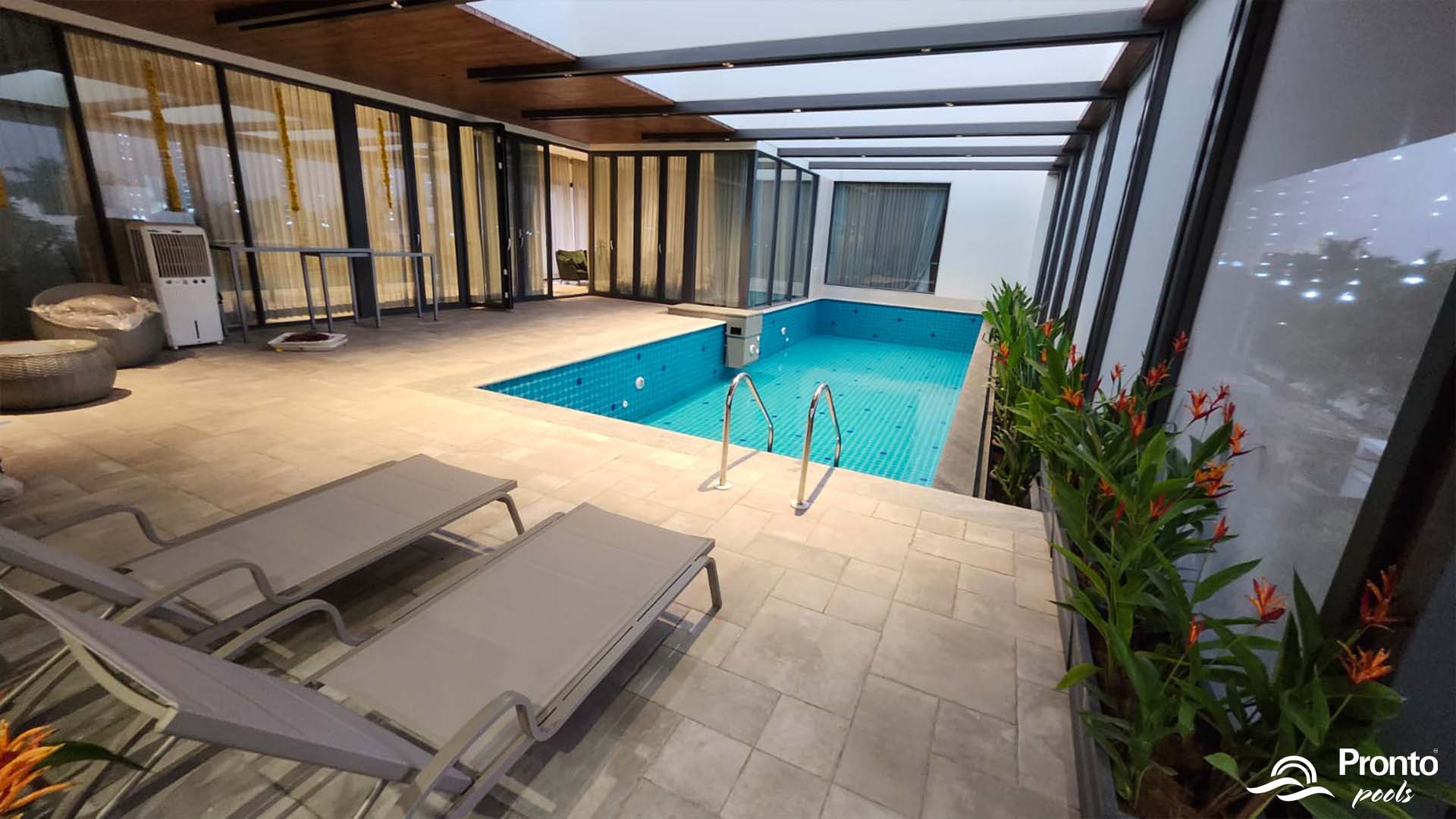

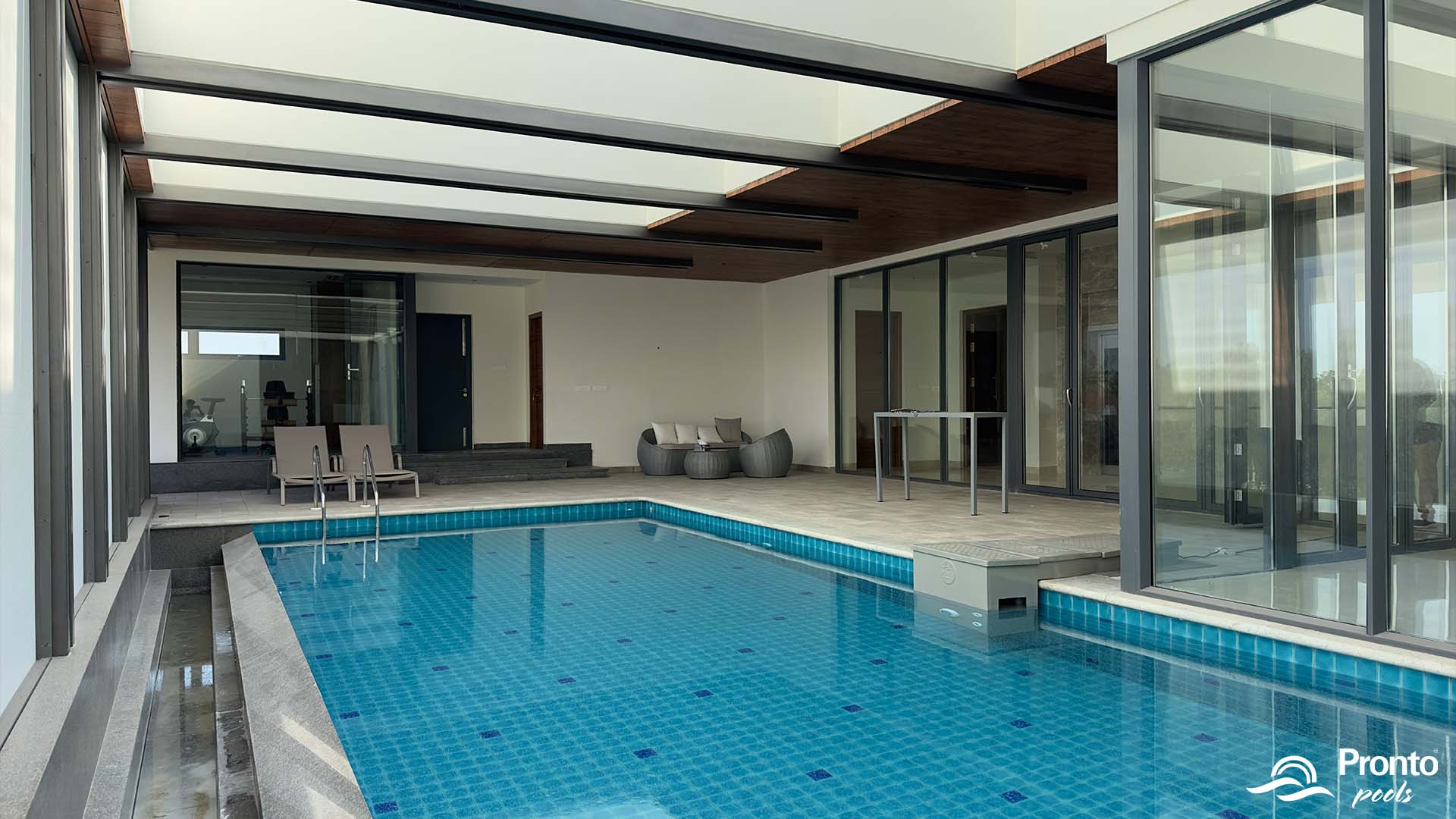

Pipeless Filter

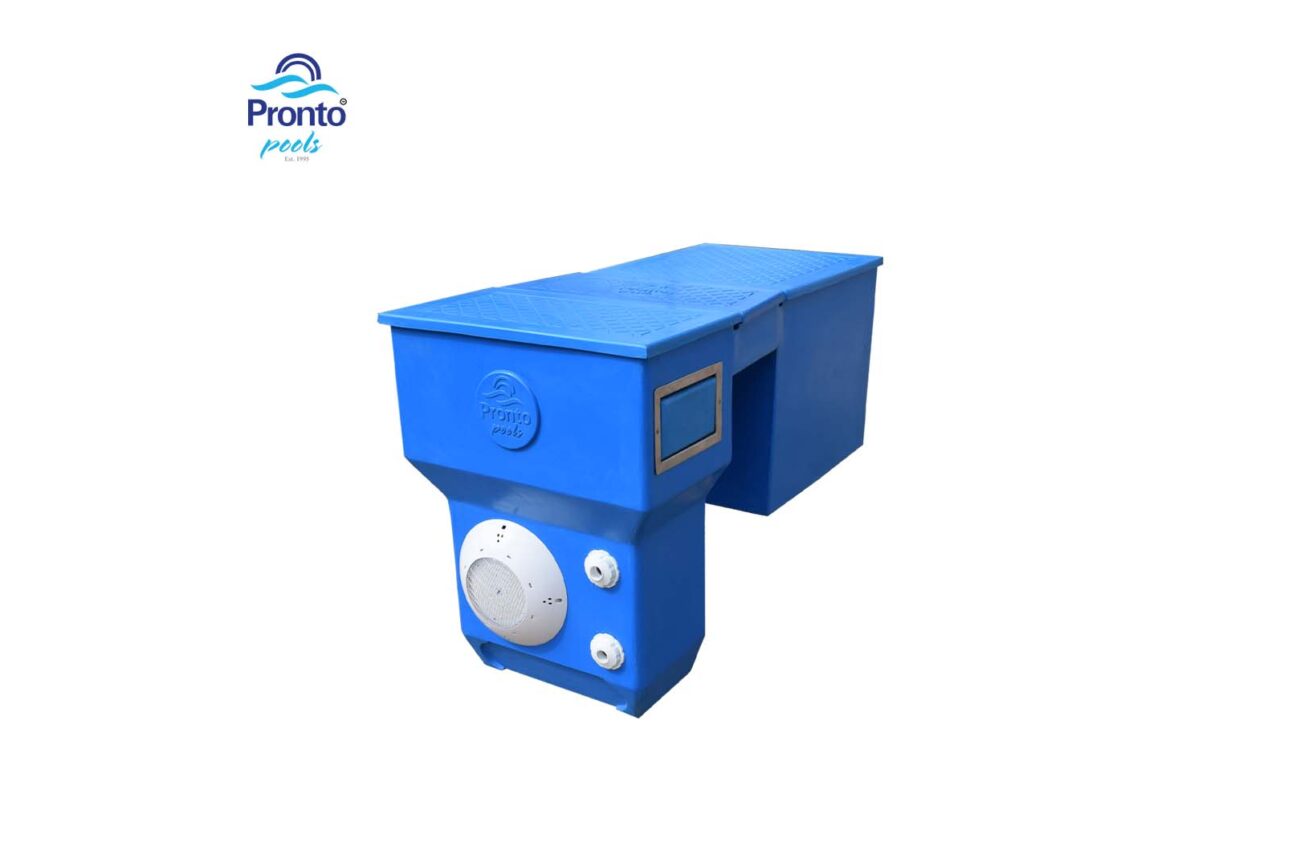

Pipeless Filter (a product of Pronto pools)

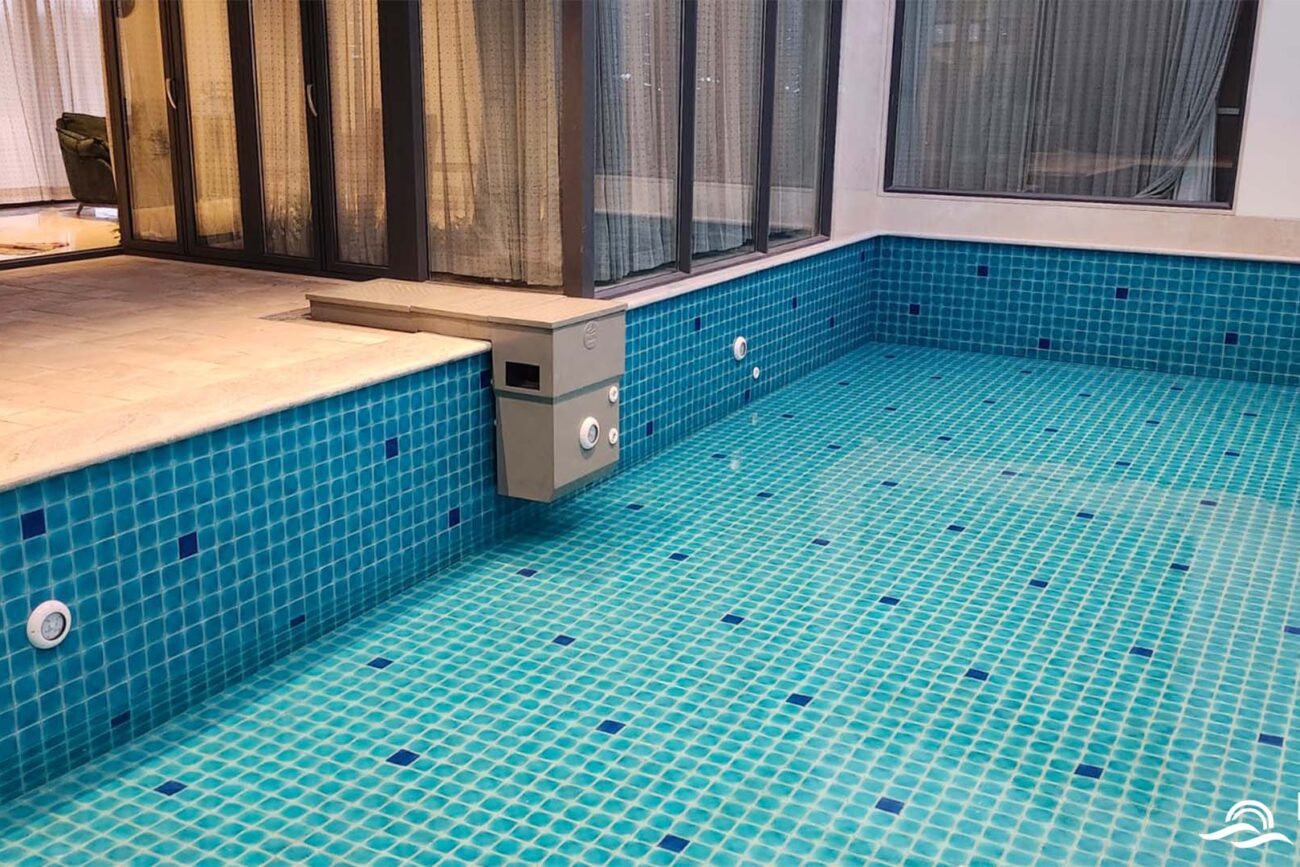

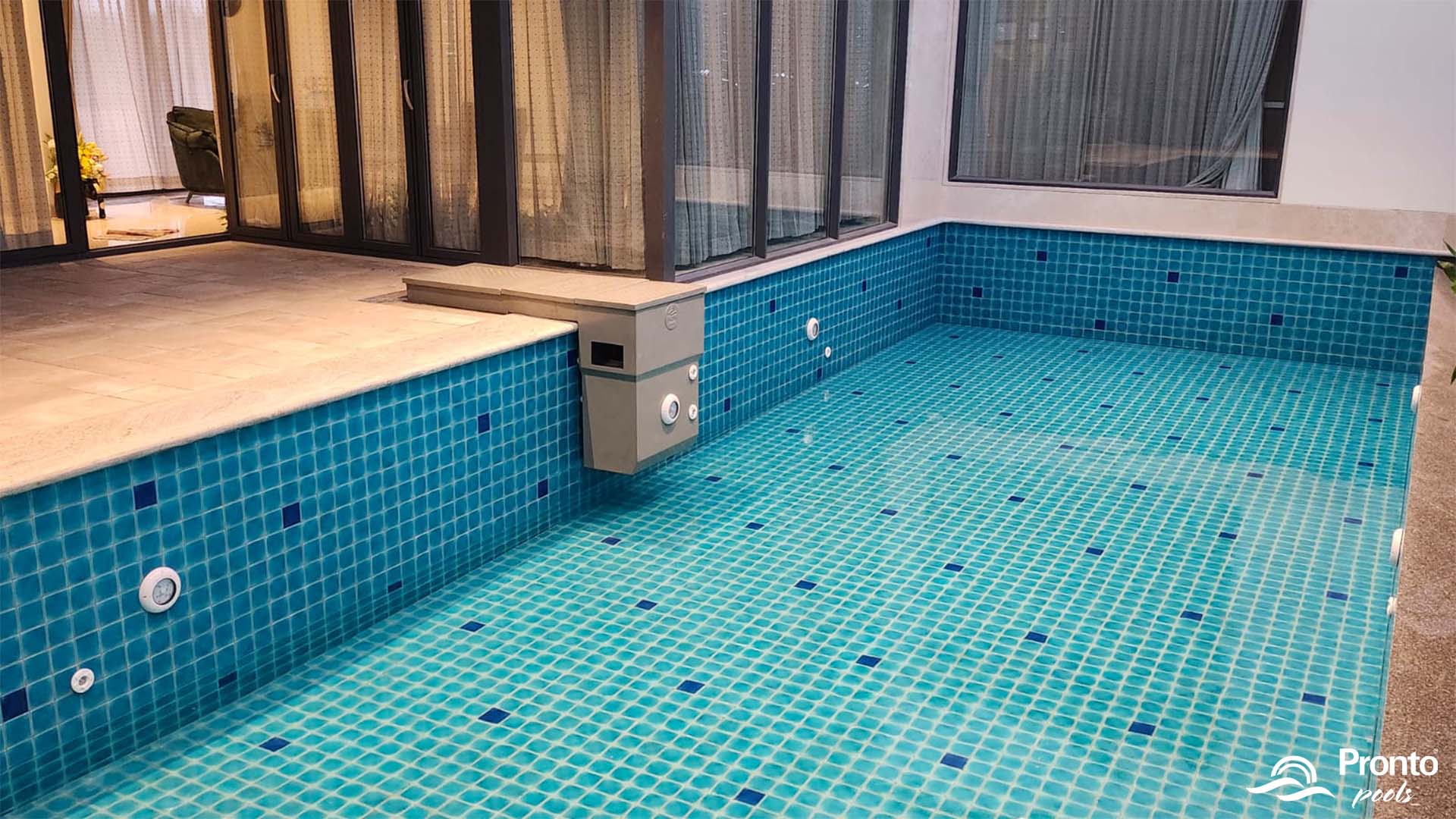

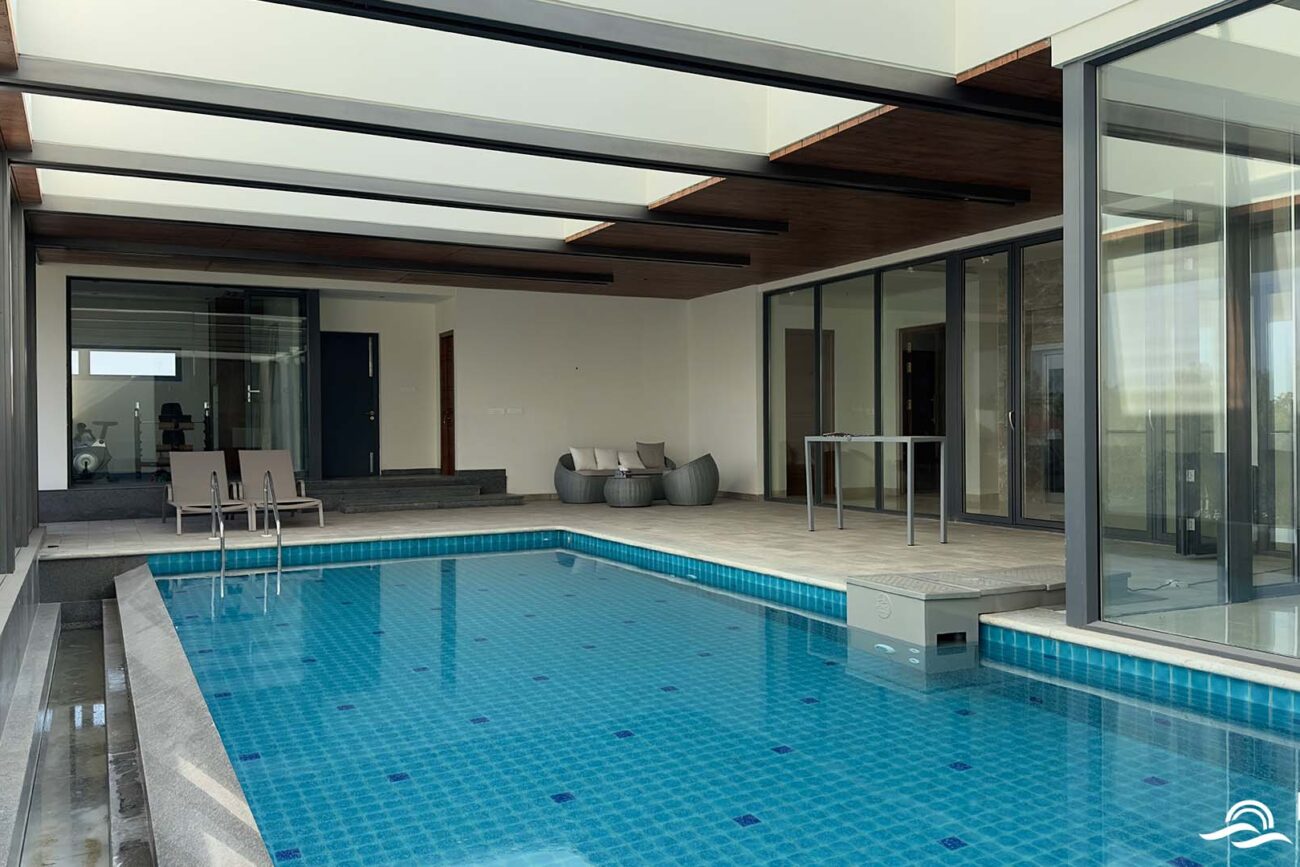

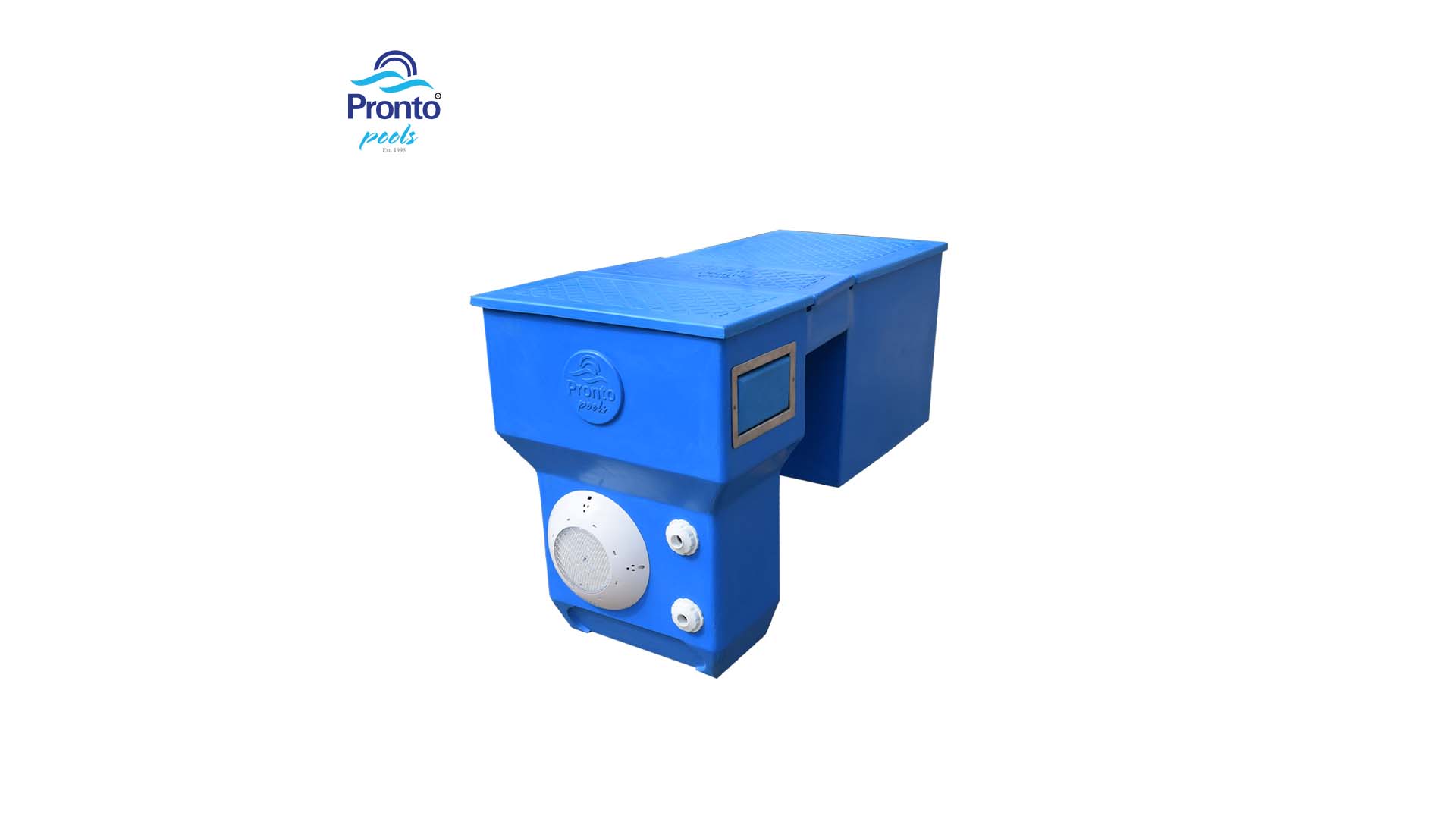

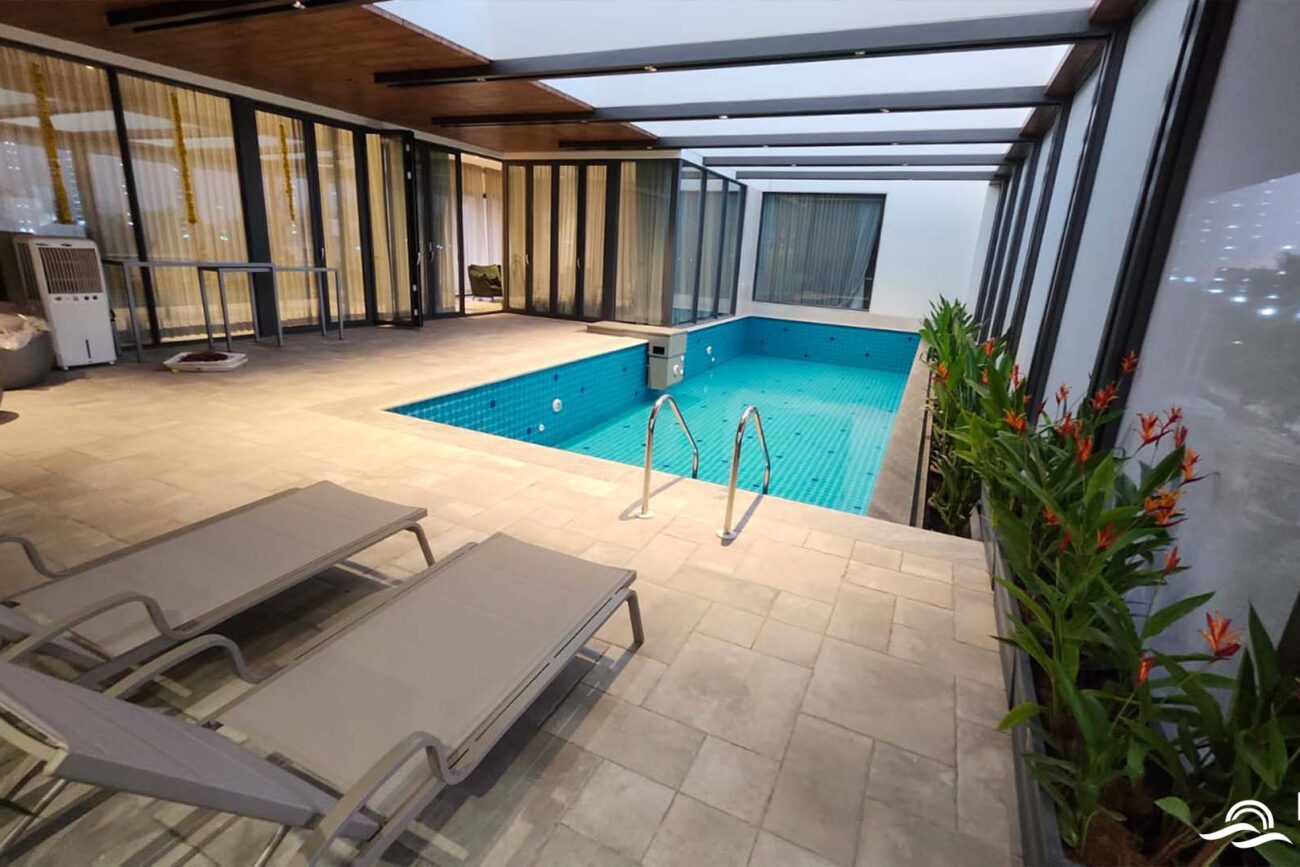

The PP-10 is a compact, all-in-one pipeless filtration system designed for ease of installation and efficiency. It combines skimming, filtration, and circulation within a single unit, eliminating the need for extensive underground plumbing. Ideal for smaller residential pools or retrofitting existing pools, the PP-10 ensures clean and clear water with minimal infrastructure.
Pros of Fiberglass Tub Pools
- No Underground Piping Required: Great for renovations or locations with restrictions on plumbing work.
- Compact & Space-Saving: All-in-one system with integrated pump, filter, and skimmer.
- Easy Installation & Maintenance: Simplified setup without major construction work.
- Cost-Effective: Reduces installation time and labor costs.
- Available Add-ons: Options for RGB lighting and timer controls enhance usability.
- Efficient Filtration: 12m³/h capacity with cartridge filters (25µ/4.5m²).
Cons of Fiberglass Tub Pools
- Visible Unit: The unit is mounted on the pool wall, which might not be preferred aesthetically.
- Limited Flow Rate: May not be suitable for large or high-traffic pools.
- Cartridge Cleaning Needed: Requires regular cleaning or replacement of cartridge filters.
- Single Unit Limitation: Larger pools may require multiple units for effective filtration.
Is Pipeless Filter Right for Your Pool?
The PP-10 pipeless filter is an excellent choice if you’re looking for a hassle-free, low-maintenance solution—especially for small to medium-sized residential pools. It’s perfect if you want to avoid major plumbing work, are renovating an existing pool, or need a quick installation.
However, if you’re building a large commercial pool or want the filter system hidden from view, a traditional filtration system might suit you better.
Not sure what fits your needs? Contact Pronto Pools and we’ll help you choose the right system for your pool.

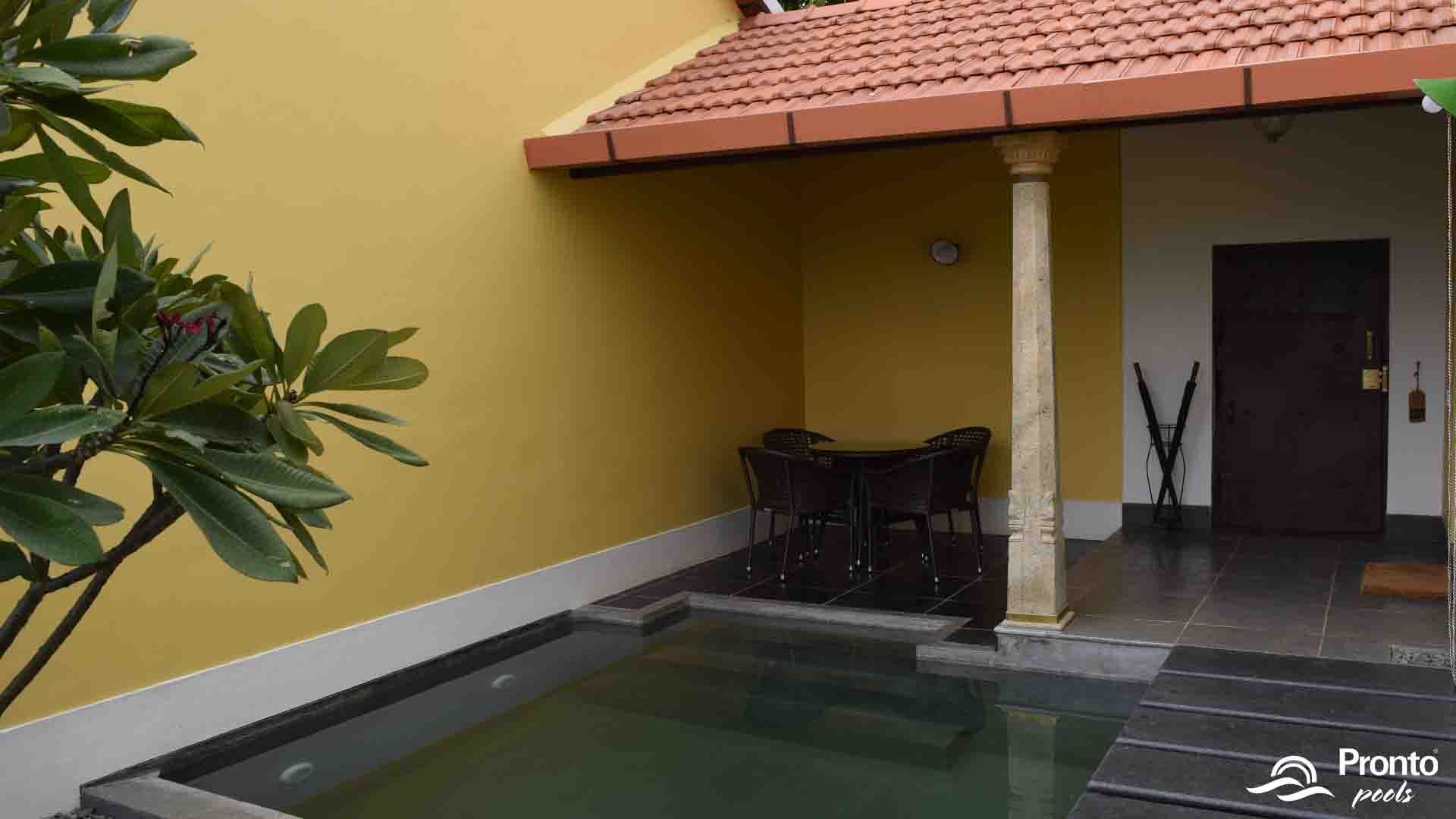

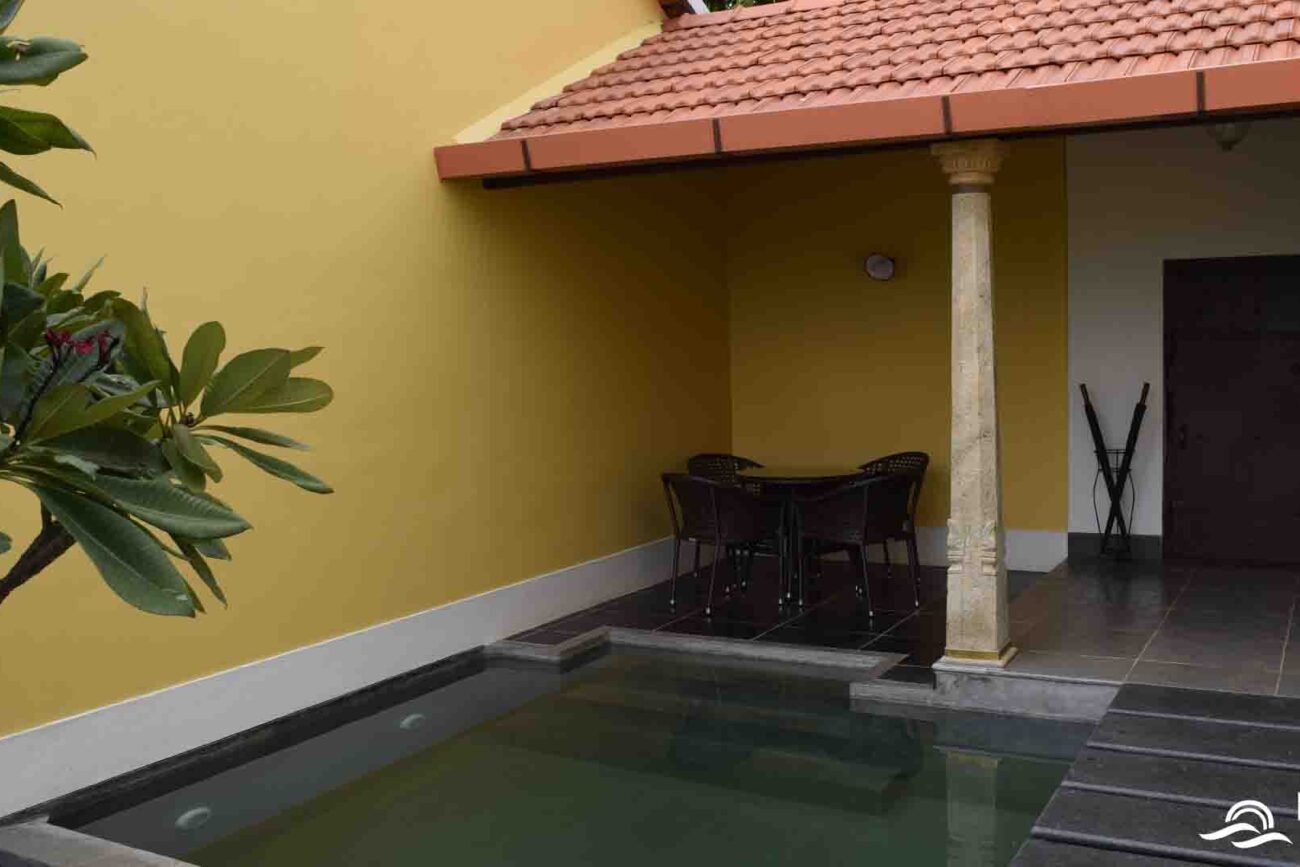

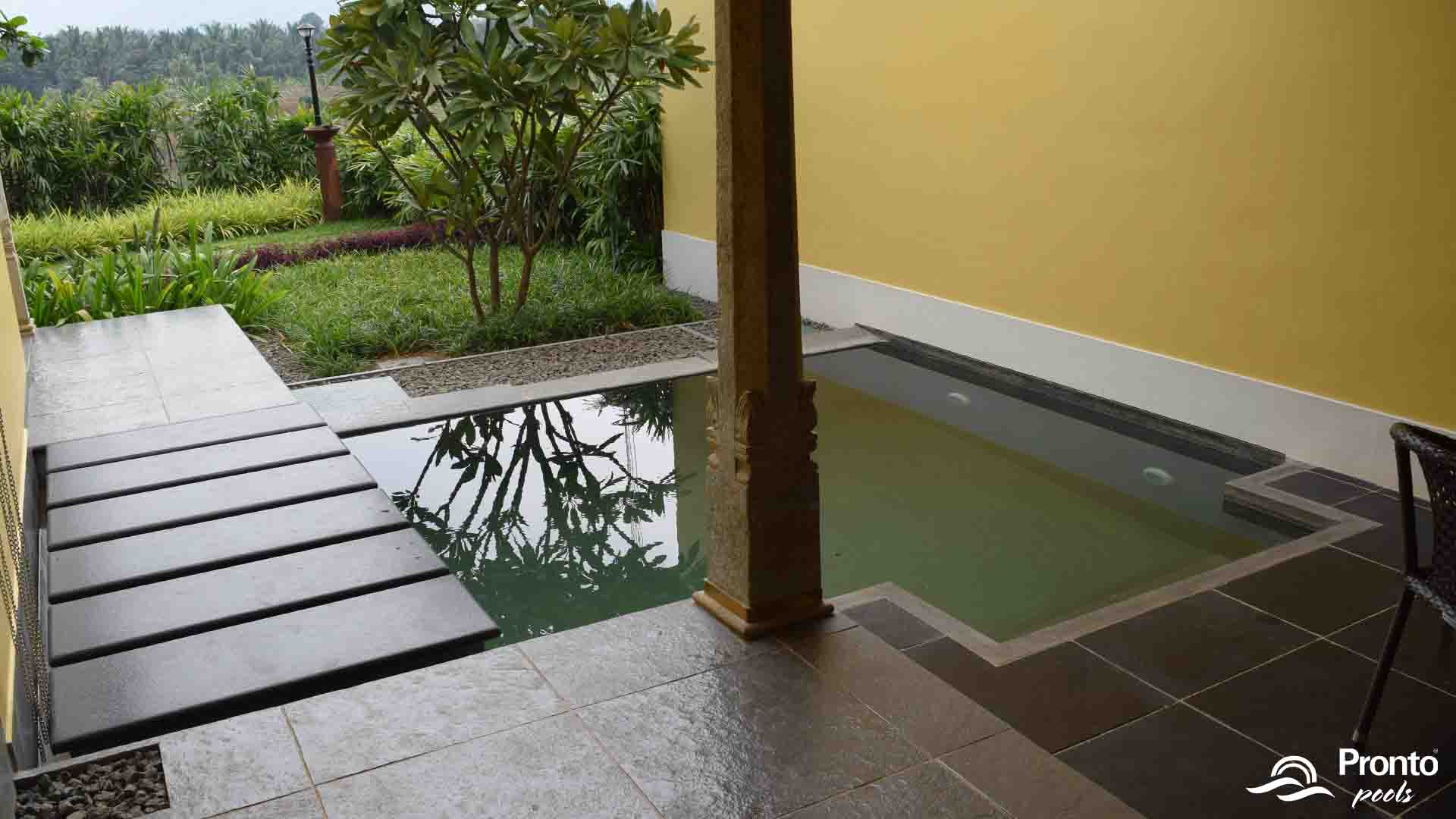

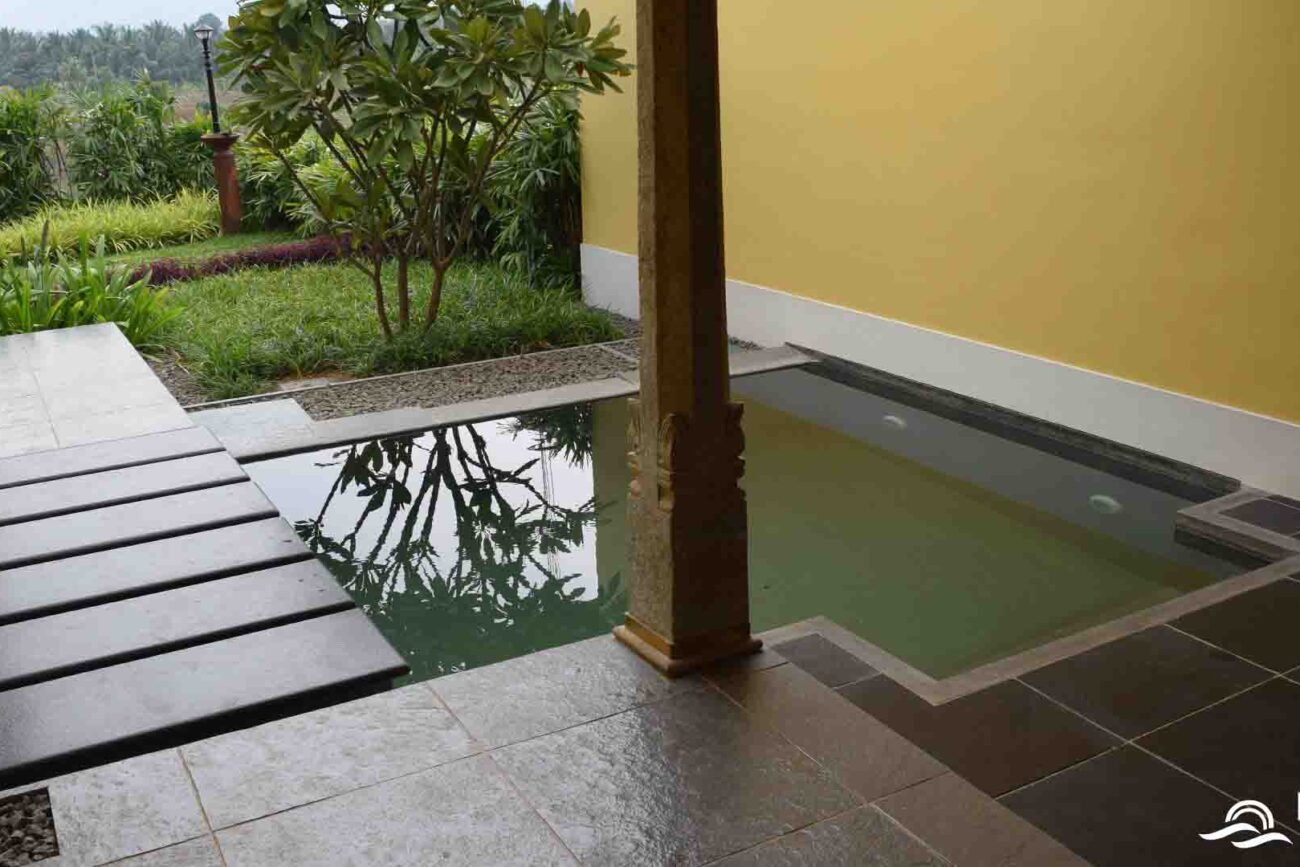

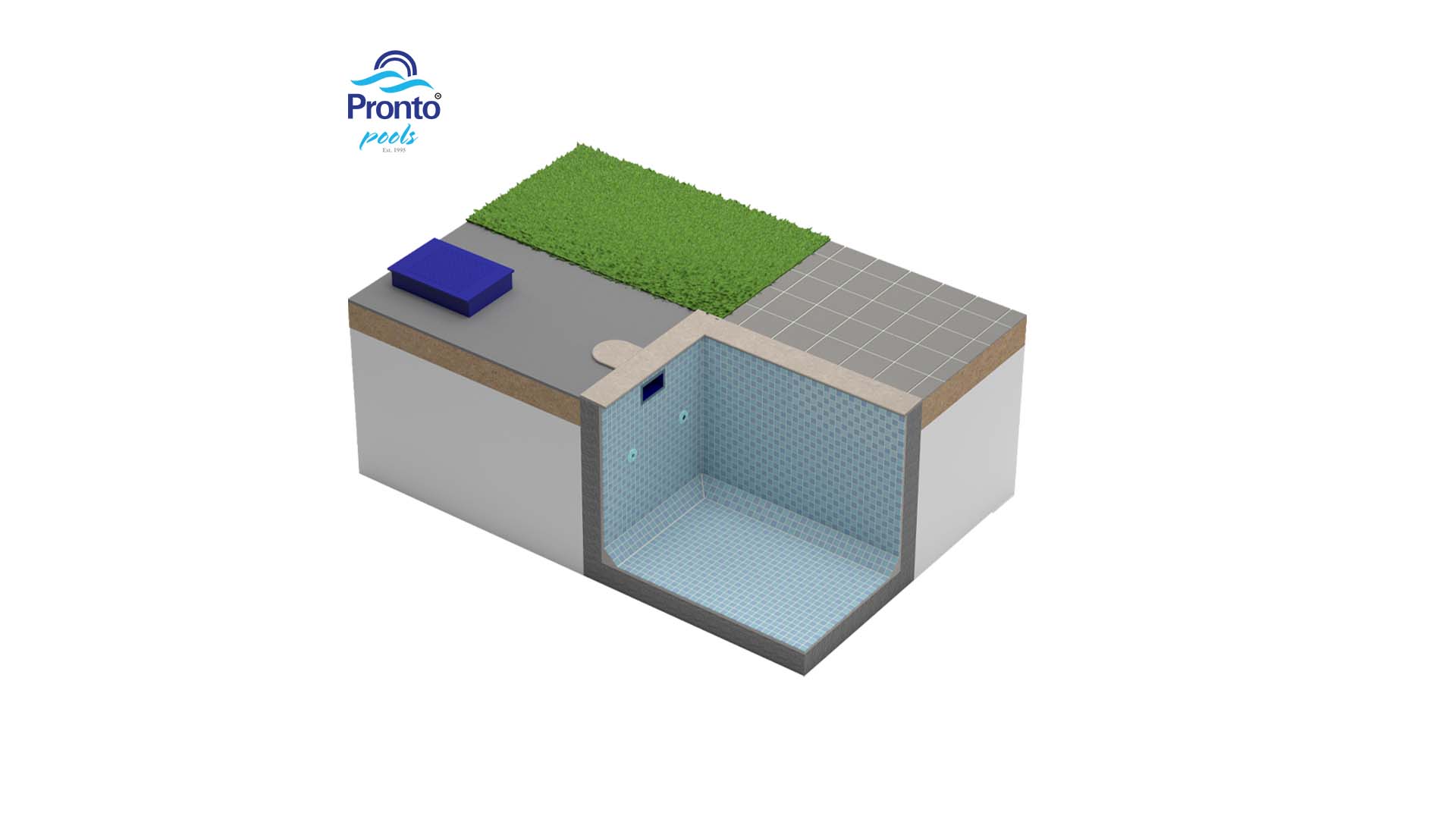

Integrated Filter

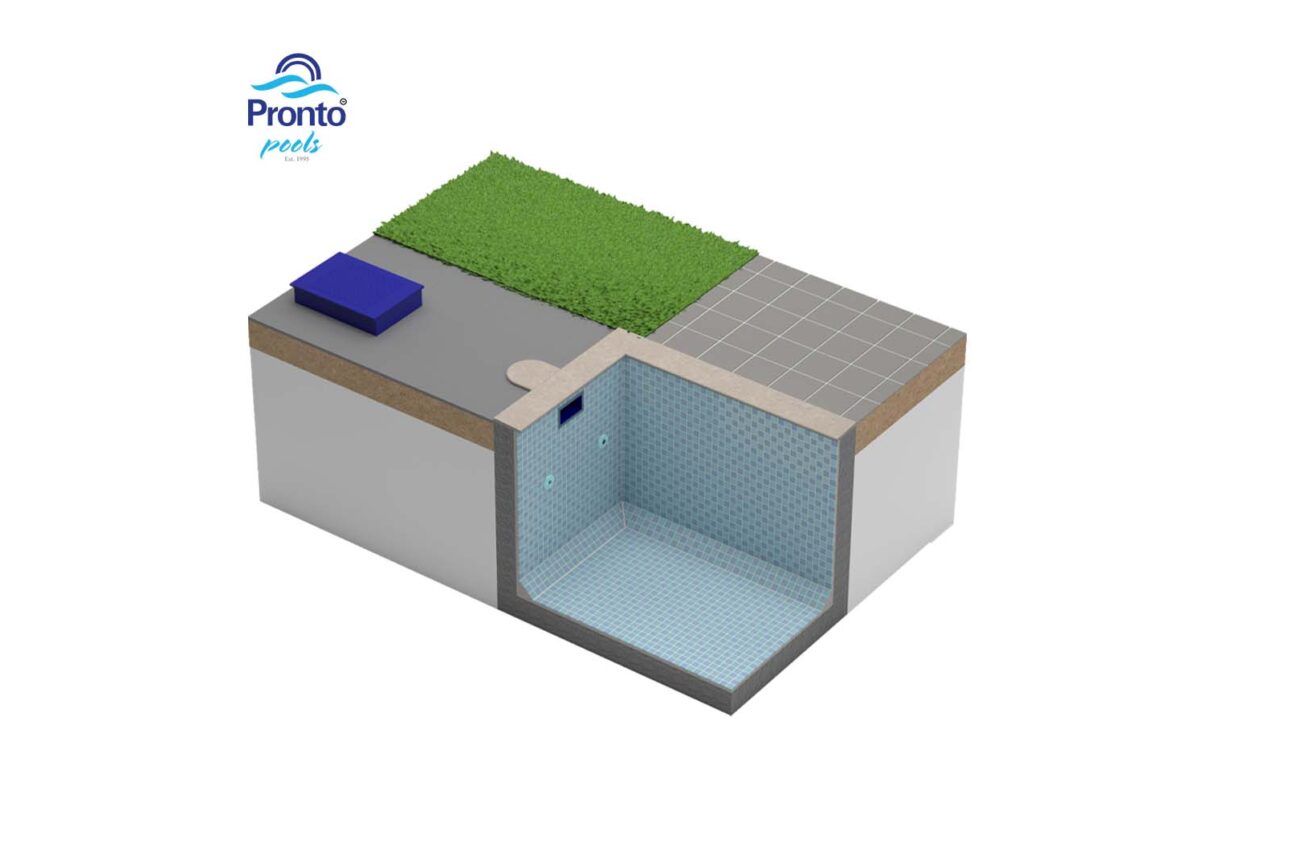

Integrated Filter (a product of Pronto pools)

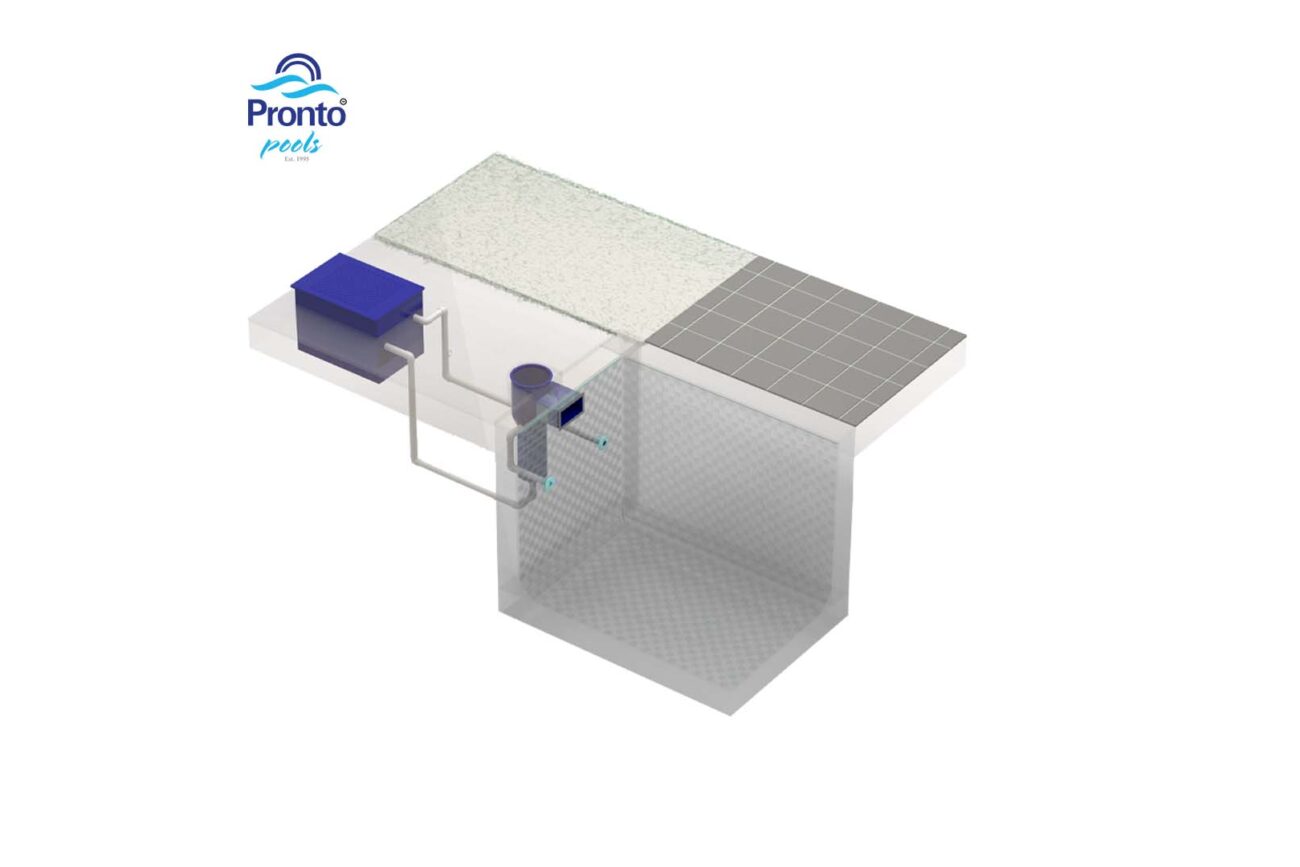

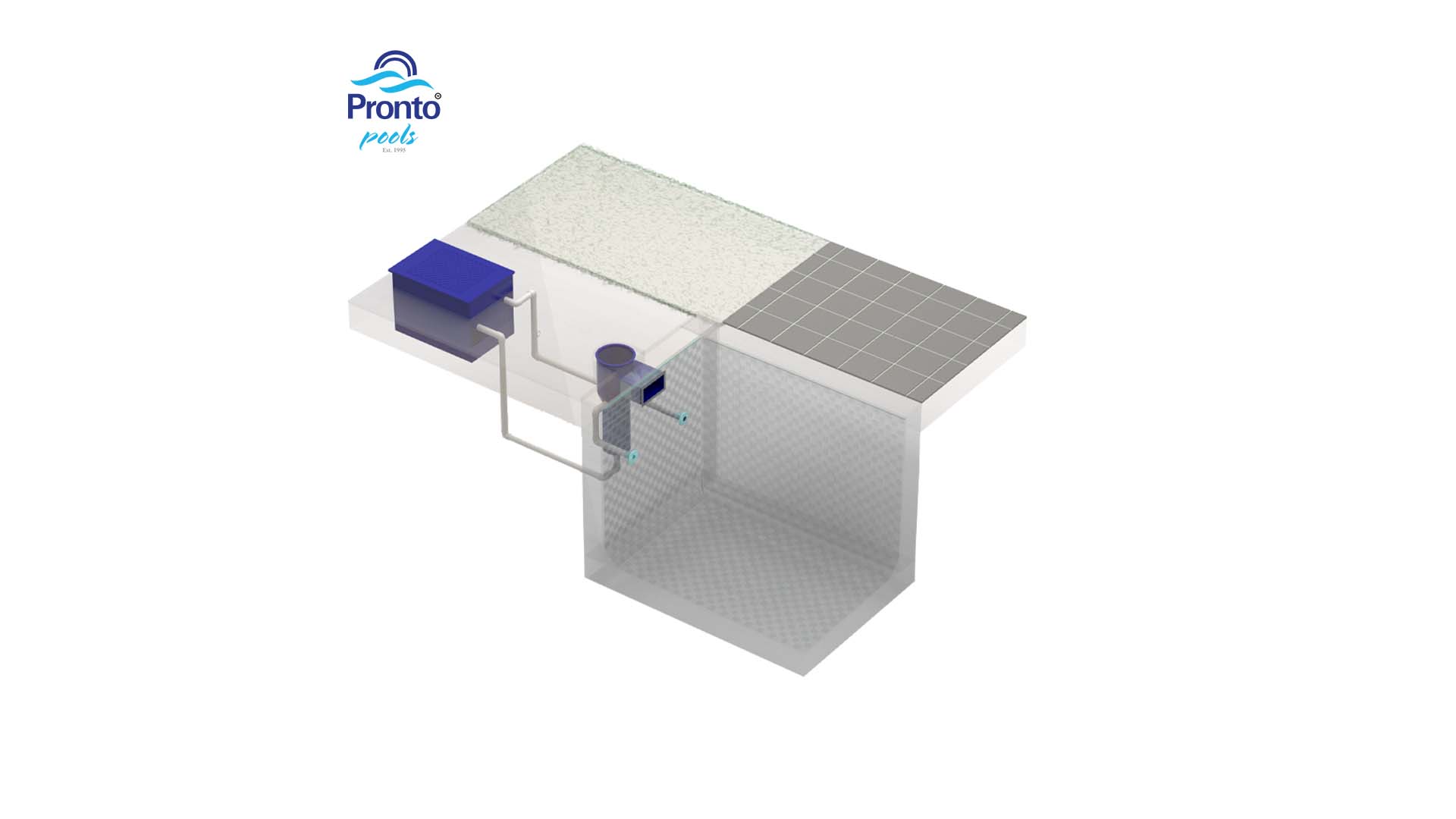

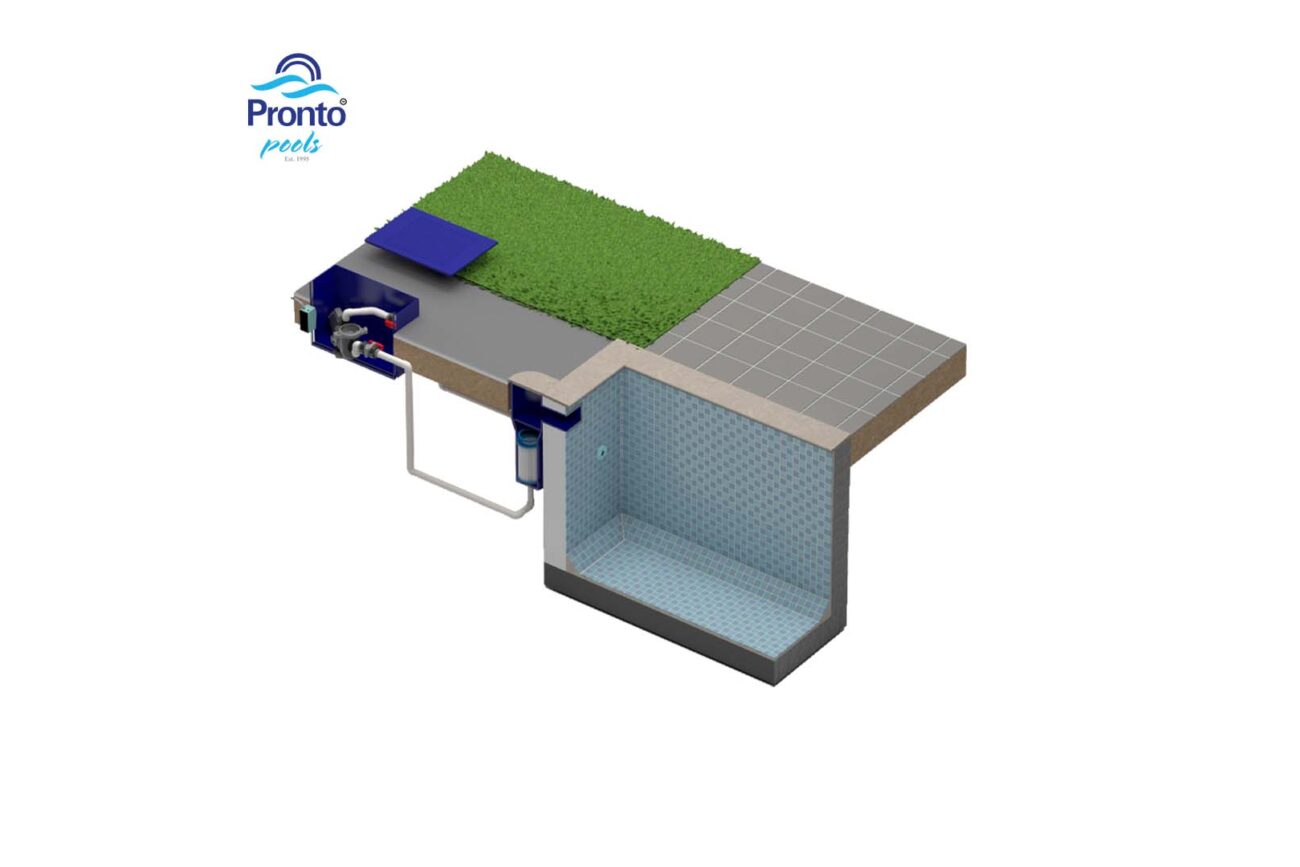

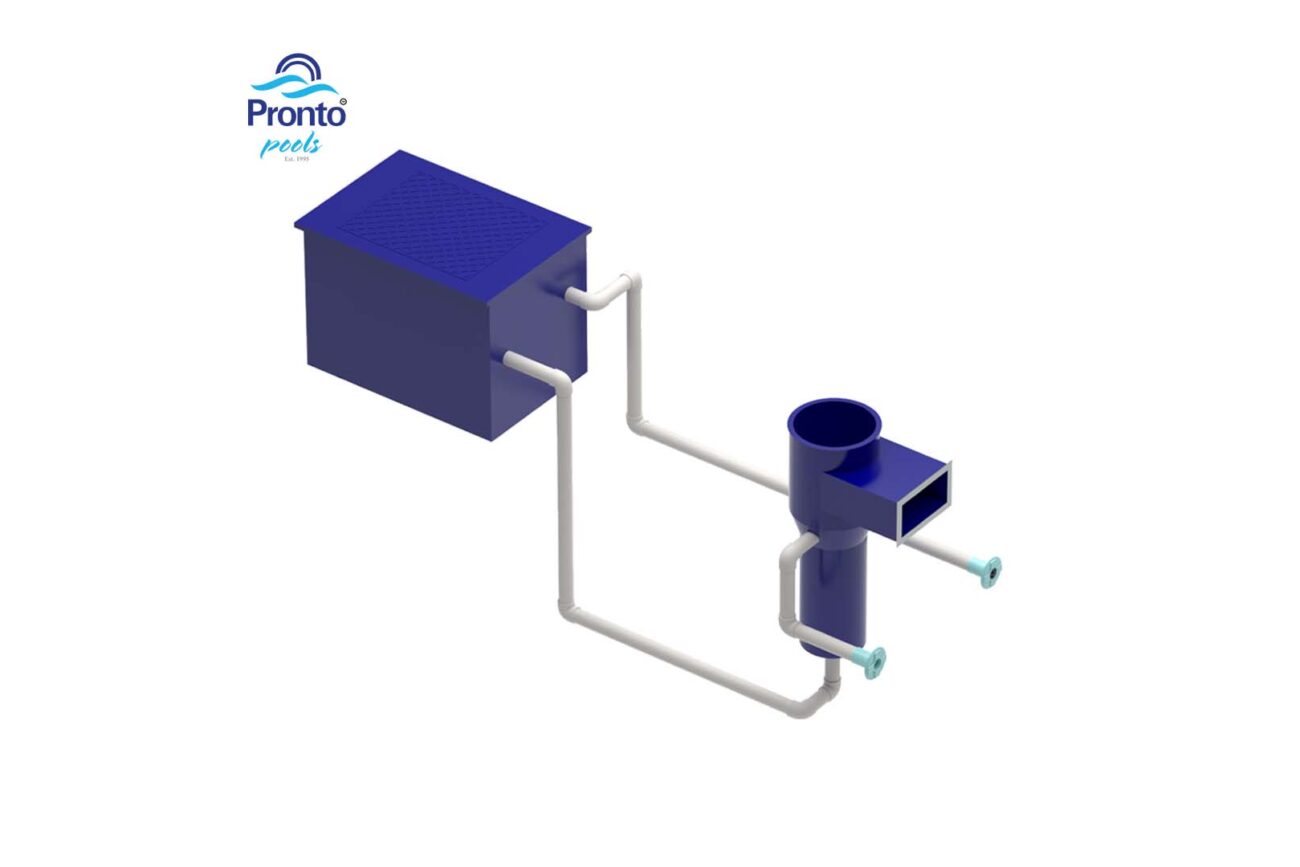

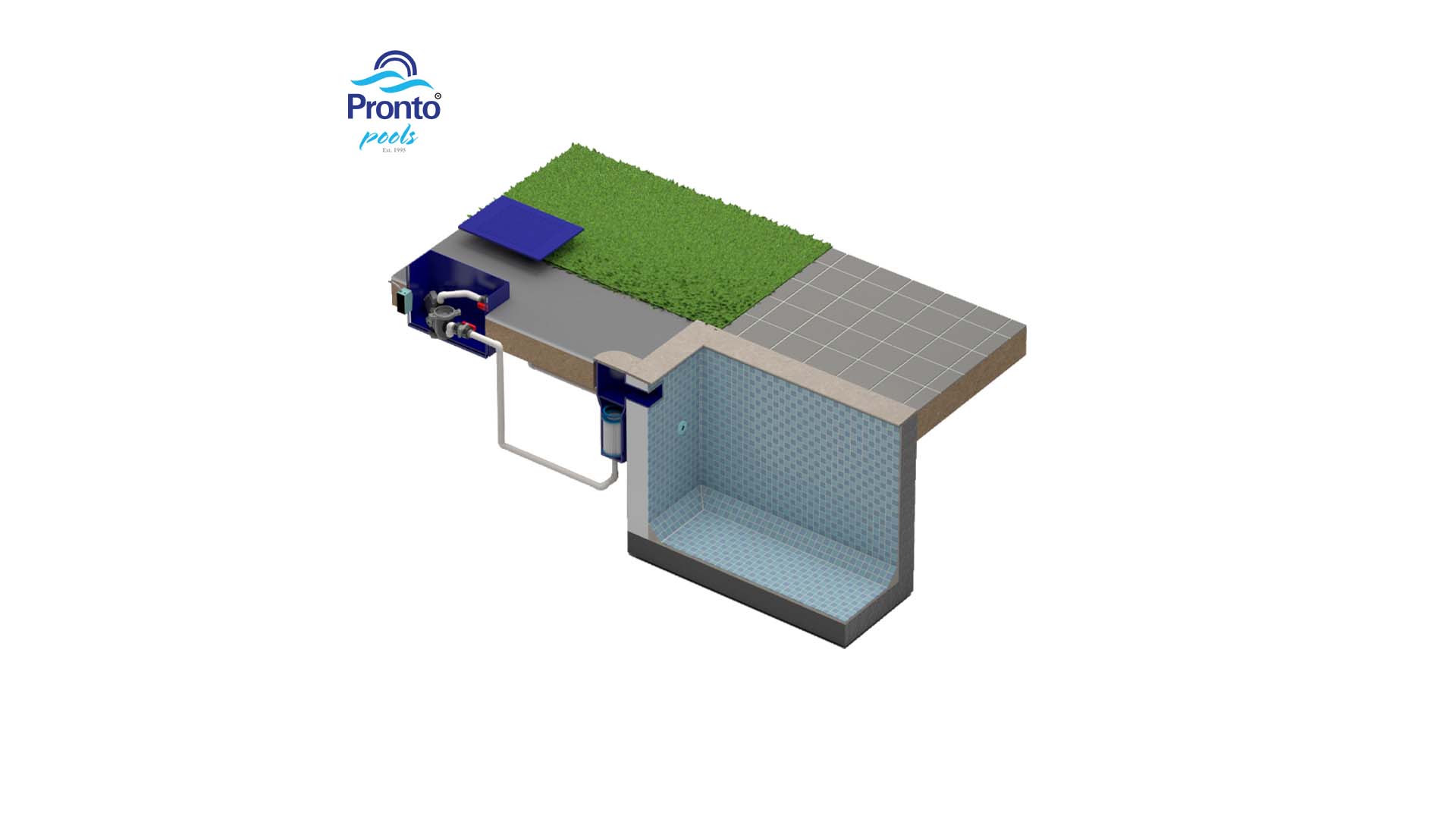

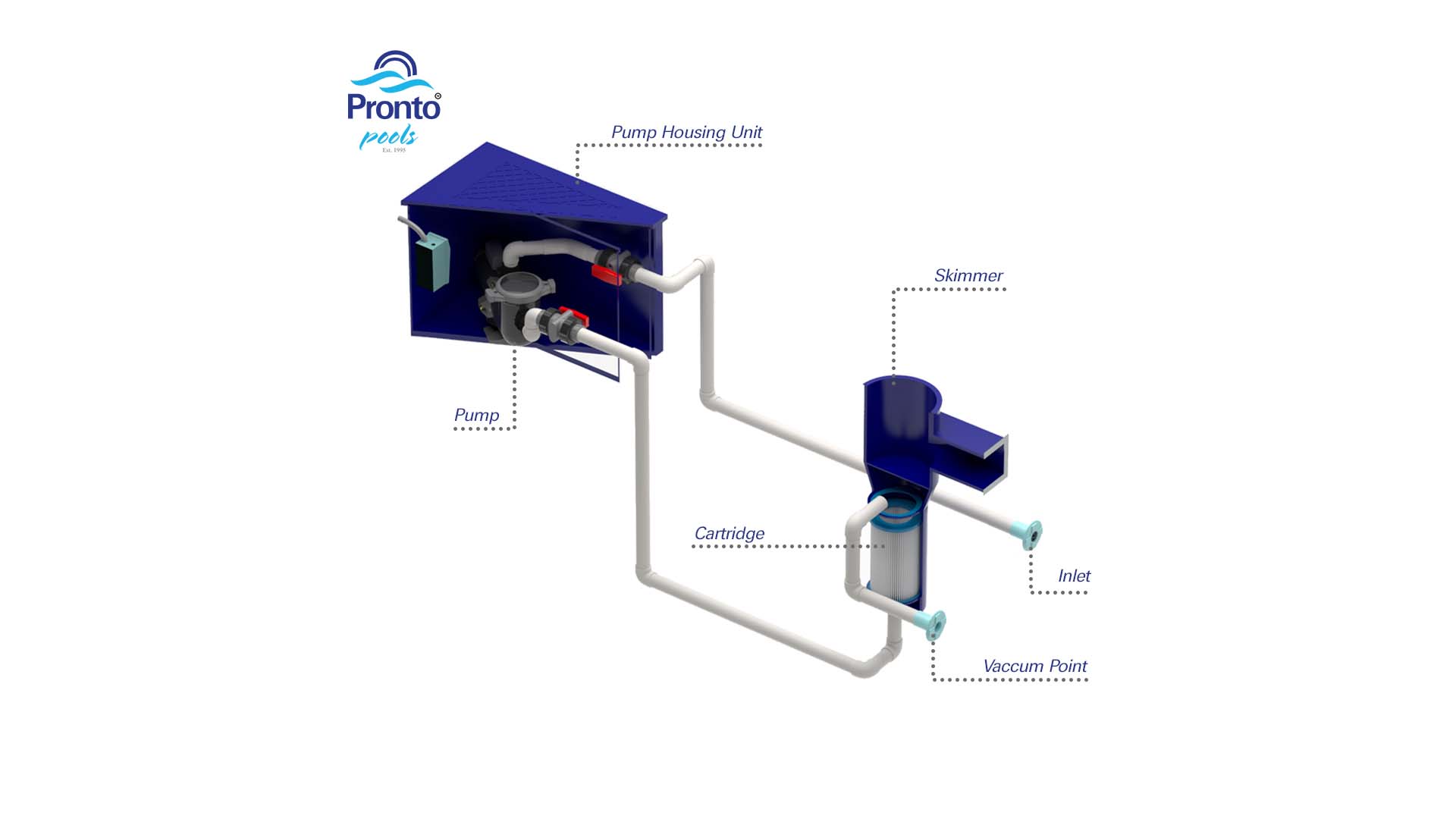

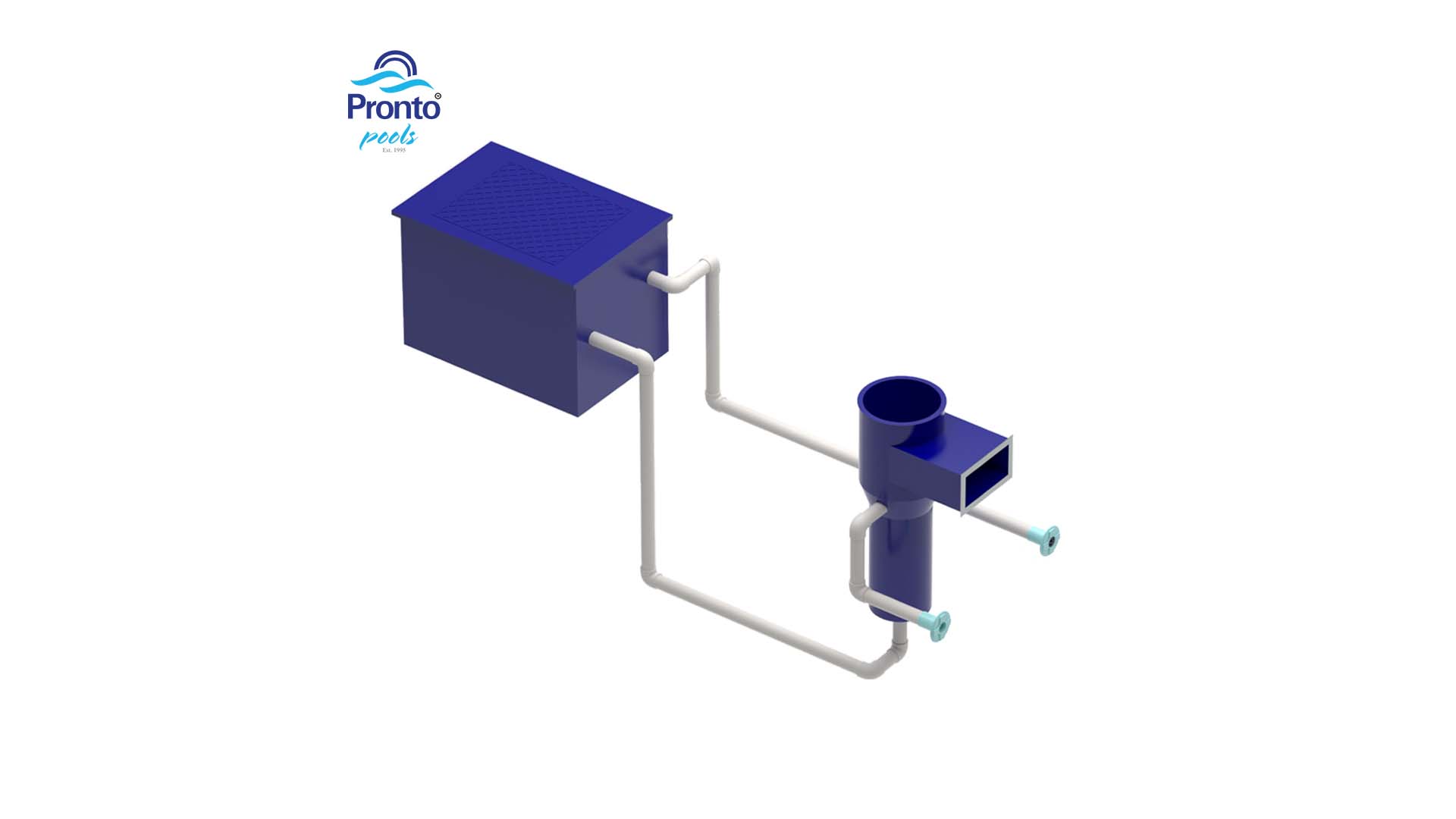

The integrated filter is a compact filtration system where a cartridge filter is housed inside a skimmer, paired with a separate FRP (Fiber Reinforced Plastic) unit for the pump. Designed for quick installation and efficient filtration, it’s ideal for small residential pools and plunge pools. This setup is perfect when you need a simple solution and want to avoid complex plumbing or when retrofitting pools without existing skimmer provisions.
Pros:
- Quick Installation: Minimal setup time, perfect for fast projects and tight timelines.
- Compact Design: Takes up very little space; ideal for small pools.
- FRP Housing: Durable, corrosion-resistant material ensures long service life.
- Retrofit Friendly: Can be installed easily even if skimmer provision wasn’t initially made.
- Low Maintenance: Easy access to cartridge filters for cleaning and replacement.
- Efficient Filtration: 12m³/h capacity with cartridge filters (25µ/4.5m²).
Cons:
- Limited Capacity: Not suitable for larger pools or pools with high bather loads.
- Manual Cleaning Needed: Cartridge filters require regular manual cleaning.
- Separate Units: Pump and filter are not combined, requiring more layout planning.
- Not Fully Concealed: Though compact, the units are still partially visible.
Is Integrated Filter Right for Your Pool?
If you’re building or upgrading a small to medium-sized pool and want a simple, reliable, and cost-effective filtration system, an integrated filter is a solid choice. It’s particularly useful for retrofits and quick installs where plumbing options are limited.
For larger pools or commercial applications, consider a more powerful multi-stage filtration setup.
Still not sure? Reach out to Pronto Pools — our team will help you choose the right system for your pool size and layout.

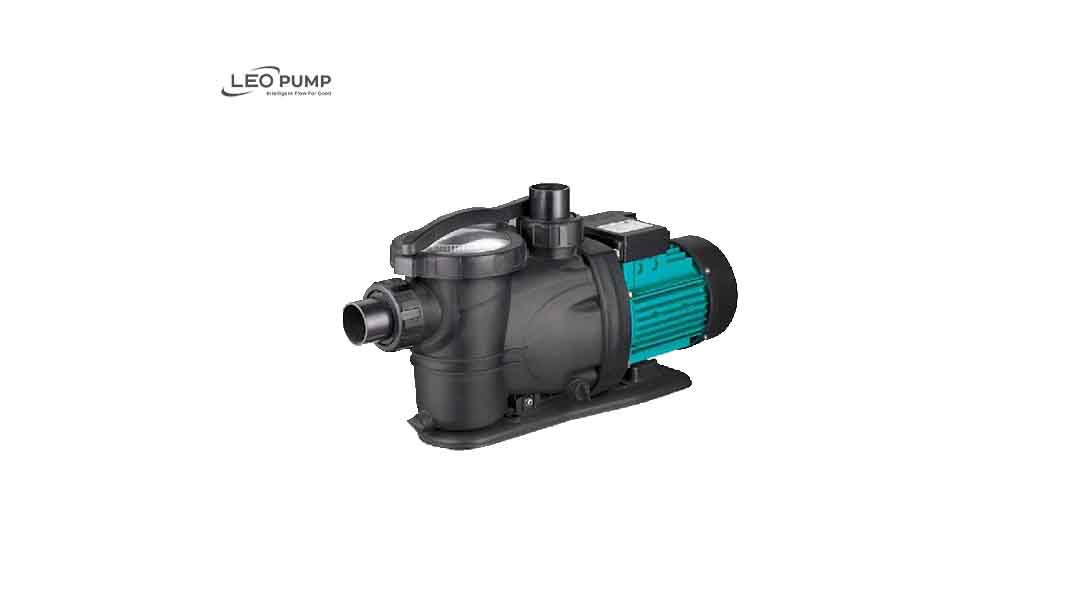

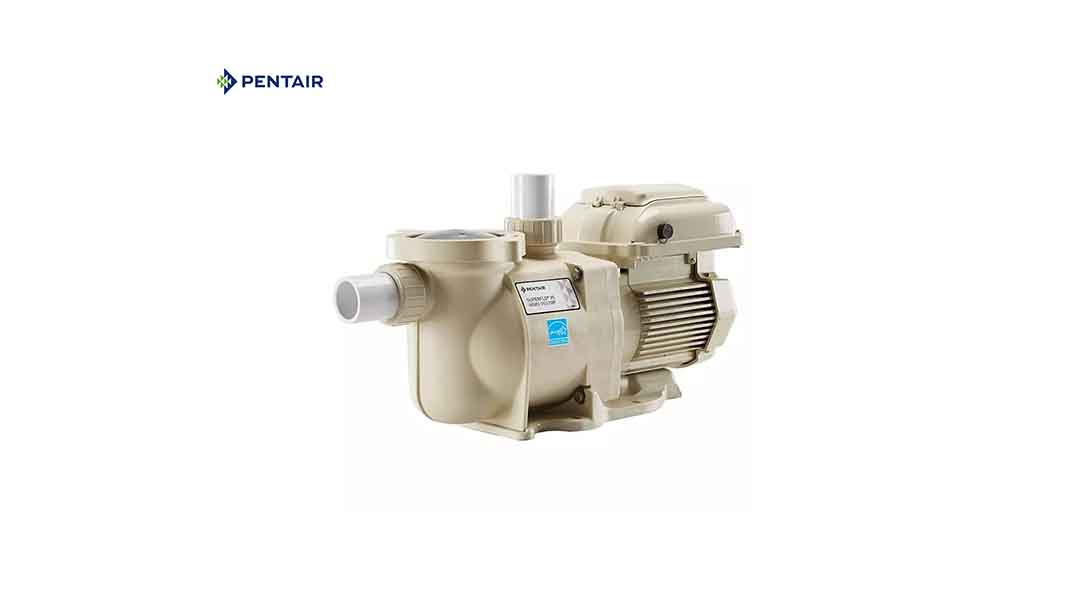

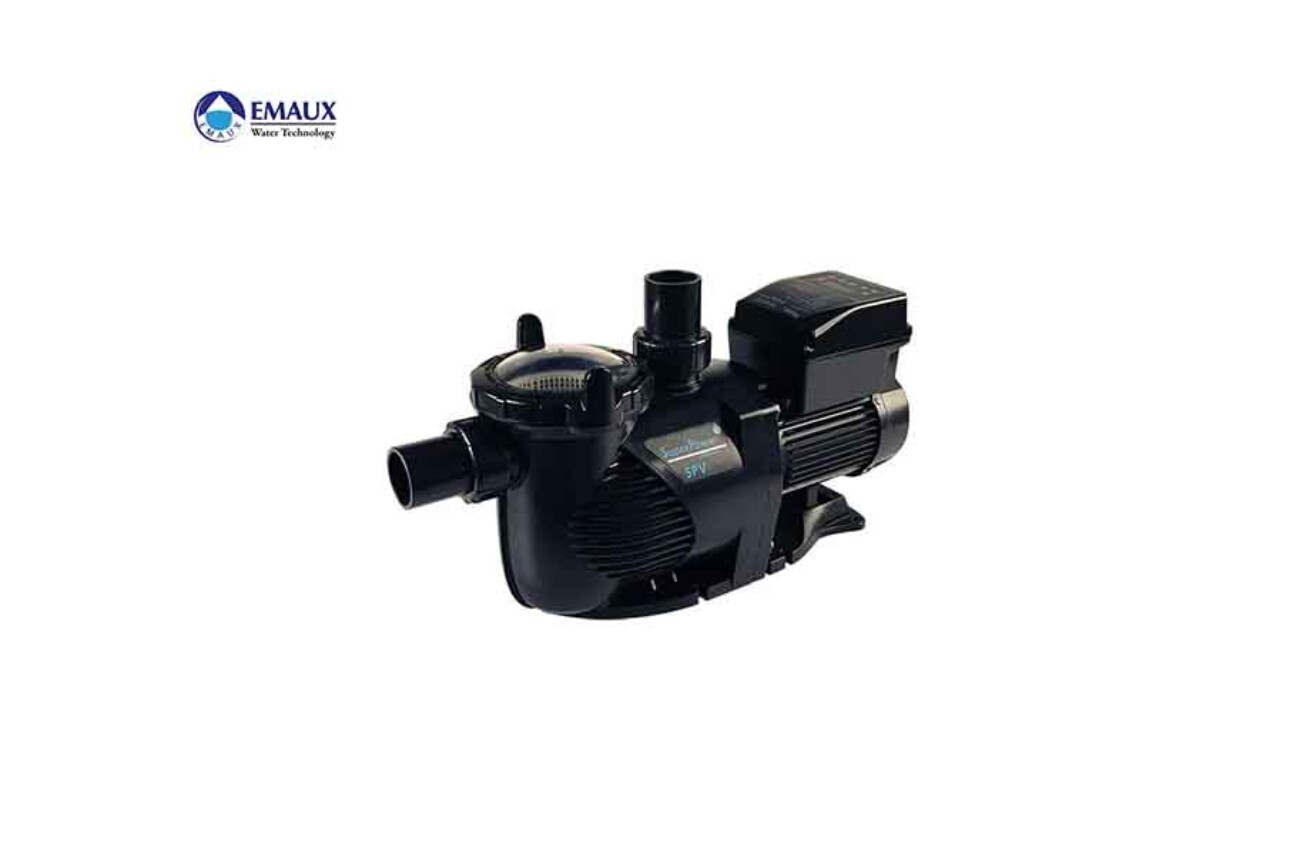

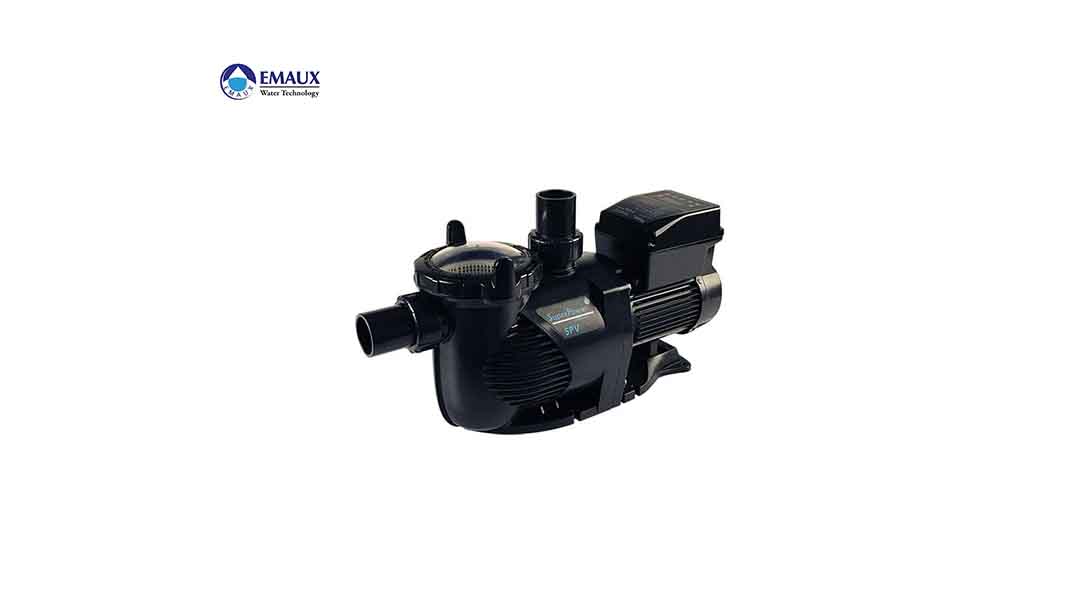

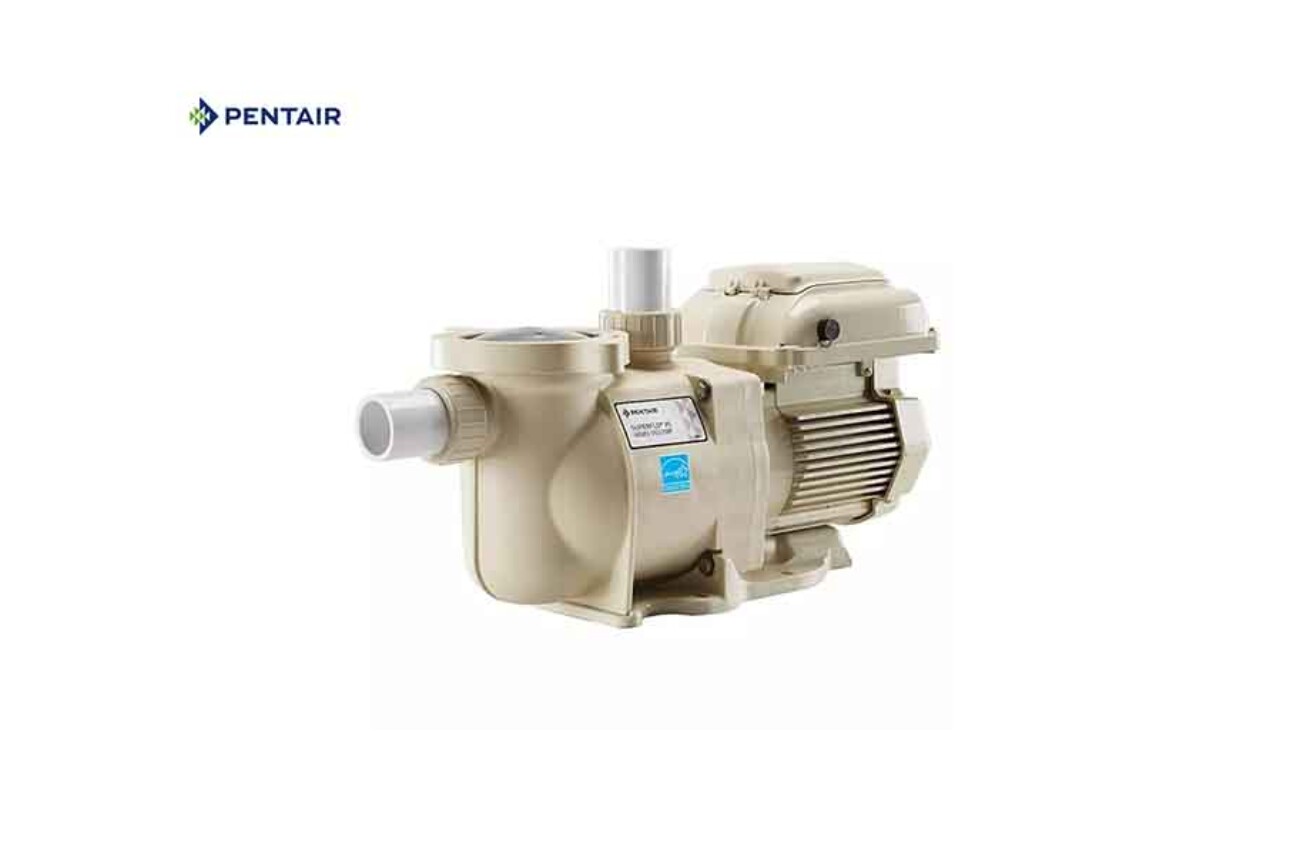

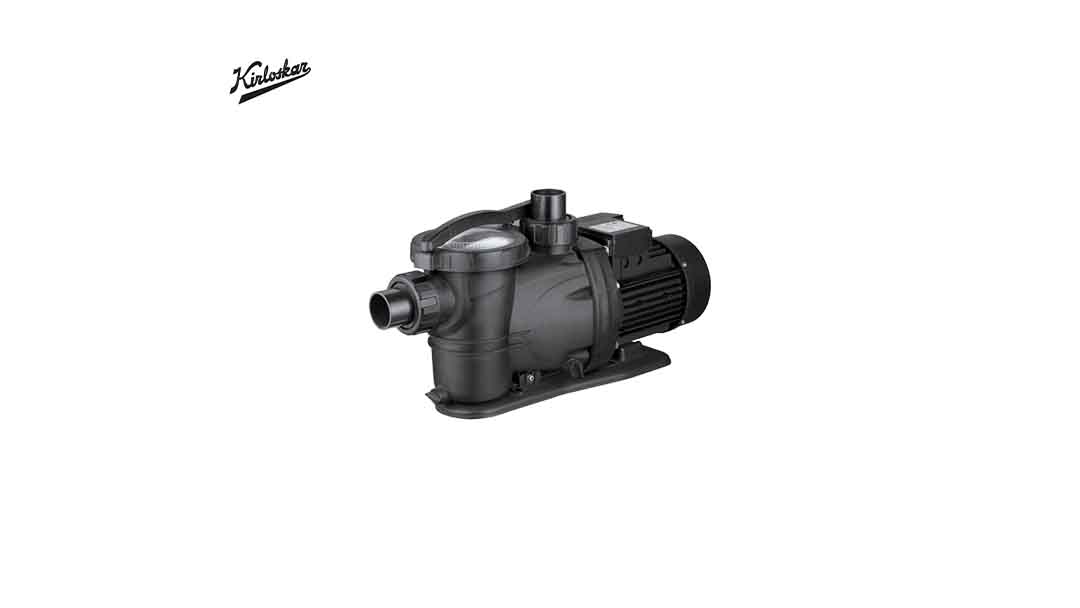

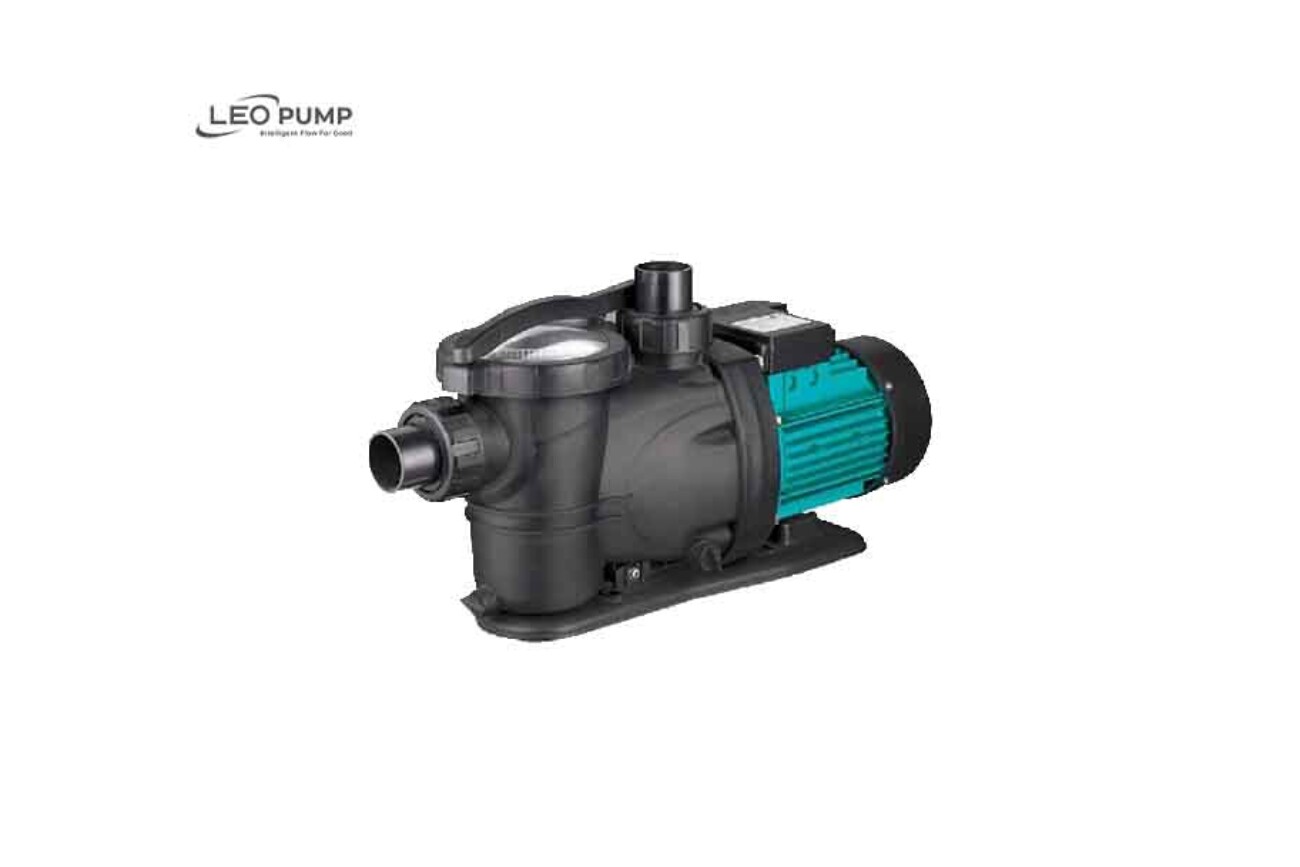

Swimming Pool Pump

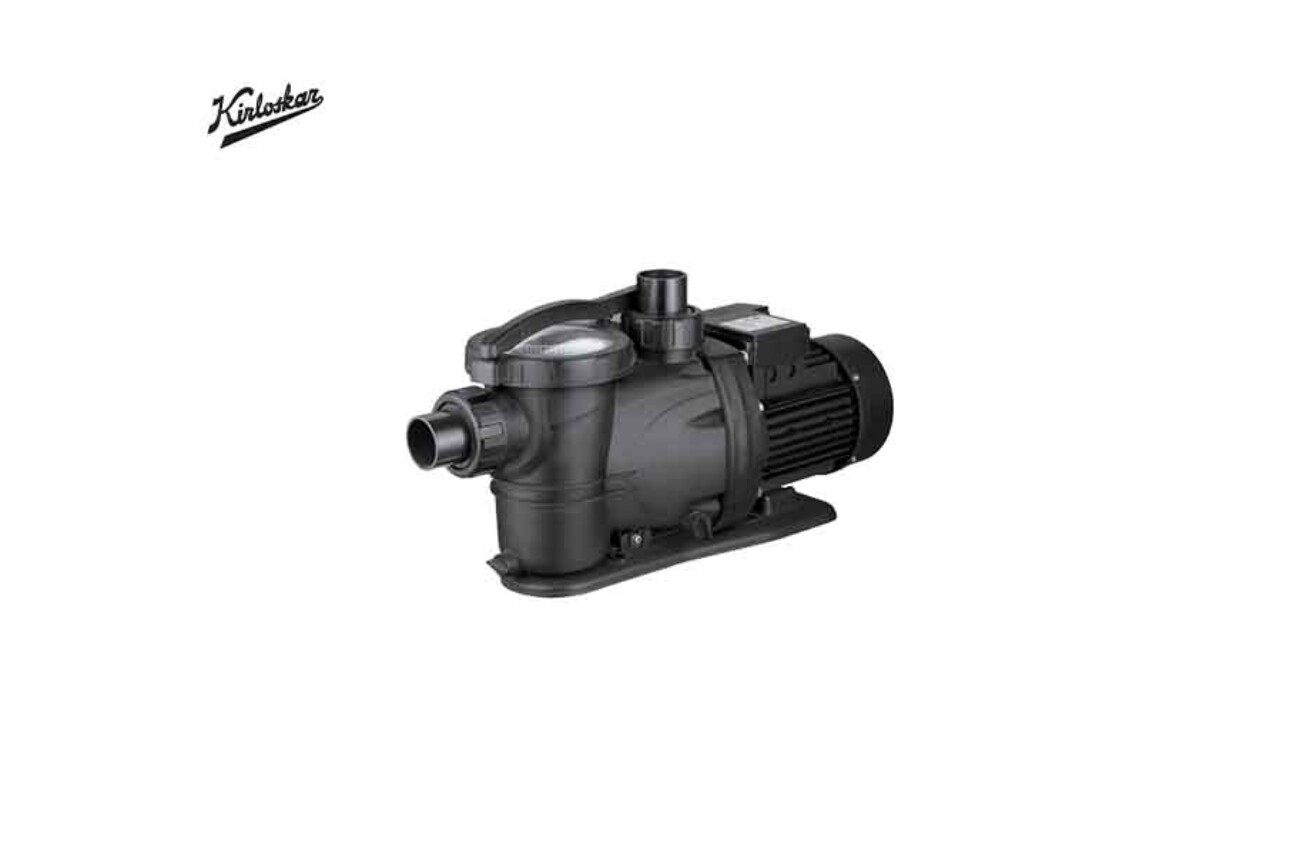

The pool pump is the powerhouse of your pool’s circulation system—it pulls water from the pool, pushes it through the filtration and sanitization systems, and returns clean water back to the pool. Without a functioning pump, your pool water would quickly become stagnant and unhygienic.
Not all pumps are created equal. While basic single-speed pumps get the job done, they often consume more electricity and run louder. Upgrading to a variable speed pump can make a big difference: it operates at different speeds depending on the task, significantly reducing energy consumption, lowering electricity bills, and extending the lifespan of your equipment. These pumps also run much quieter, making them a great choice for residential settings where noise is a concern.
Whether you’re installing a new pool or upgrading an existing system, investing in the right pump ensures your pool stays clean, efficient, and enjoyable all year round.
BRANDS AVAILABLE WITH US

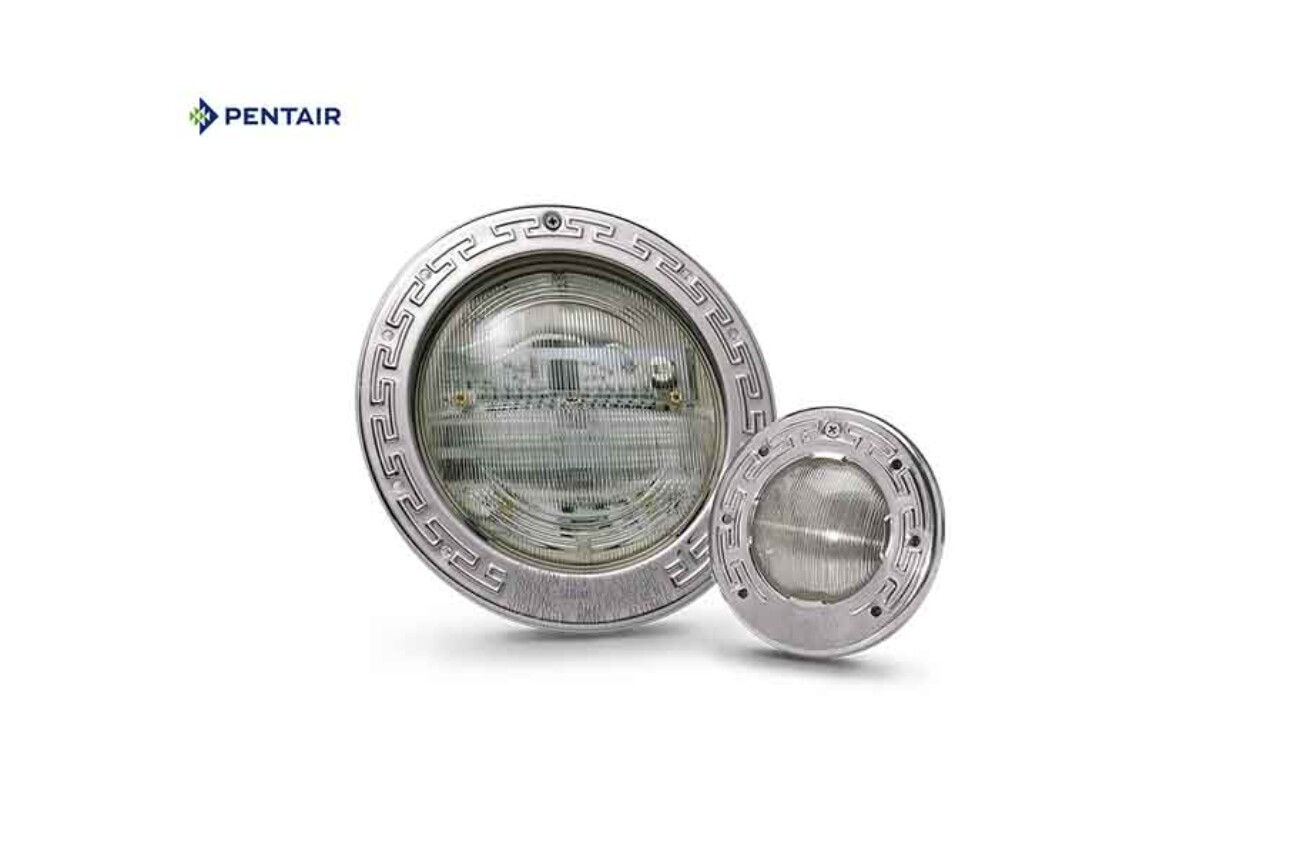

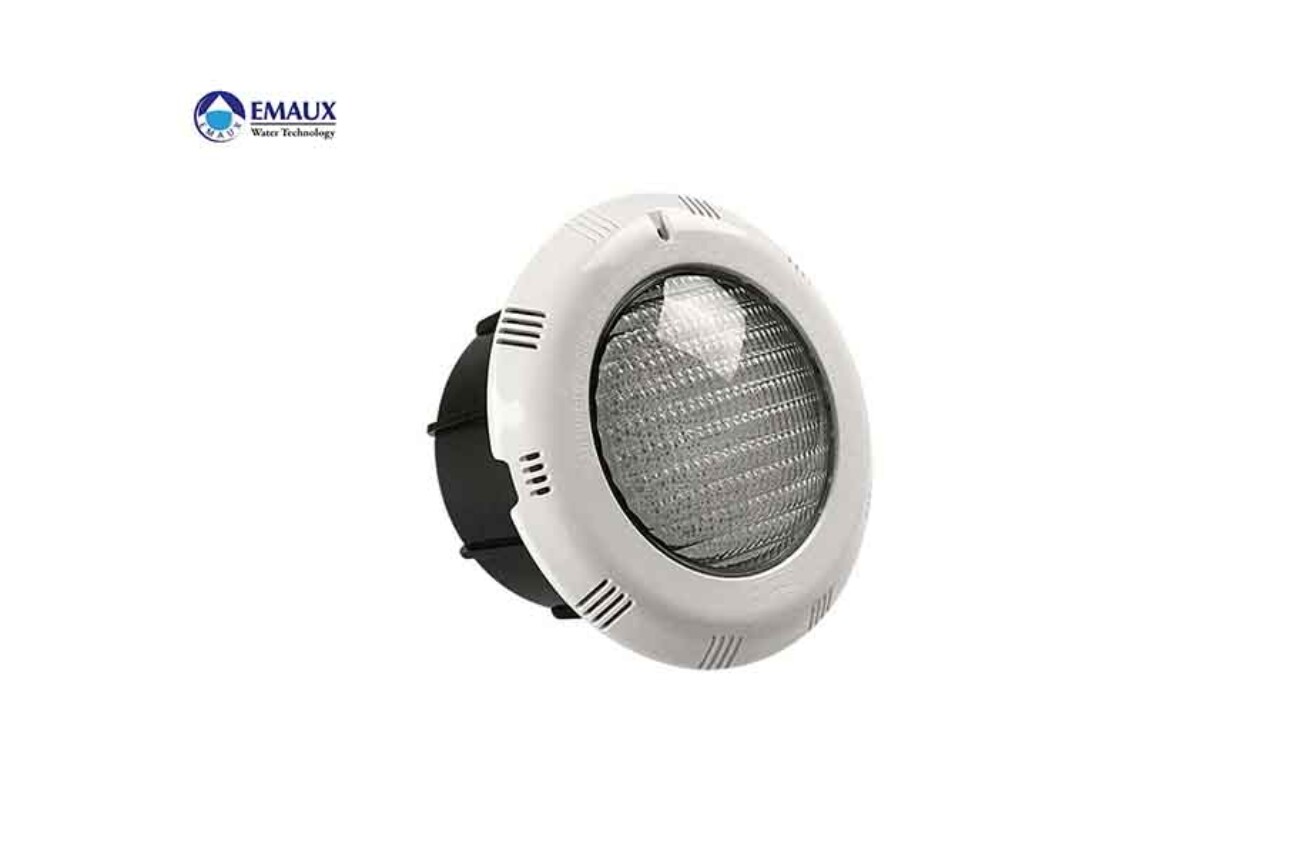

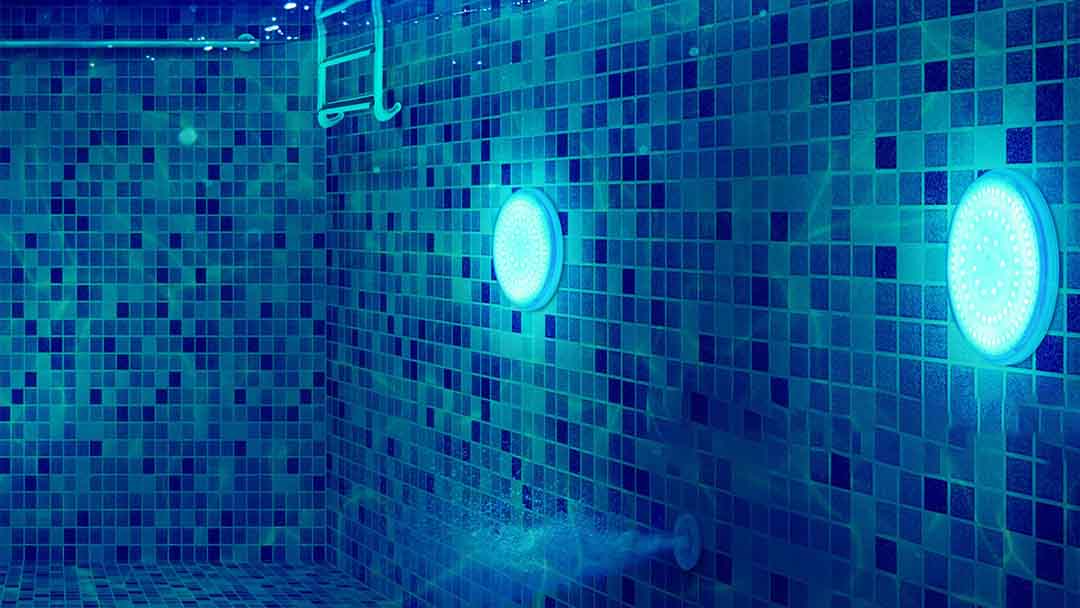

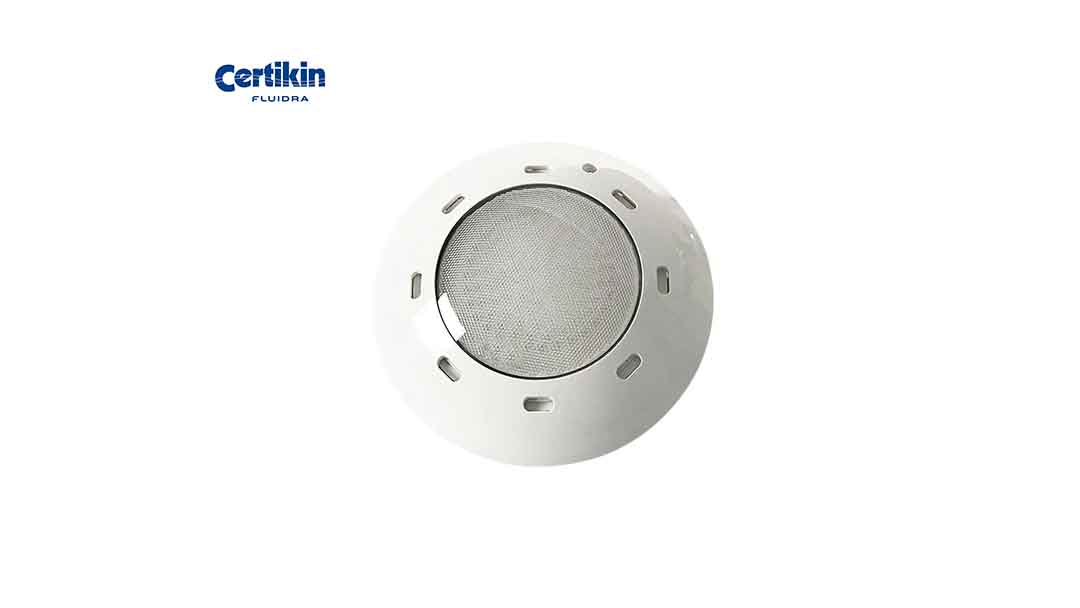

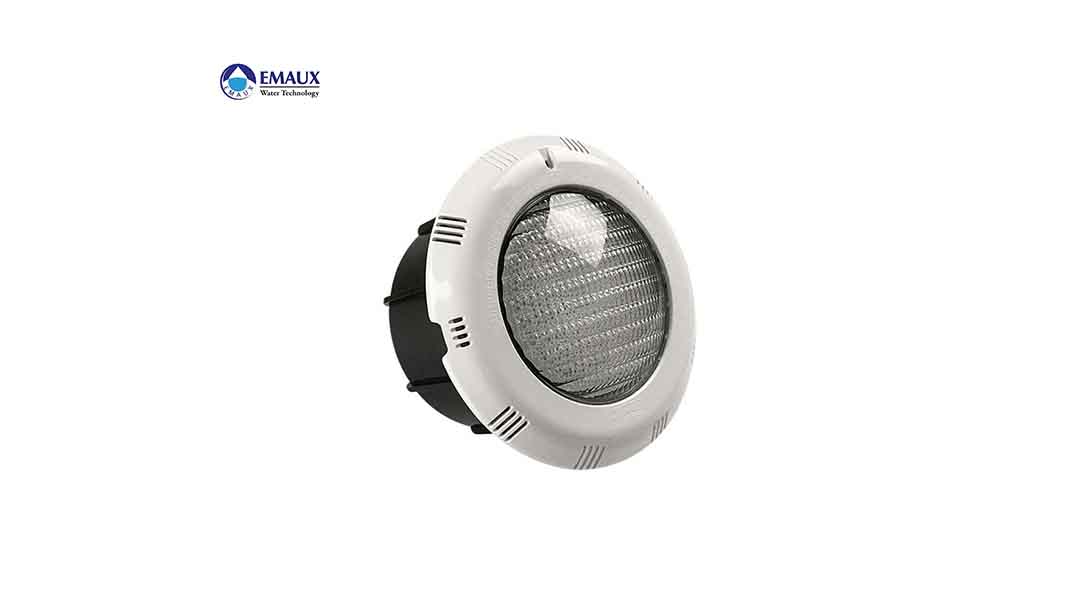

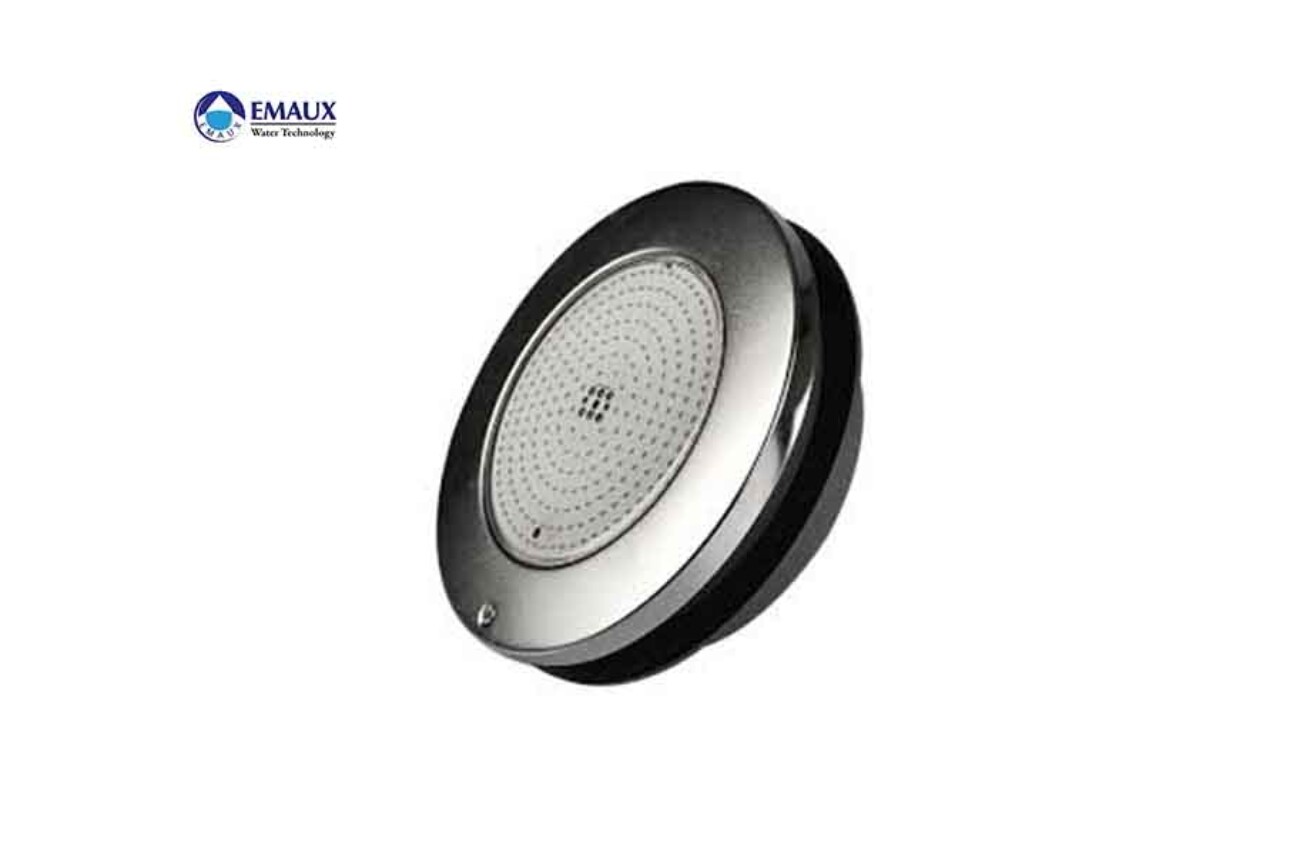

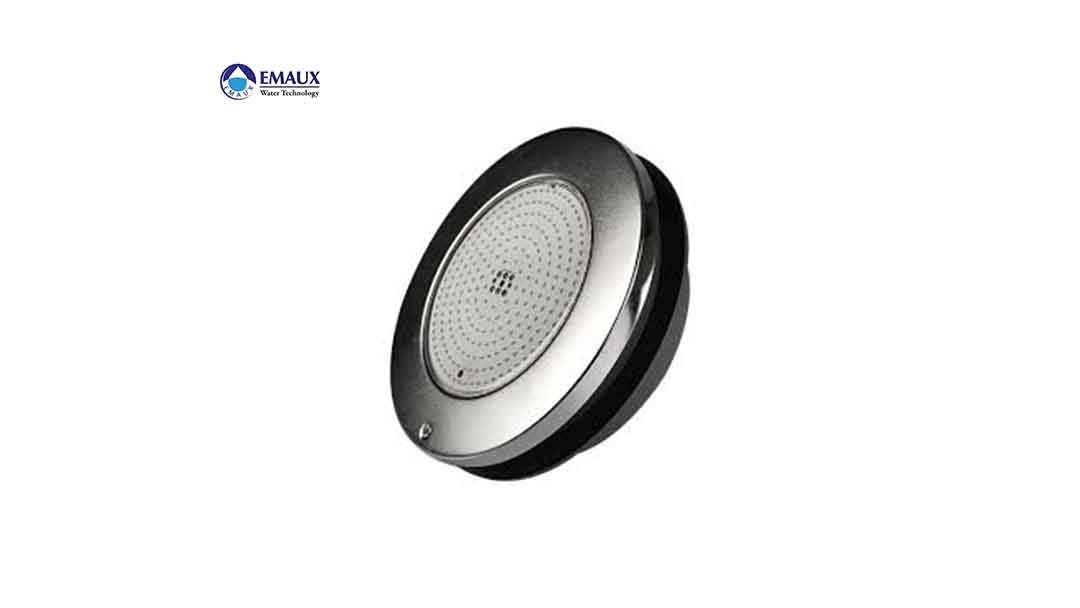

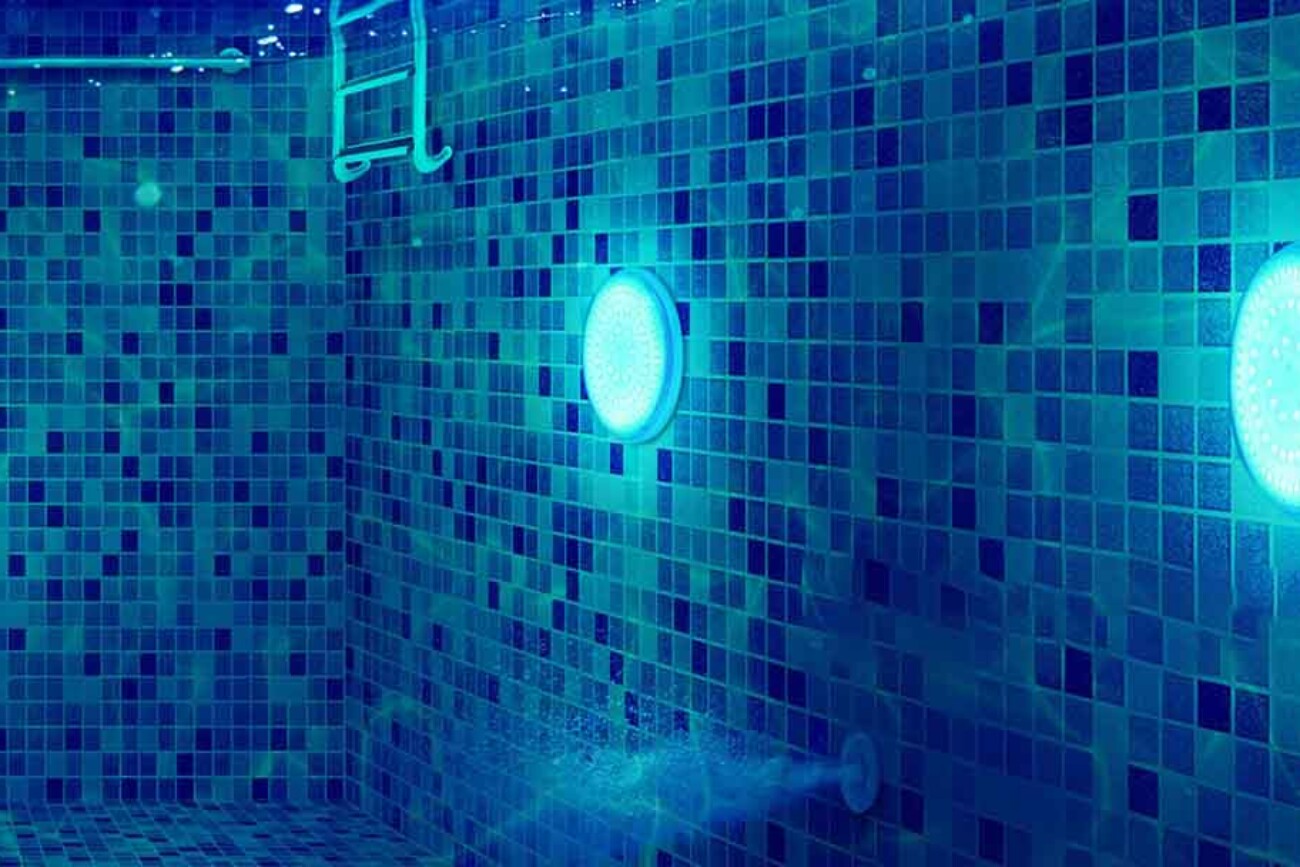

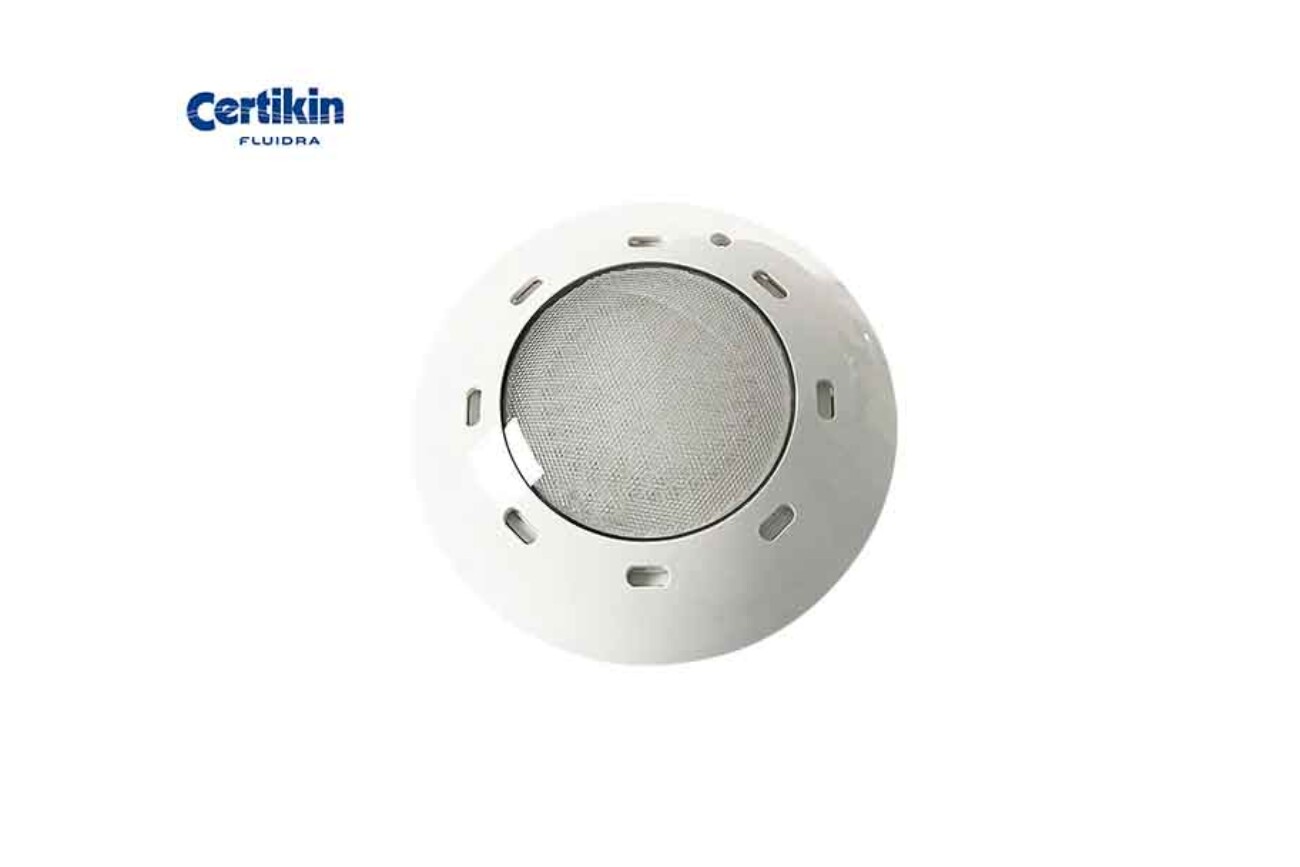

Underwater Pool Lights

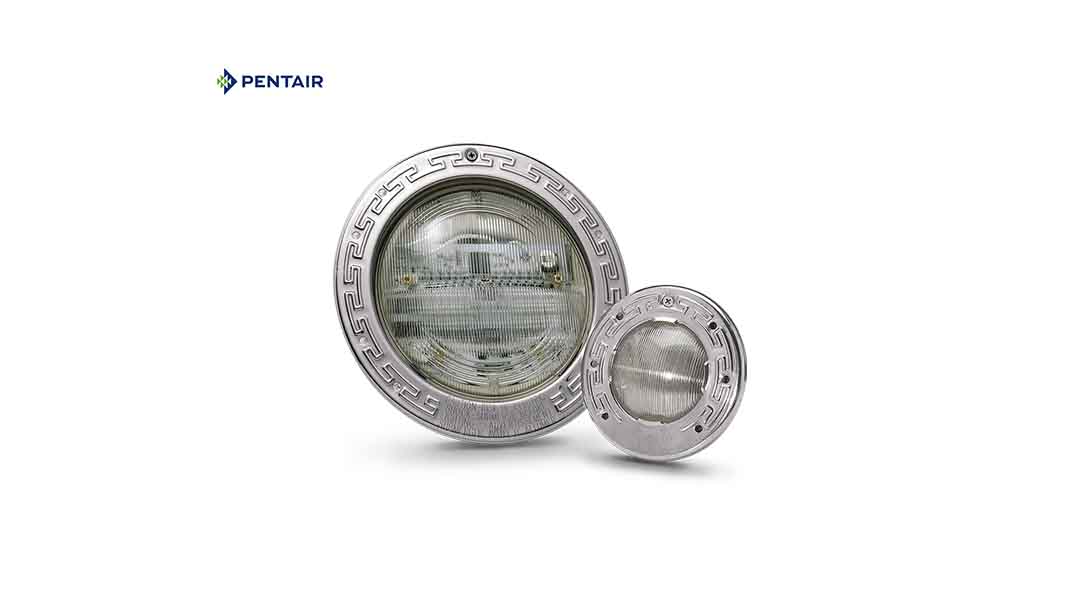

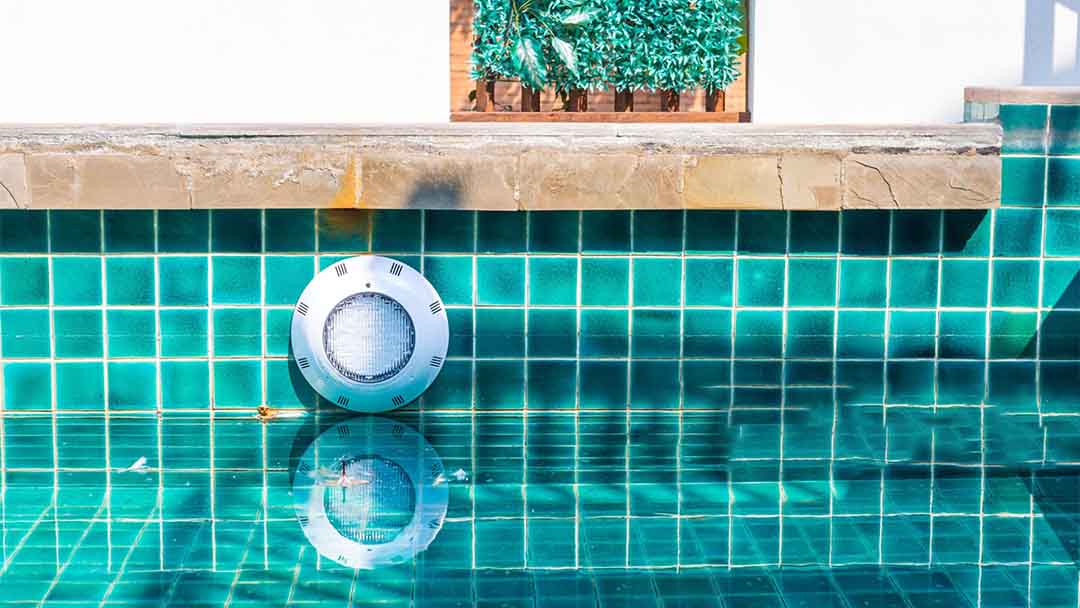

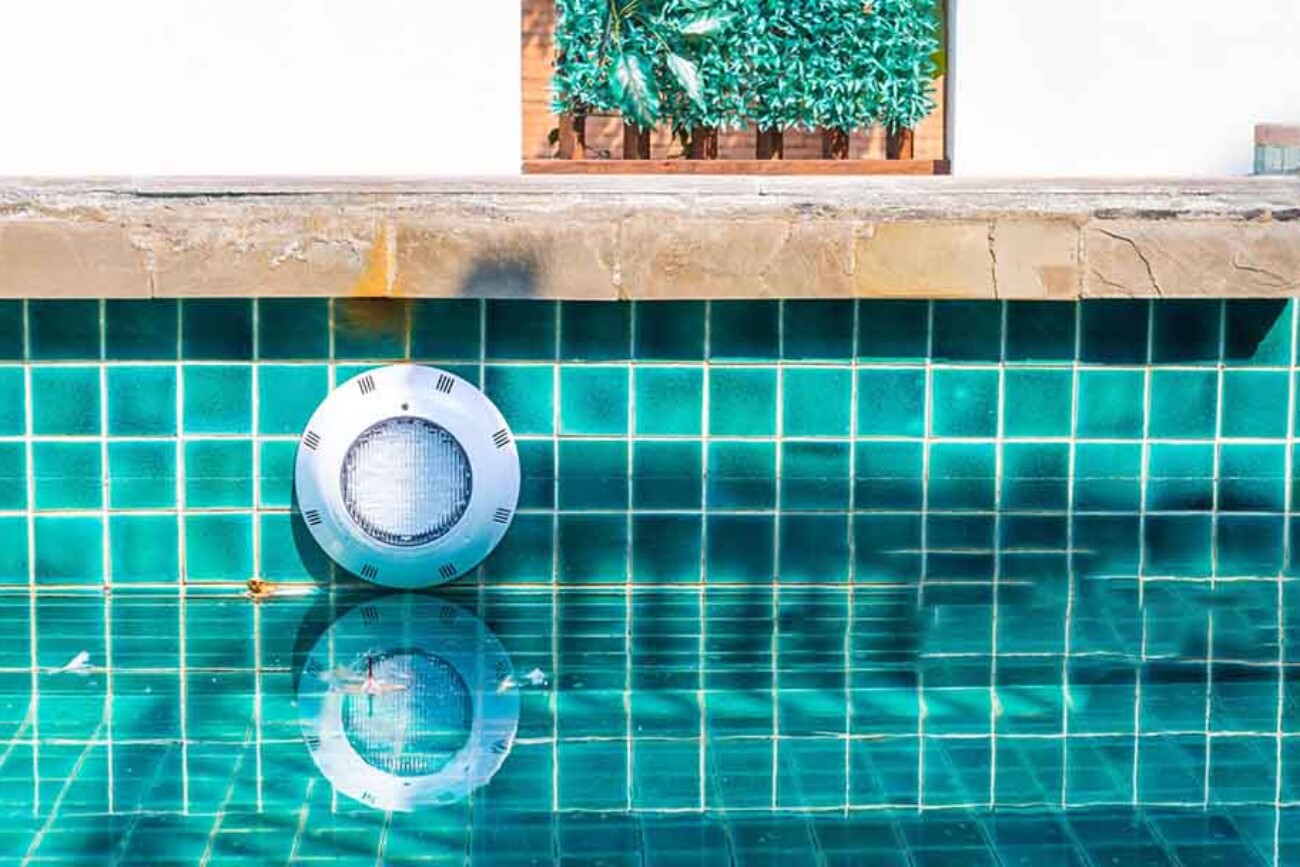

Underwater lights not only illuminate your pool at night but also enhance its ambiance and safety. They transform your pool into a stunning visual feature after sunset, highlighting shapes, steps, and depths that may not be visible in the dark.
Modern LED underwater lights are energy-efficient, long-lasting, and available in single-color or RGB multicolor options, allowing you to create dynamic lighting effects and moods. With remote or app-based controls, you can easily switch colors, set timers, or adjust brightness to suit any occasion.
Beyond beauty, underwater lights improve night-time visibility, reducing the risk of accidents and ensuring a safer swimming experience for everyone.
BRANDS AVAILABLE WITH US
MAIN BASIN FITTINGS
Inlets, Skimmers, Main drain & Vacuum Point

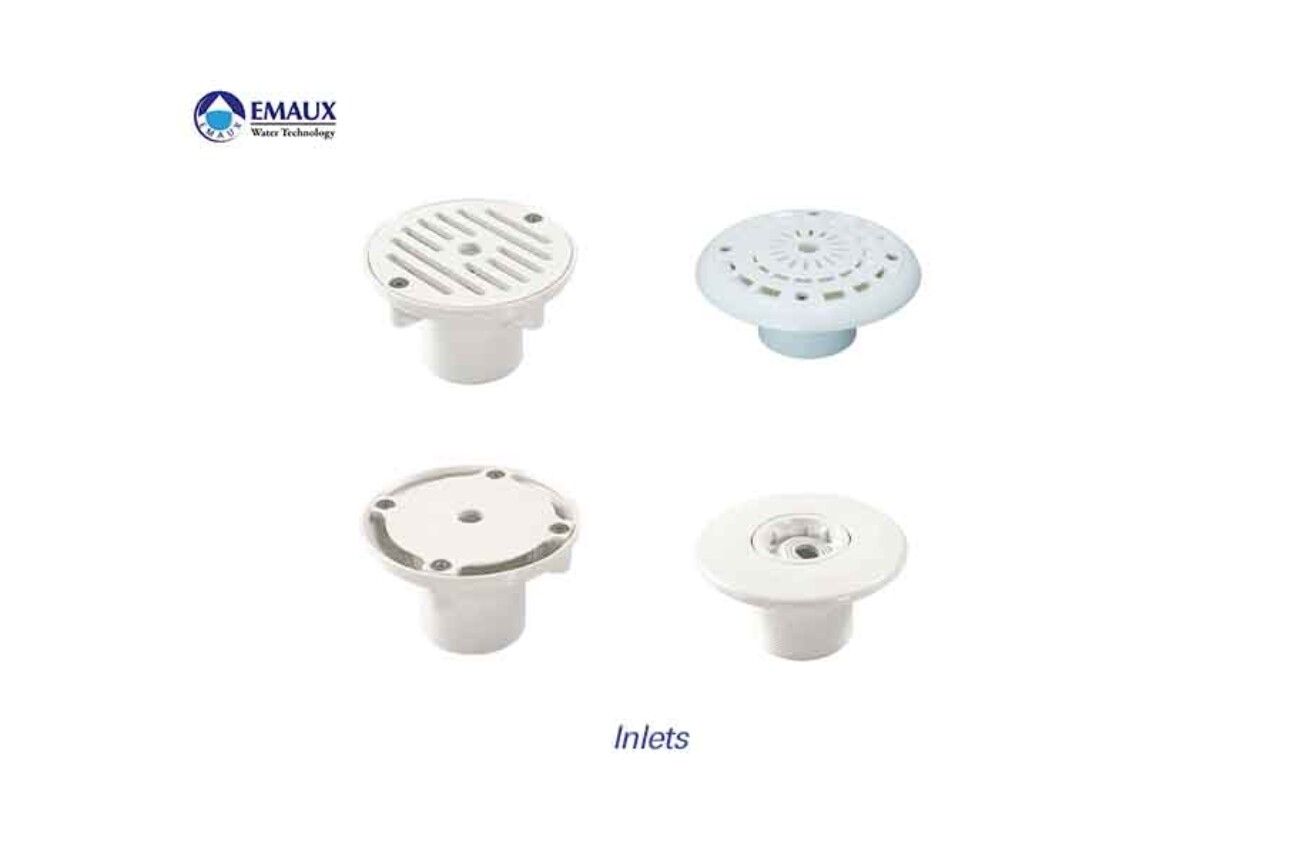

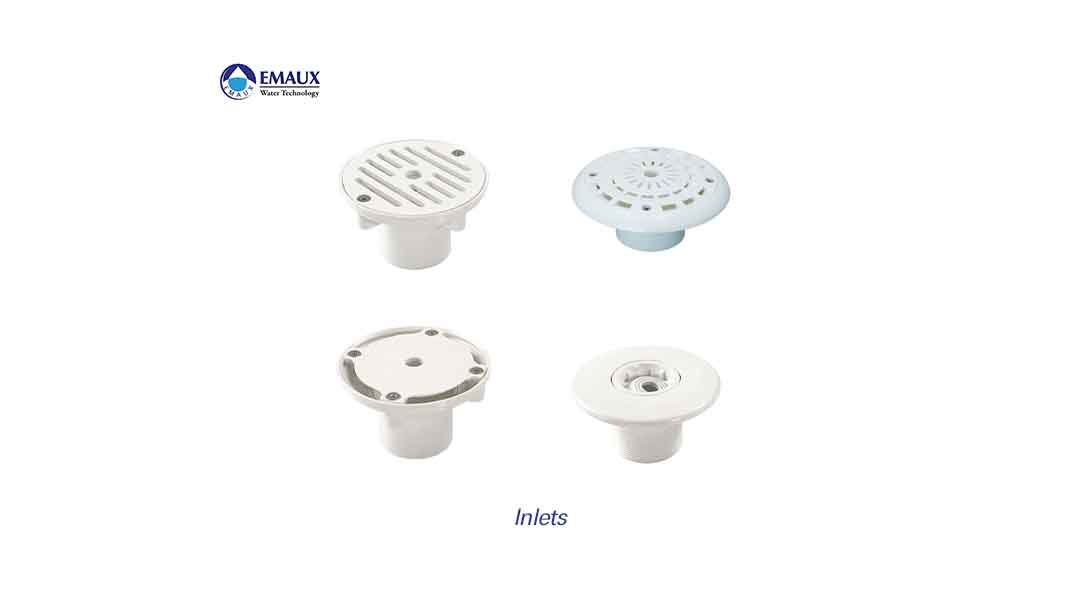

Inlets
- Return points where filtered water is pushed back into the pool.
- Help in circulating water evenly, avoiding dead spots where algae can grow.

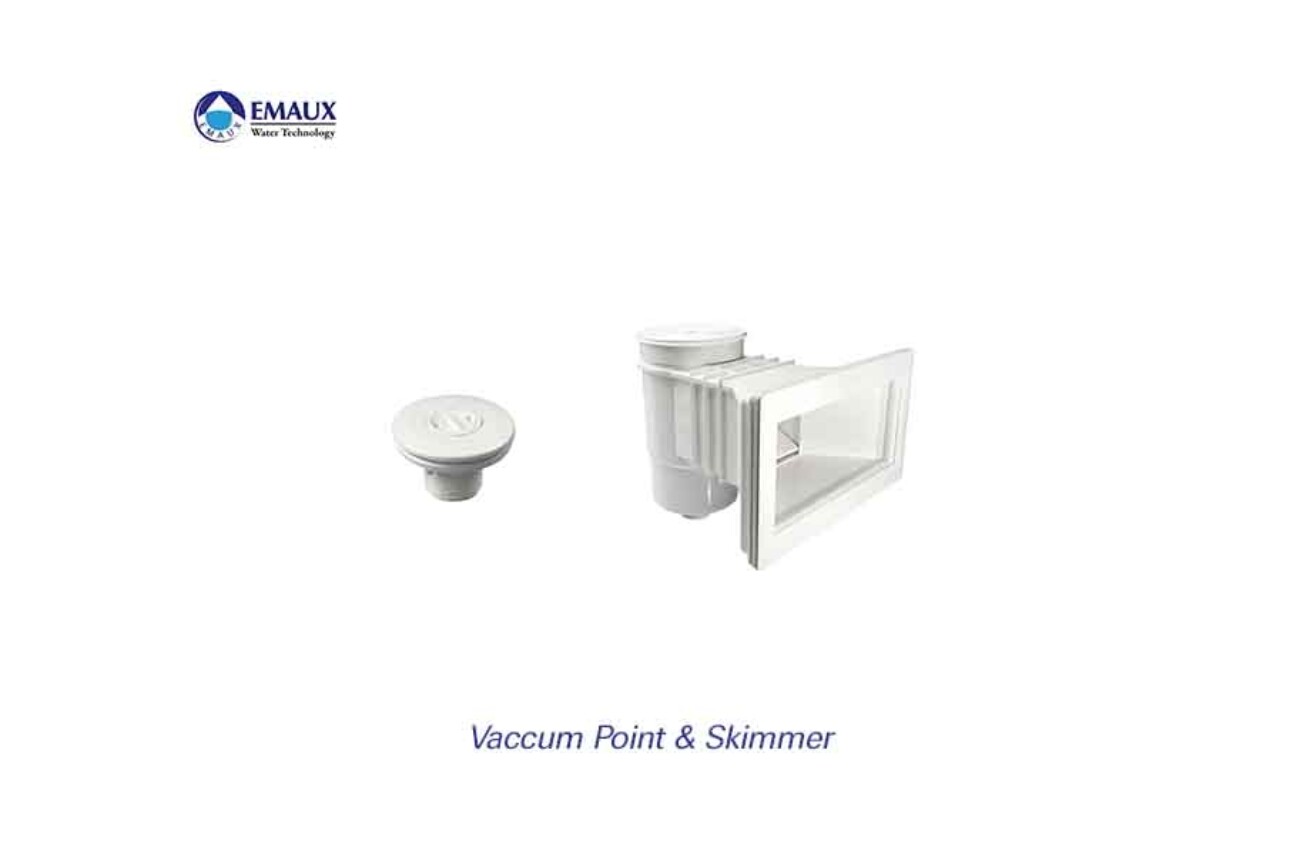

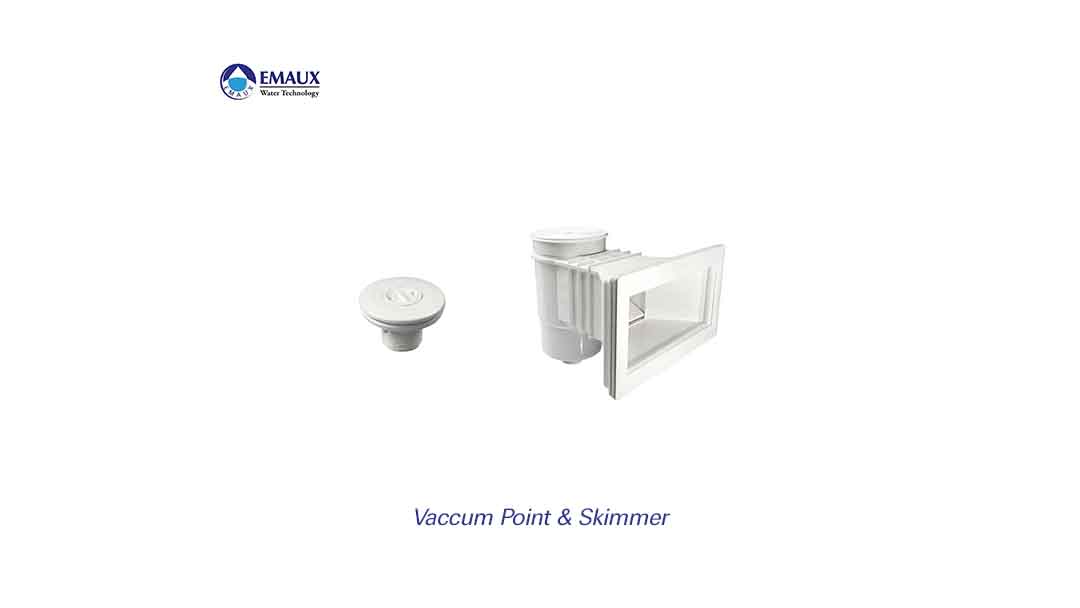

Skimmers
- Openings along the pool wall that pull in floating debris (like leaves) before it sinks.
- Work with the pump to draw water toward the filtration system.

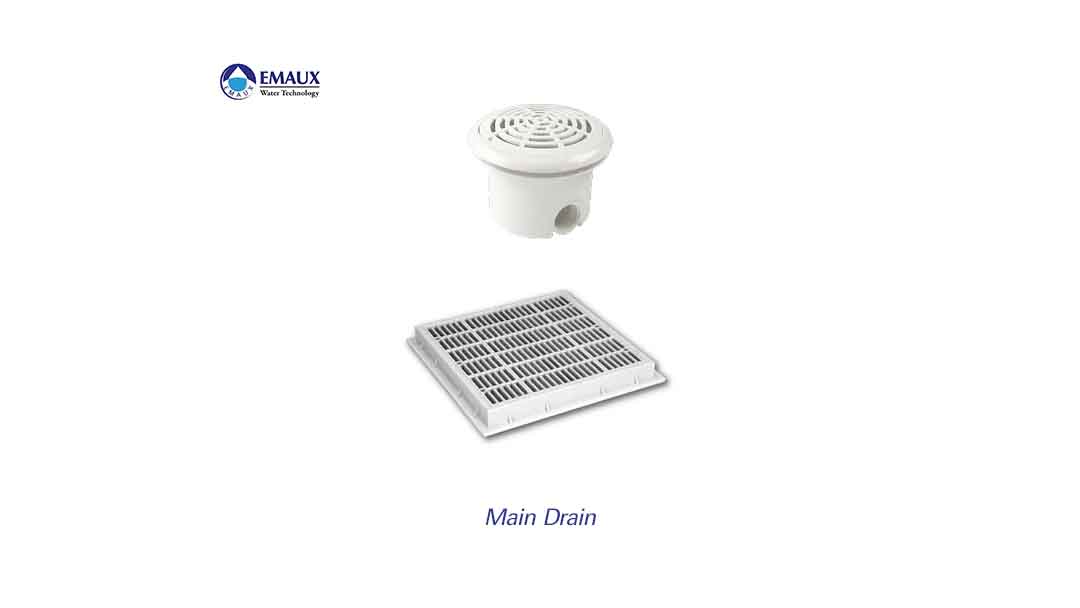

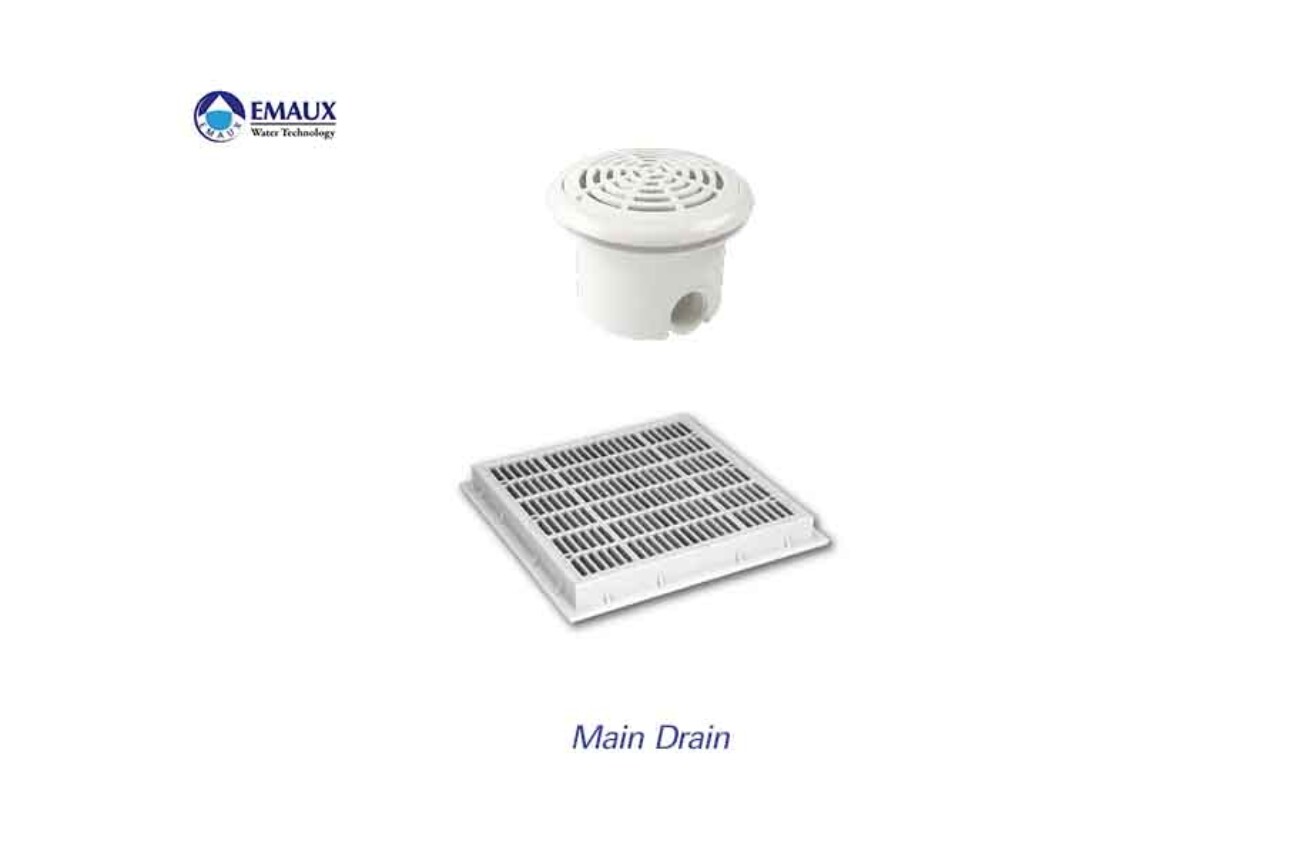

Main Drain
- Located at the bottom, helps remove settled debris and circulate deep water
Vacuum Point
- A dedicated suction line used for attaching a pool vacuum. (it acts like a vacuum cleaner for a pool)
BRANDS AVAILABLE WITH US
CLEANING EQUIPMENTS
Deep Leaf Net, Vacuum Head, Hose, Algae Brush & Pool Brush
Cleaning Essentials
Keeping your pool clean requires the right tools for regular maintenance. These essential cleaning accessories help remove debris, scrub surfaces, and maintain crystal-clear water:
-

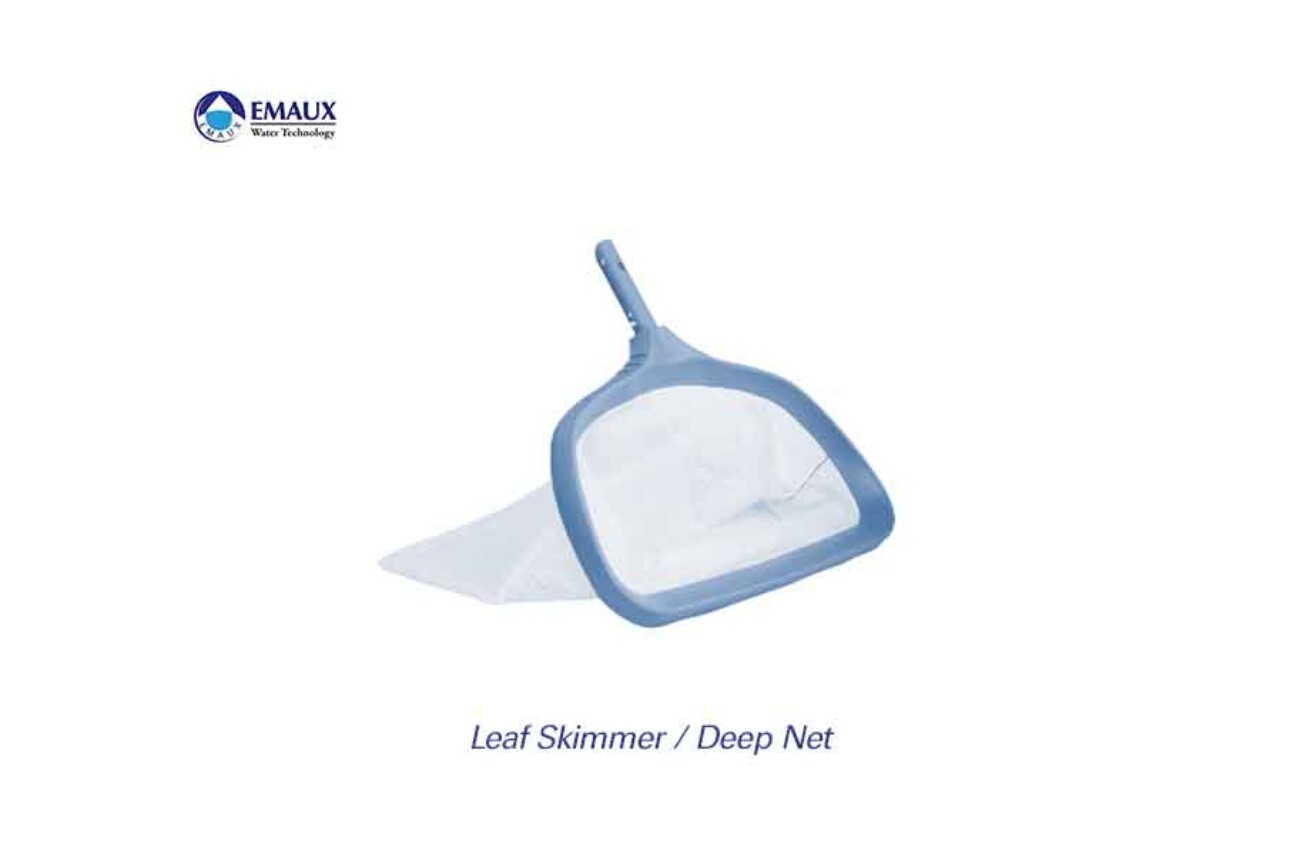

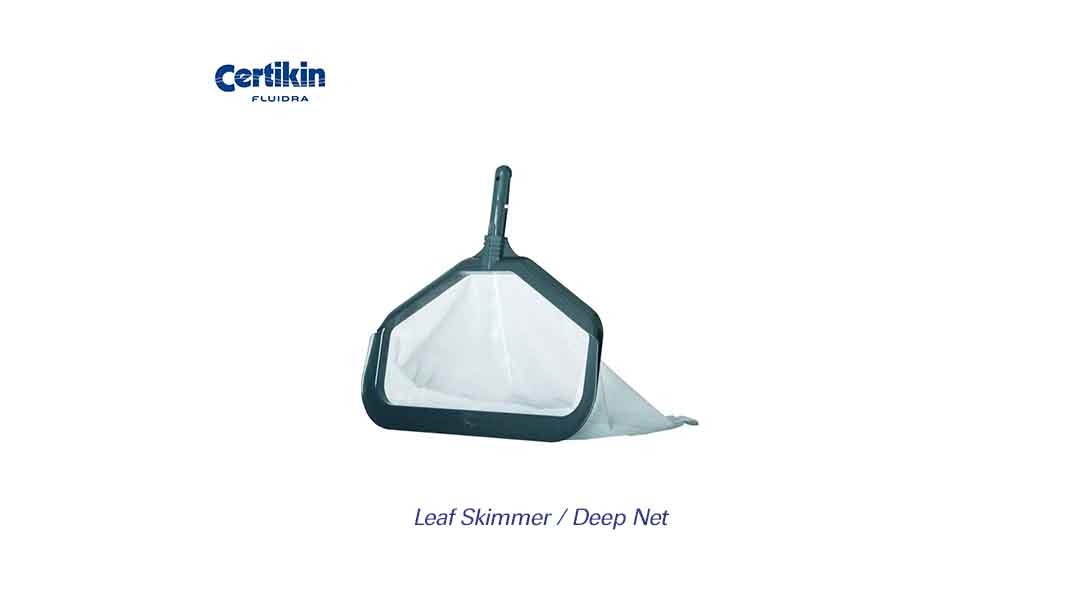

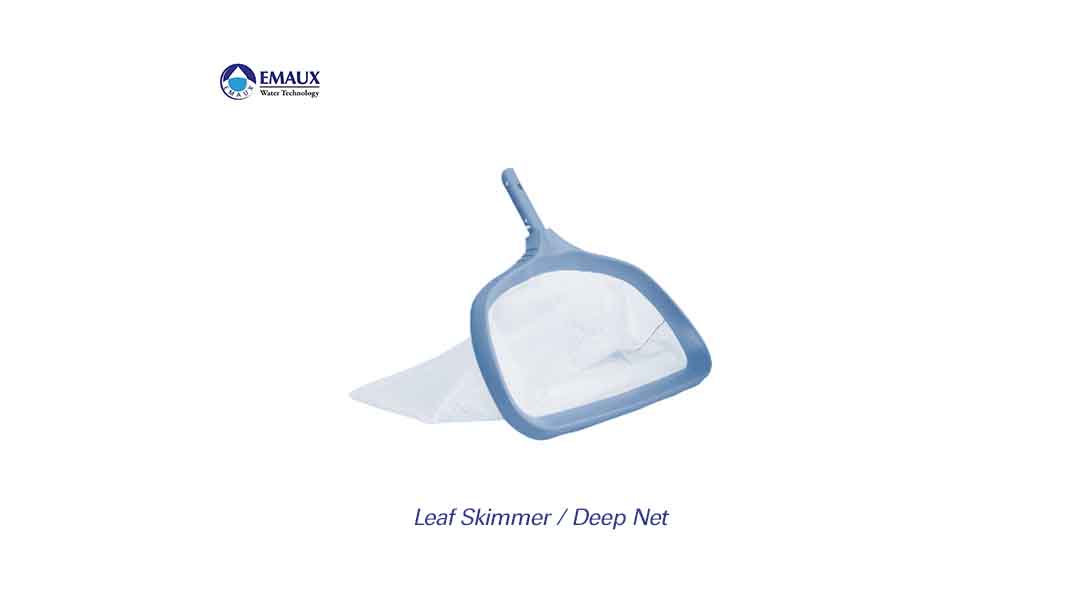

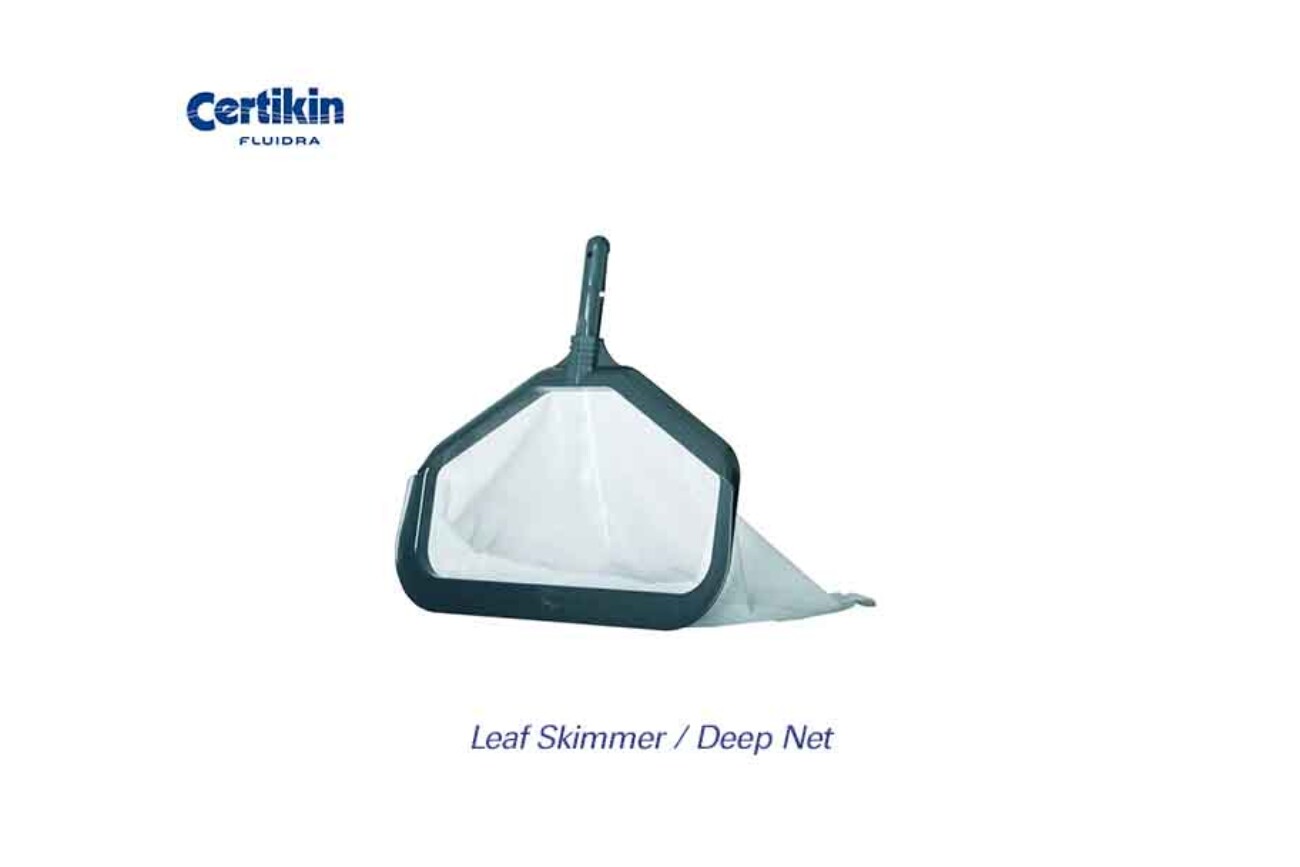

Deep Leaf Net: Designed to collect leaves, insects, and floating debris from the surface or pool bottom.
-

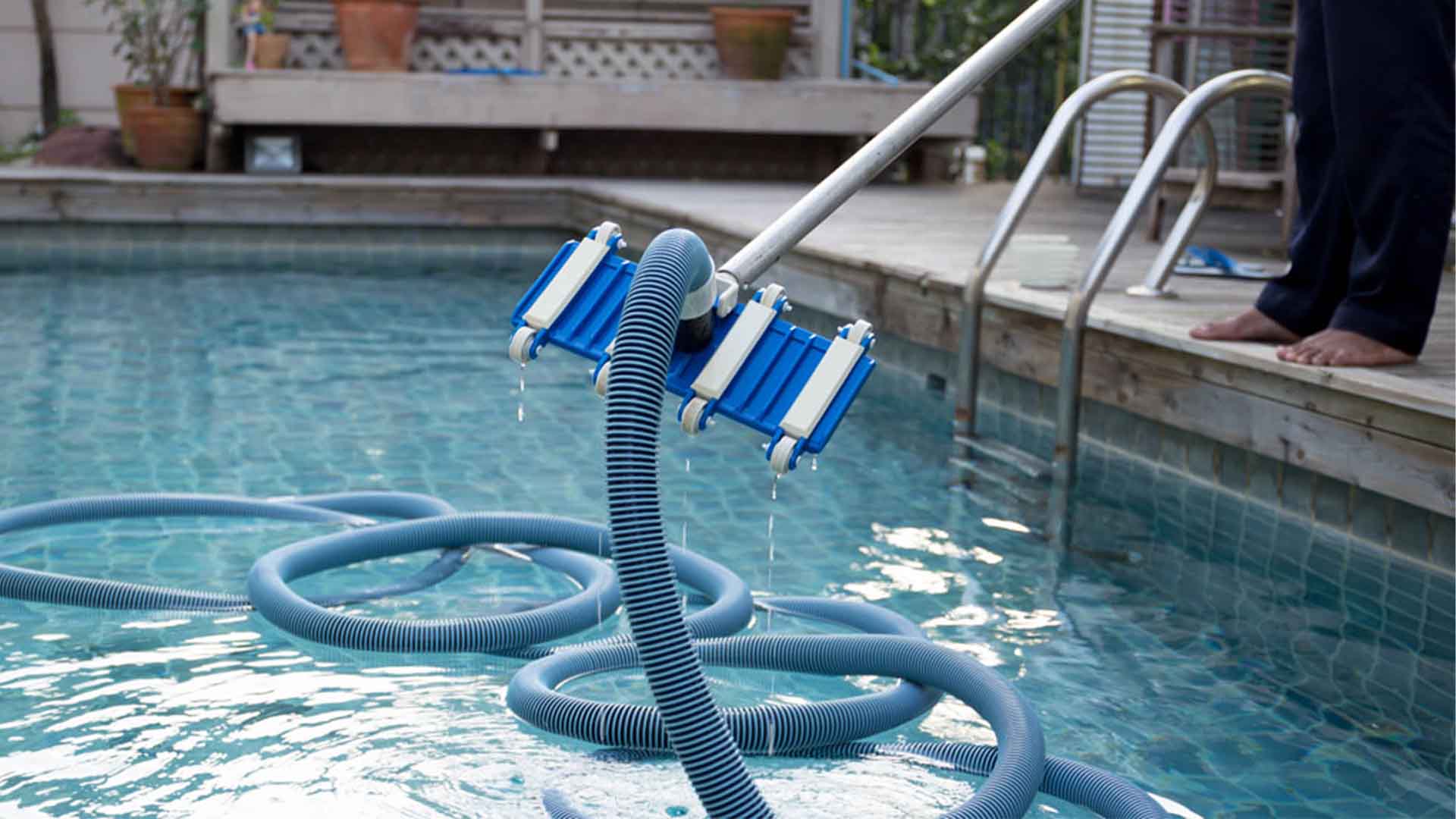

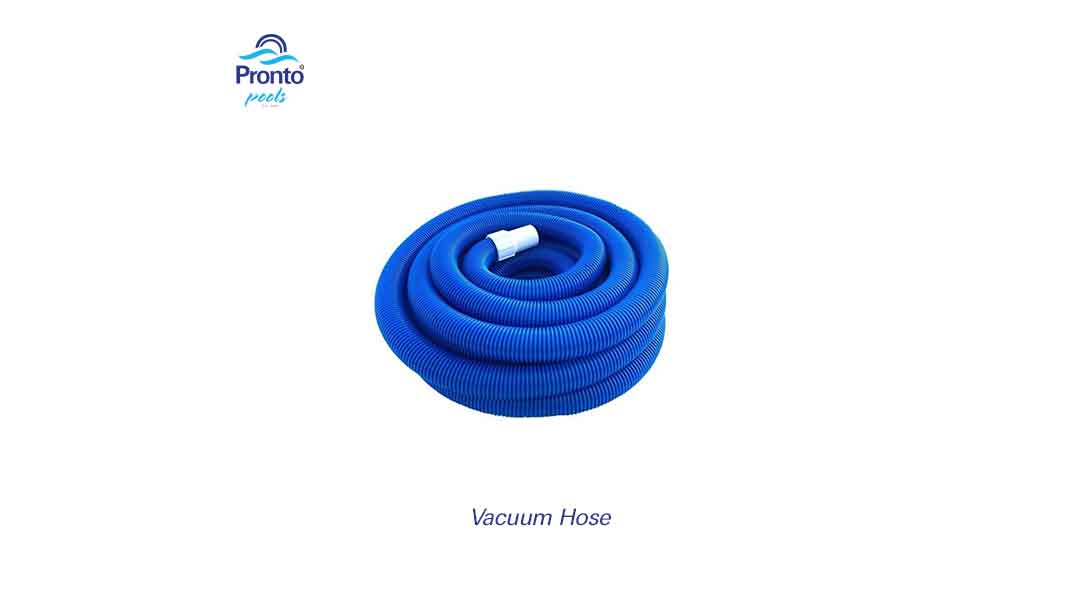

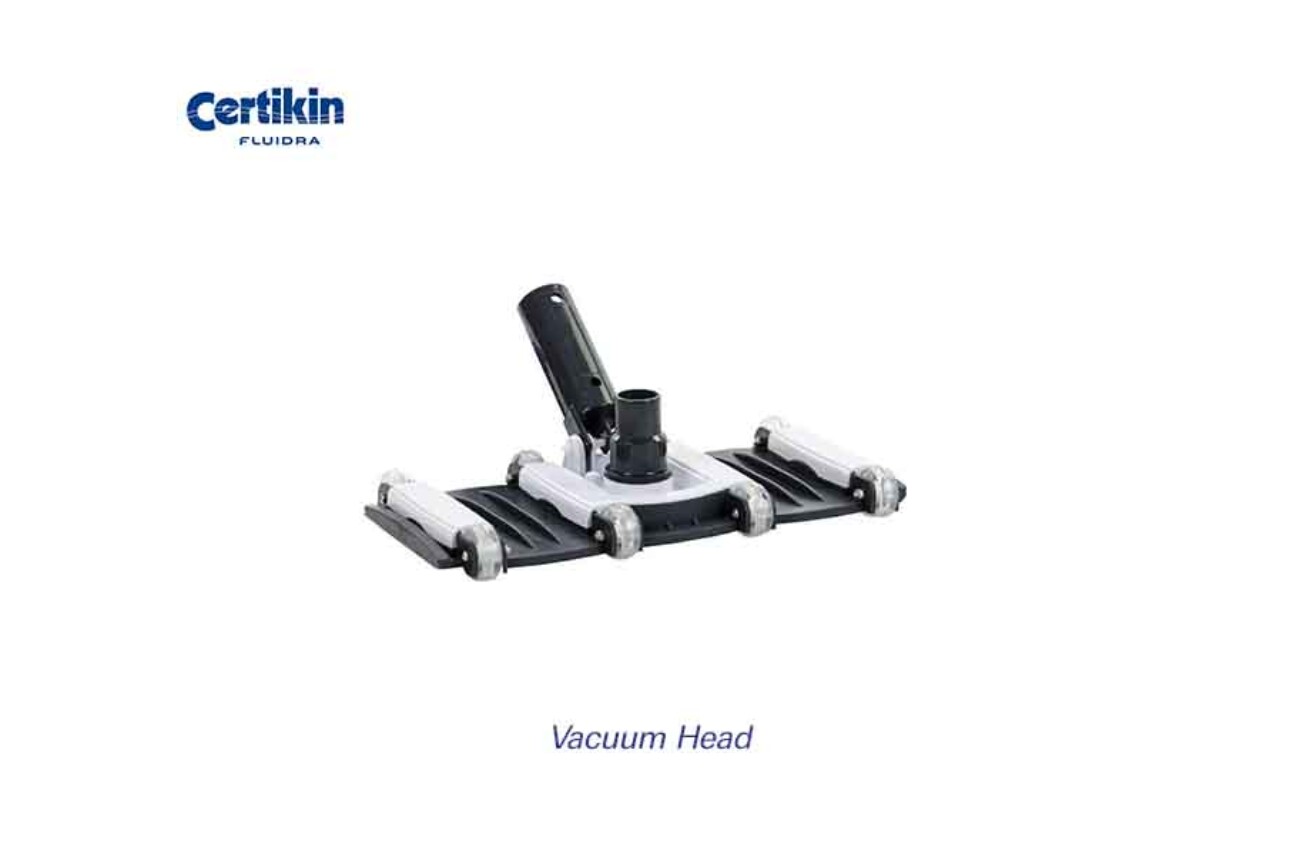

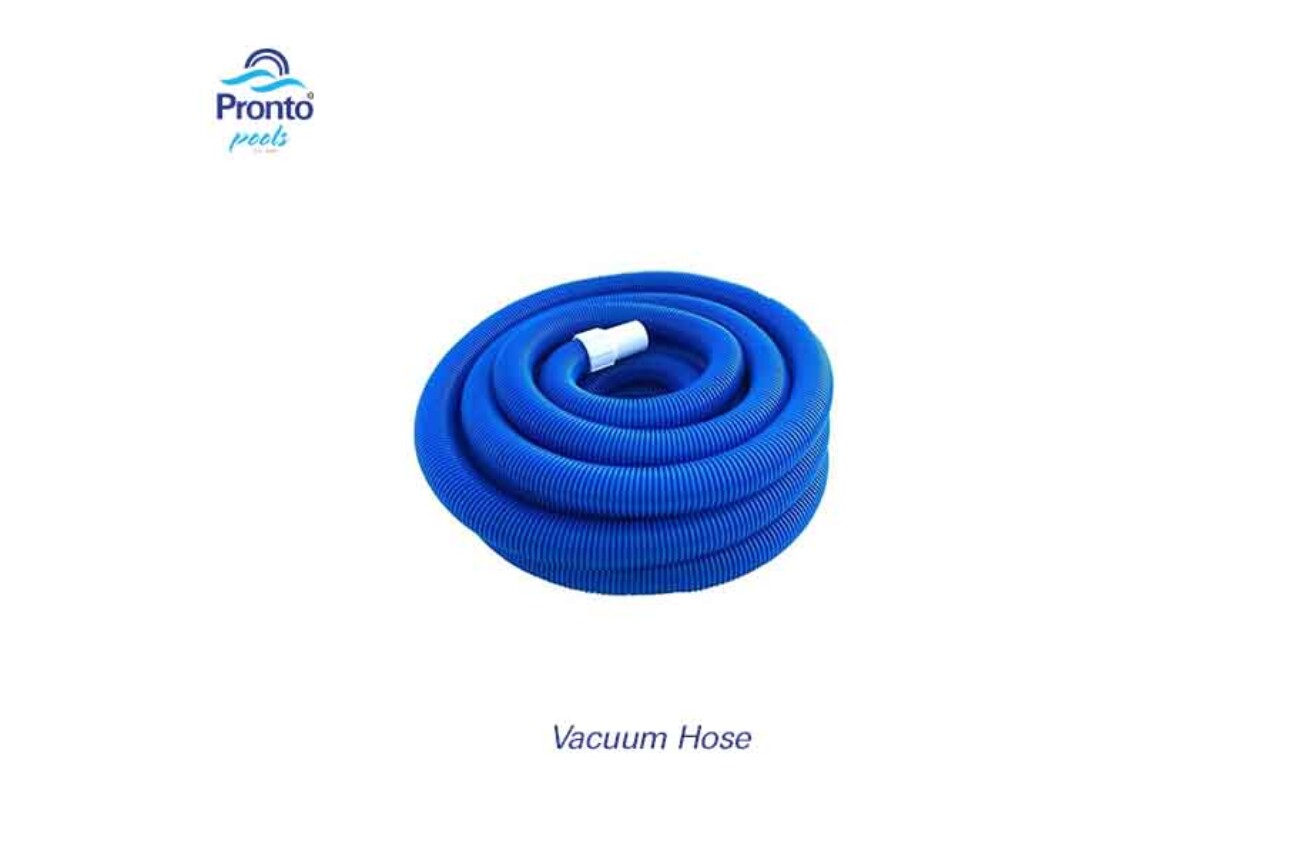

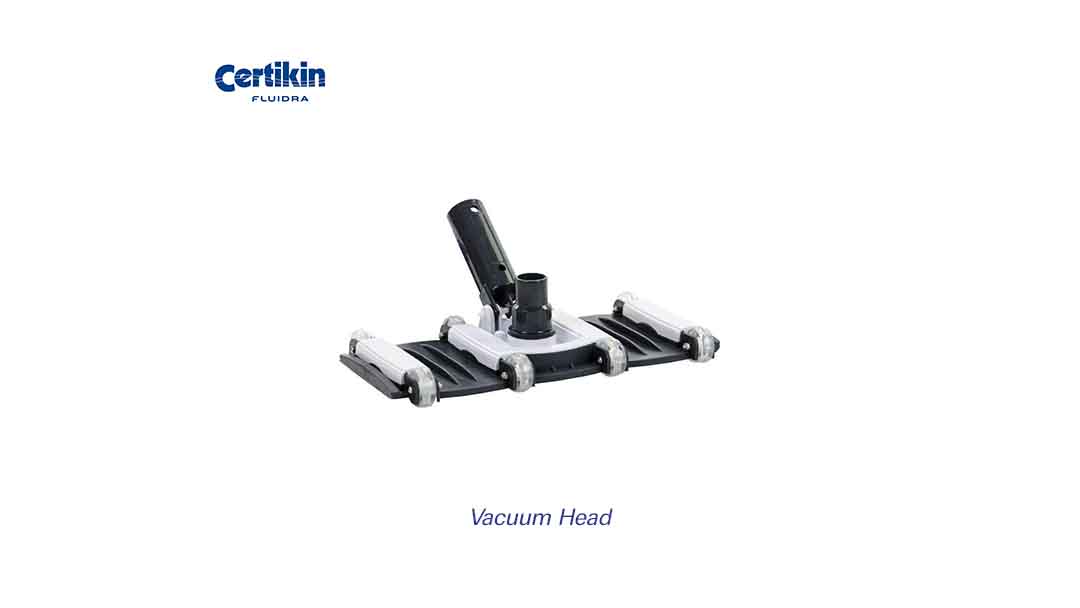

Vacuum Head & Hose: Used for manual vacuuming to remove settled dirt and debris from the pool floor.
-

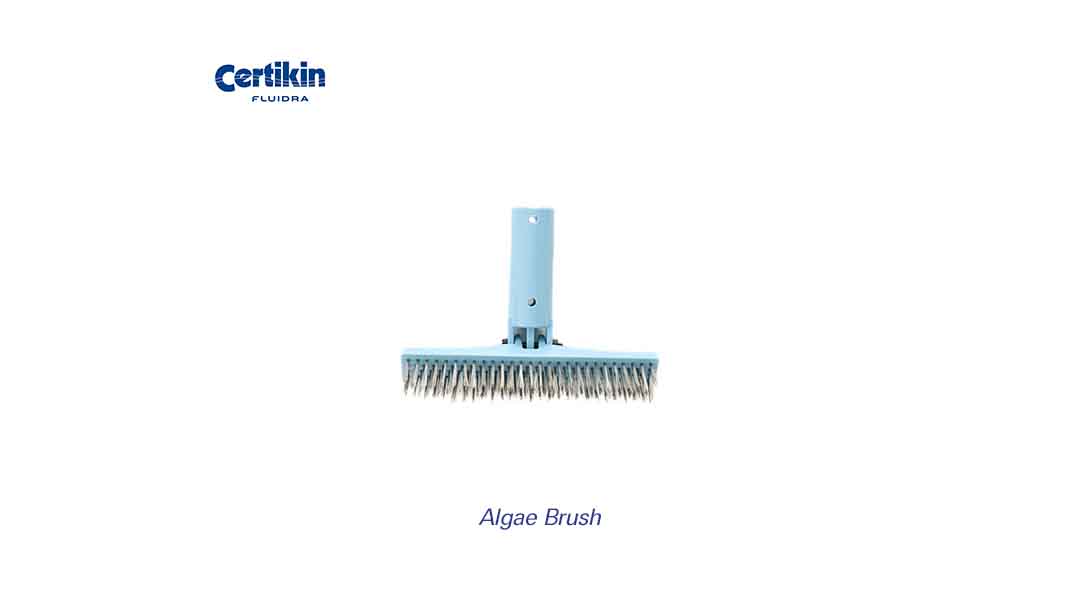

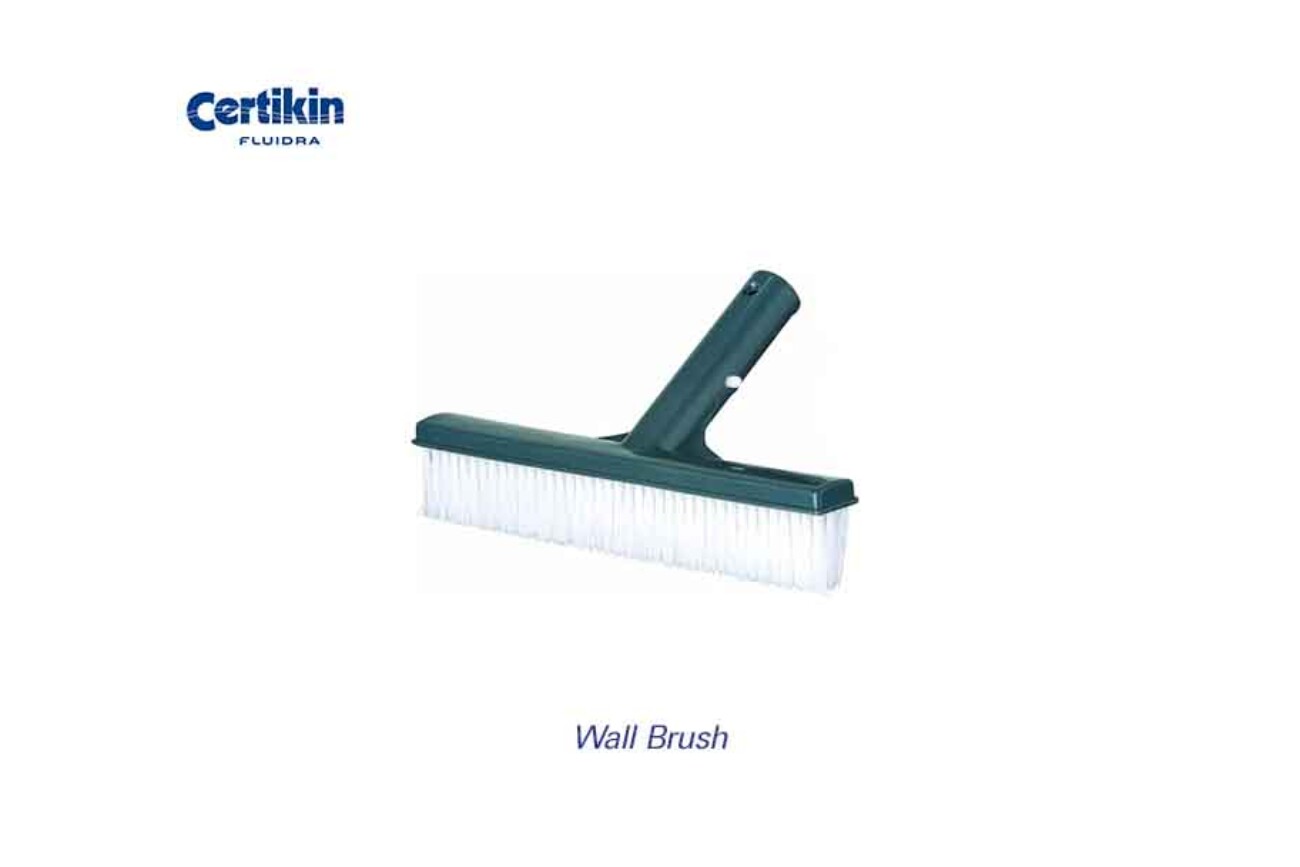

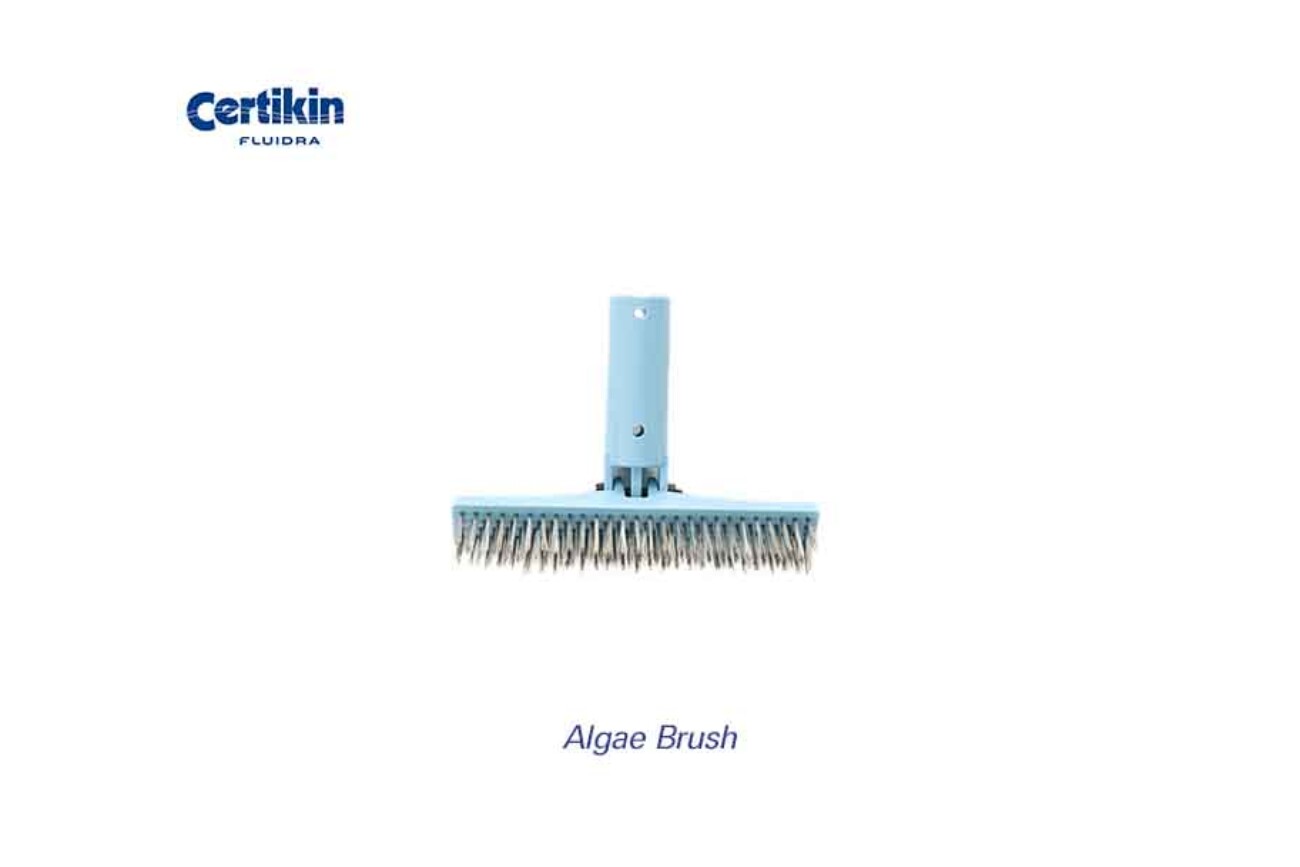

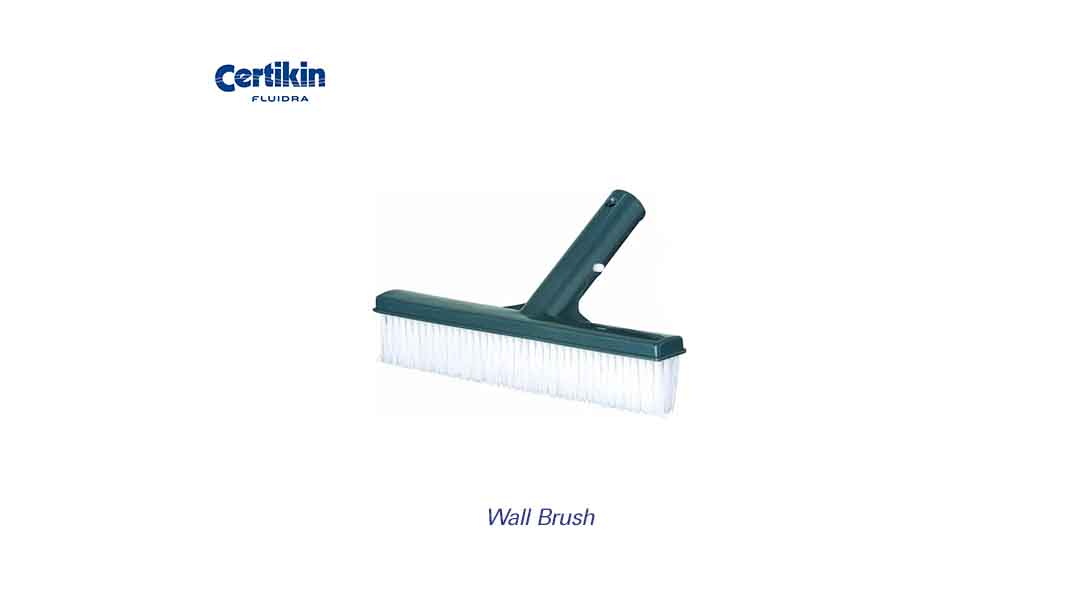

Algae Brush / Pool Brush: Stiff-bristled brushes that help scrub pool walls and floors to remove algae and buildup.
Routine cleaning not only keeps your pool looking great but also helps prolong the life of your filtration and circulation systems.
For more info on Pool Cleaning click here
BRANDS AVAILABLE WITH US
CHEMICAL EQUIPMENTS
TCCA 90 (Chlorine), Algaecide, pH Increaser / Decreaser & pH Testing Kit
Chemical Essentials
Maintaining the right chemical balance is key to a safe and healthy swimming pool. These core chemical products help sanitize, prevent algae growth, and keep water chemistry in check:

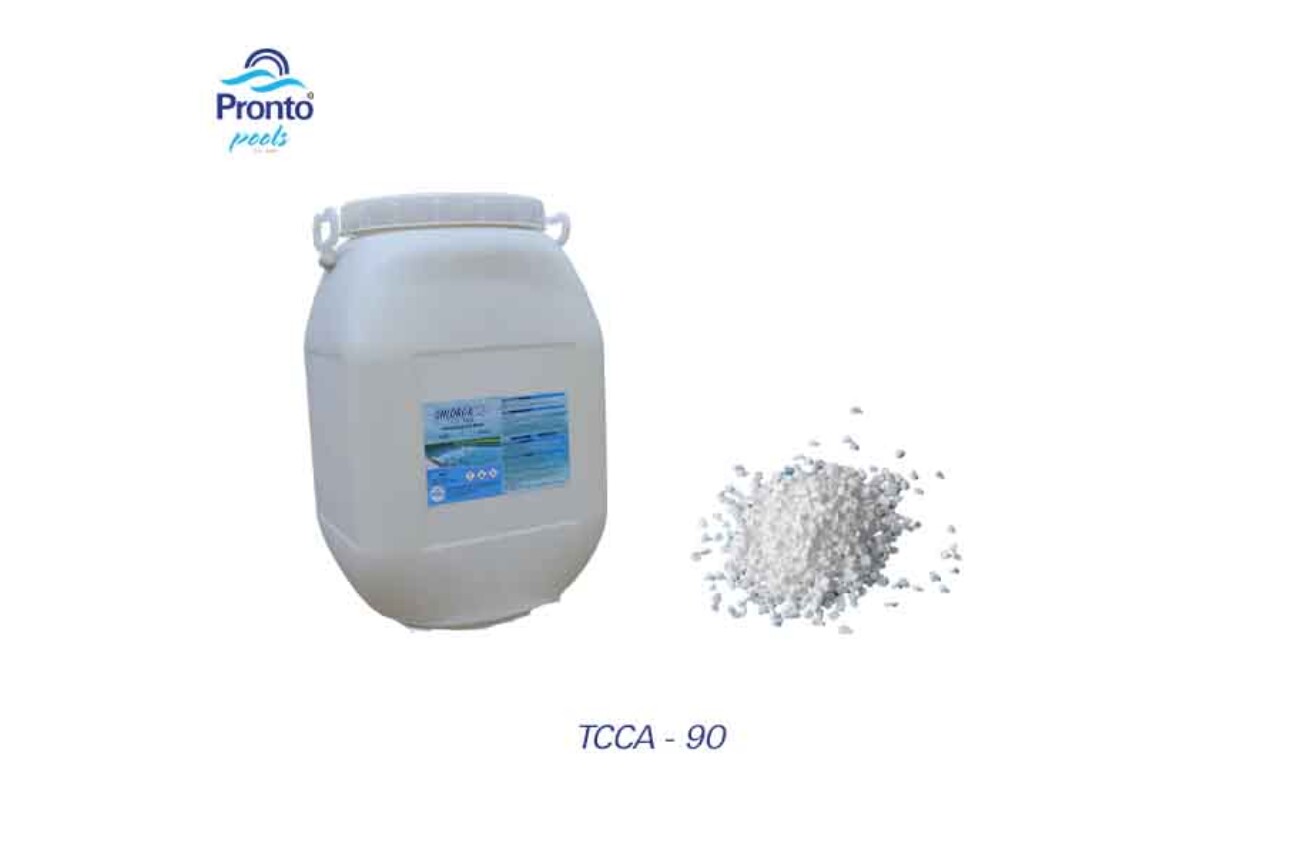

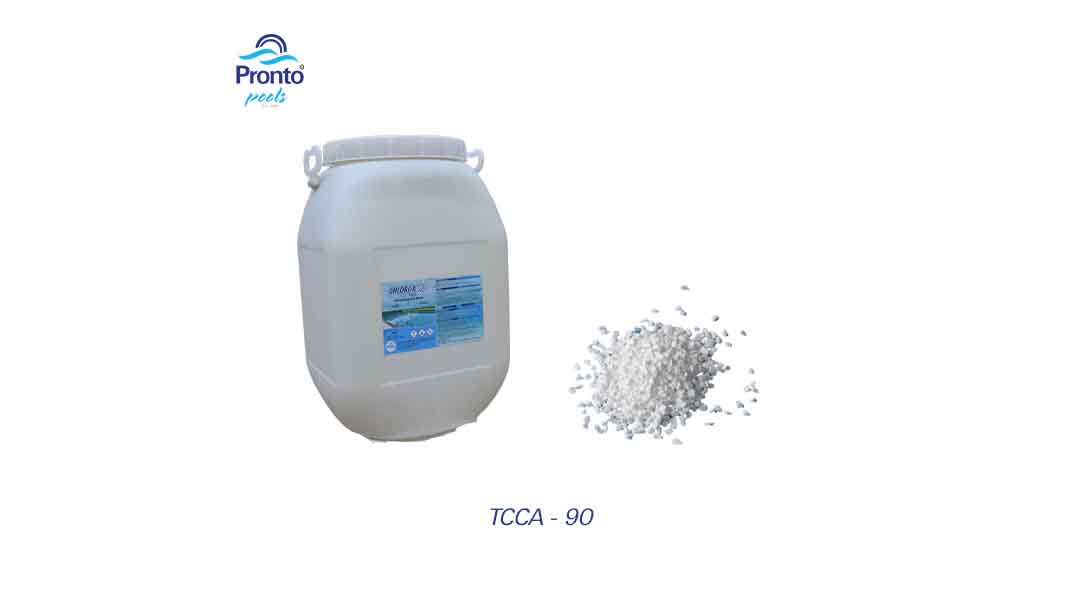

- TCCA 90 (Chlorine): A powerful sanitizer used to disinfect pool water and eliminate harmful bacteria.

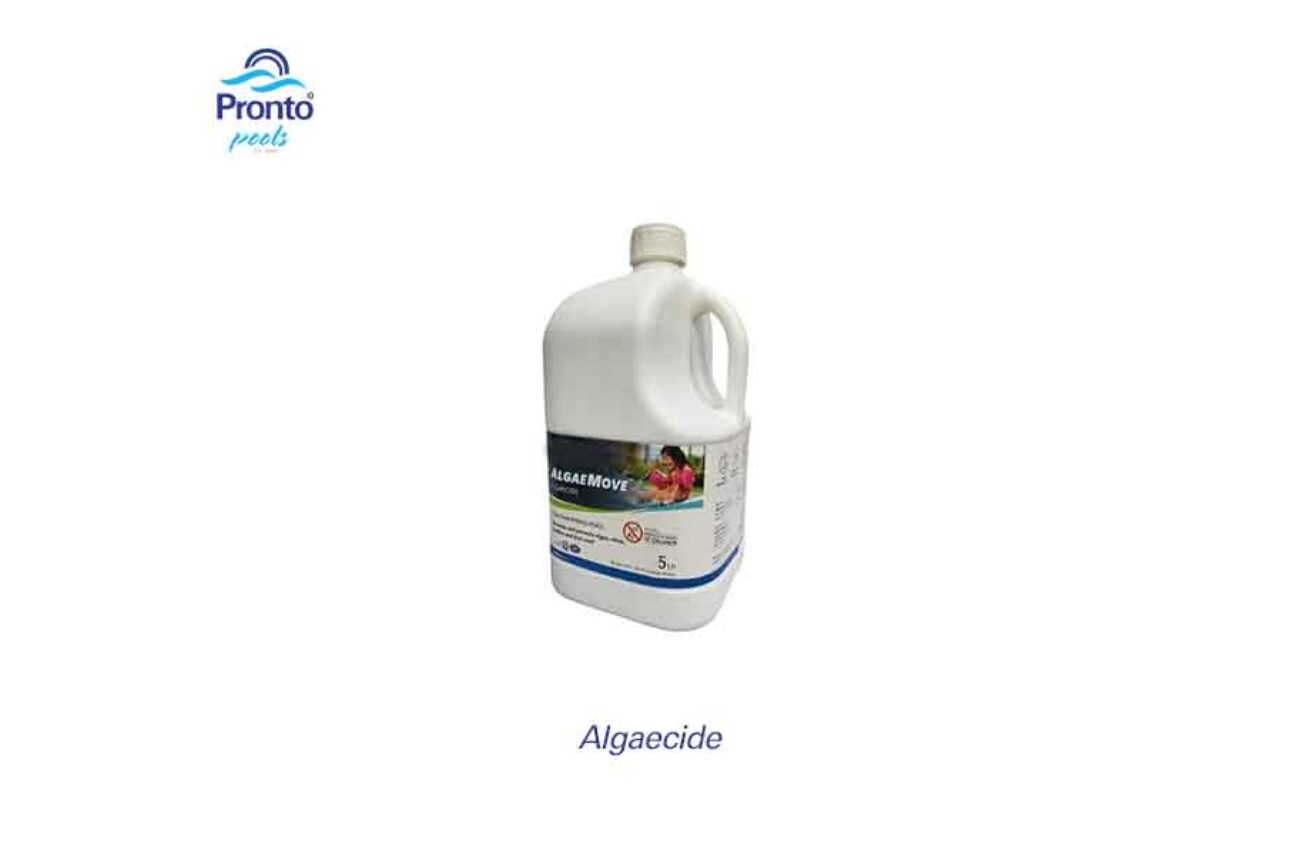

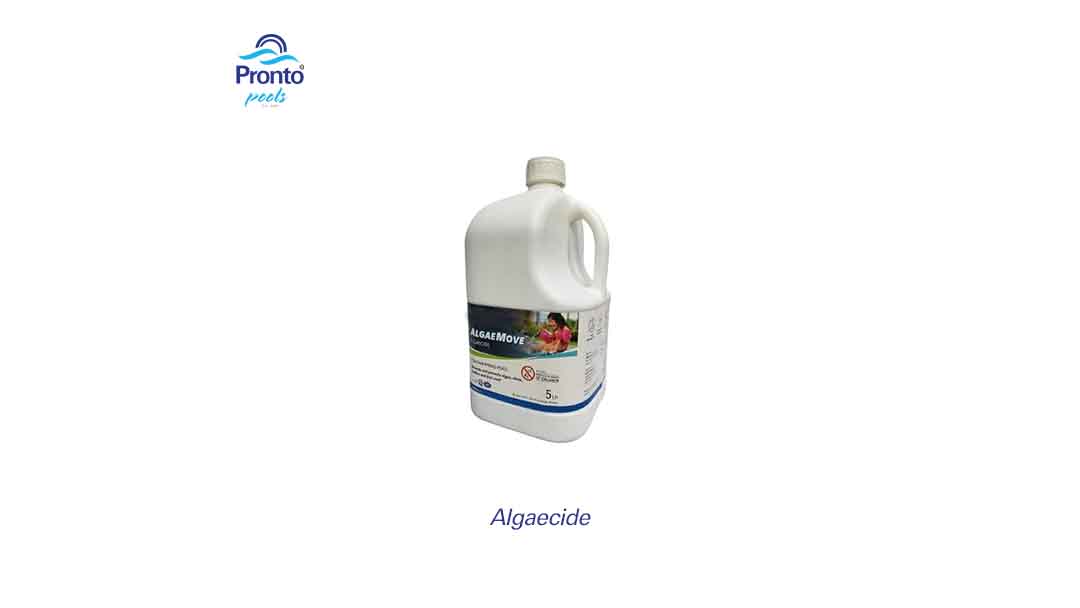

- Algaecide (e.g., Algae Move): Prevents and treats algae growth, keeping pool surfaces clean and clear.
- pH Increaser / Decreaser: Adjusts the water’s pH level to maintain balance and prevent corrosion or scaling.

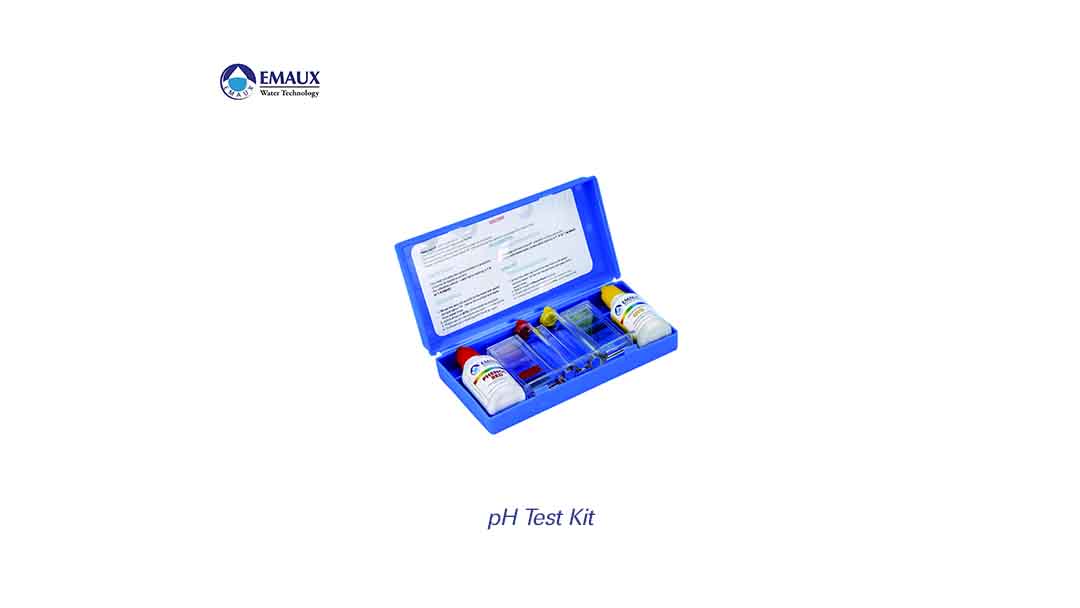

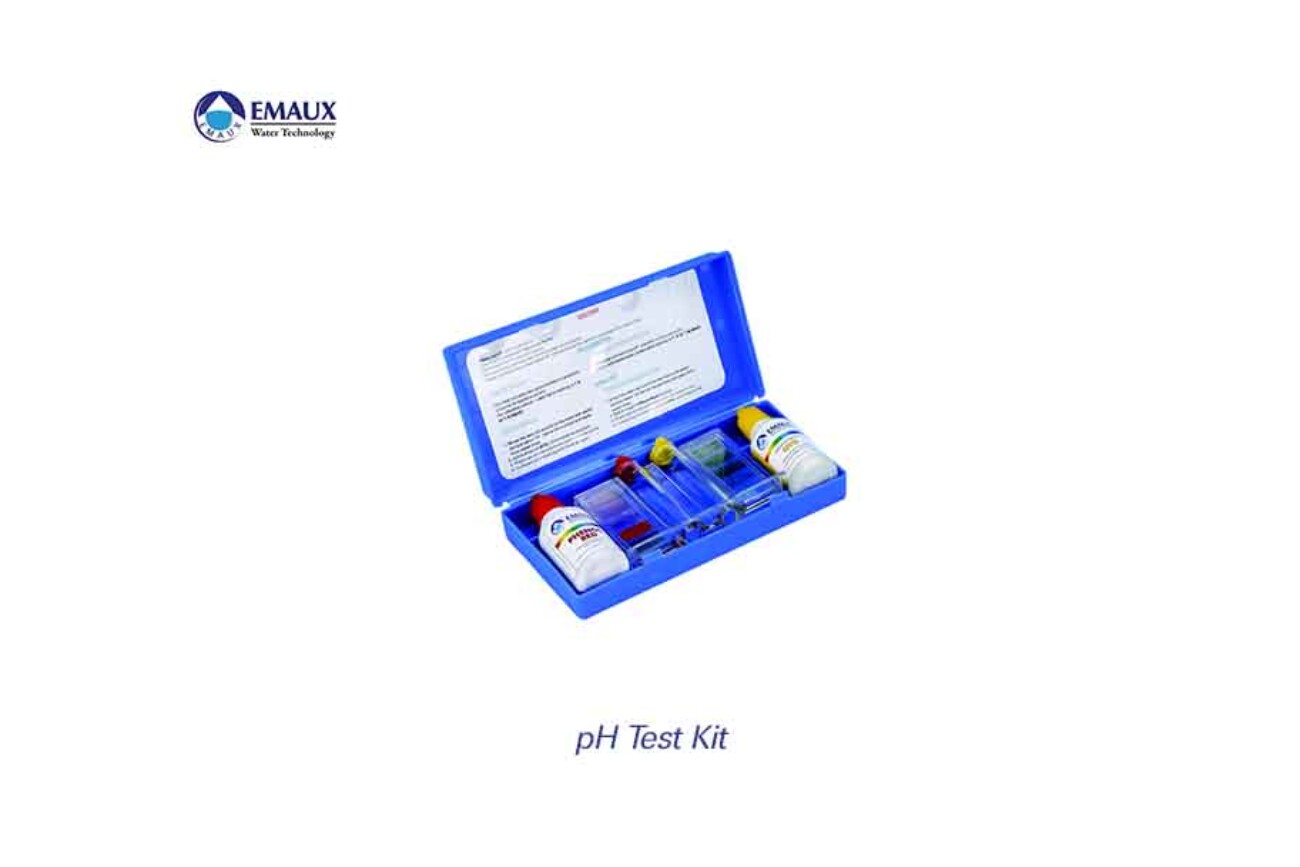

- pH Testing Kit: Allows regular monitoring of pH and sanitizer levels to ensure water stays within a safe range.
Proper chemical care ensures crystal-clear water, swimmer safety, and longer-lasting pool equipment.
For more info on Pool Cleaning click here
BRANDS AVAILABLE WITH US
Pool Automation
Control Panels, Timers & Robotic Pool Cleaners
Pool Automation
Pool automation brings convenience, efficiency, and smarter control to your pool maintenance. With the right automation tools, you can manage your pool systems remotely and ensure everything runs on schedule with minimal effort.
-

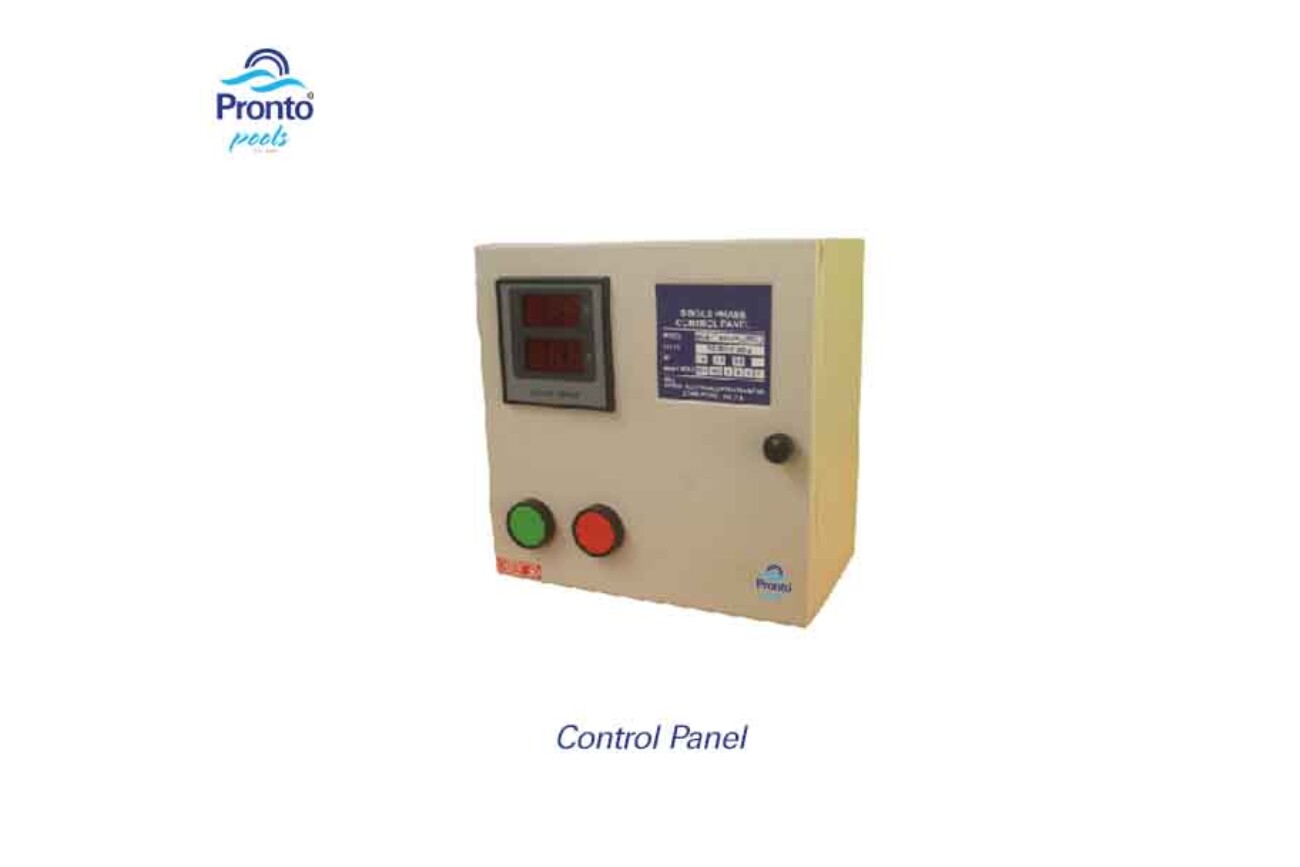

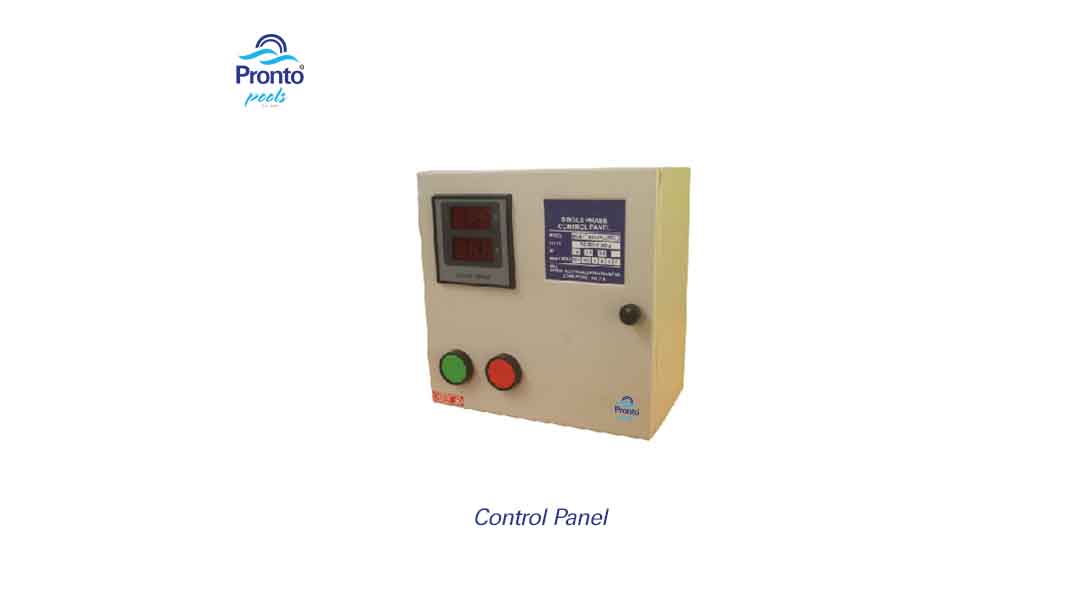

Control Panels & Timers: Automate lighting, filtration, pumps, and other equipment for consistent operation and energy savings.
-

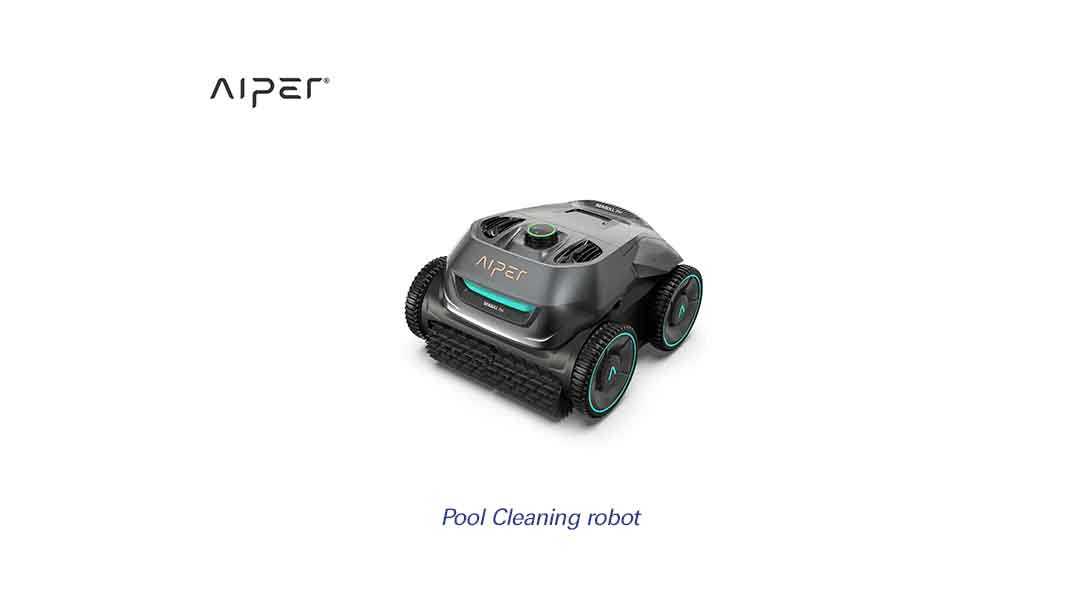

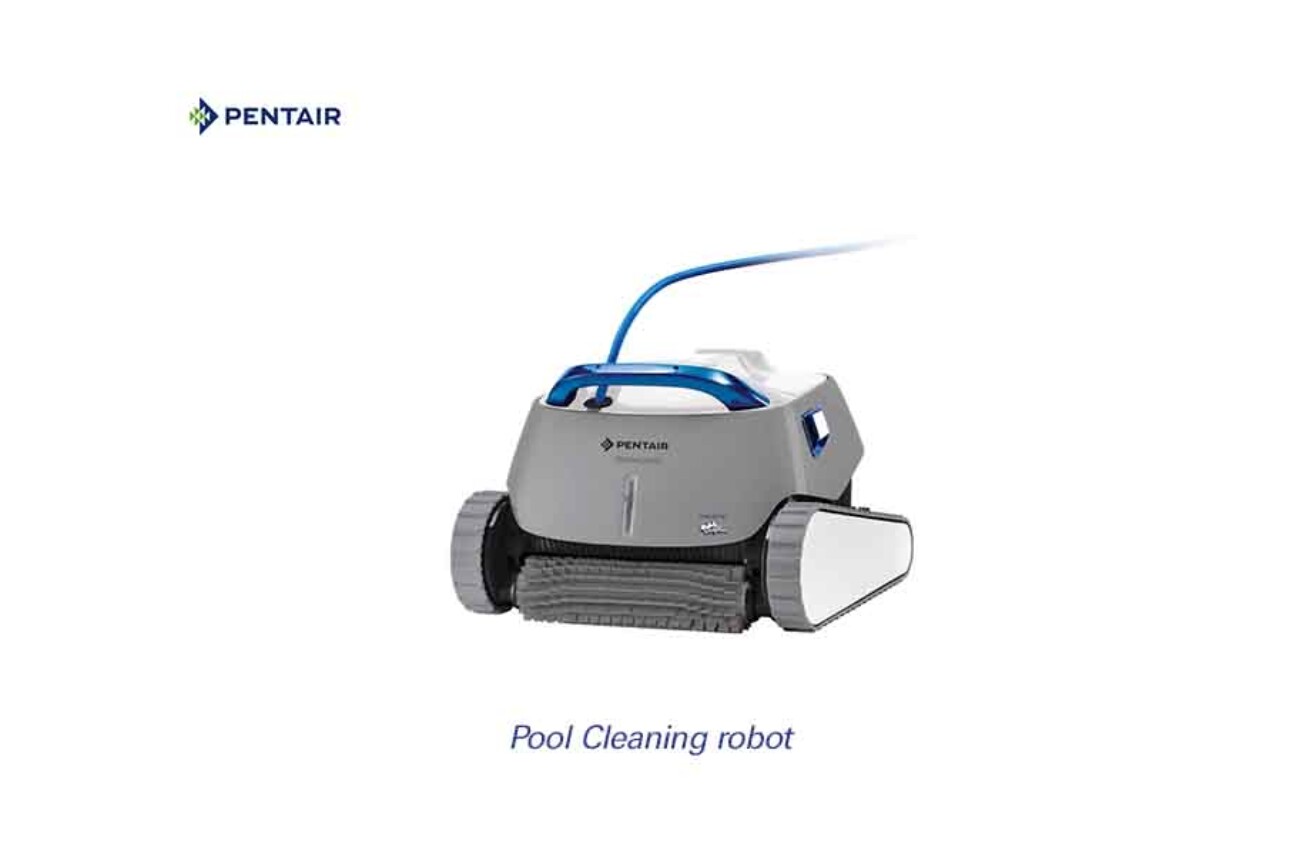

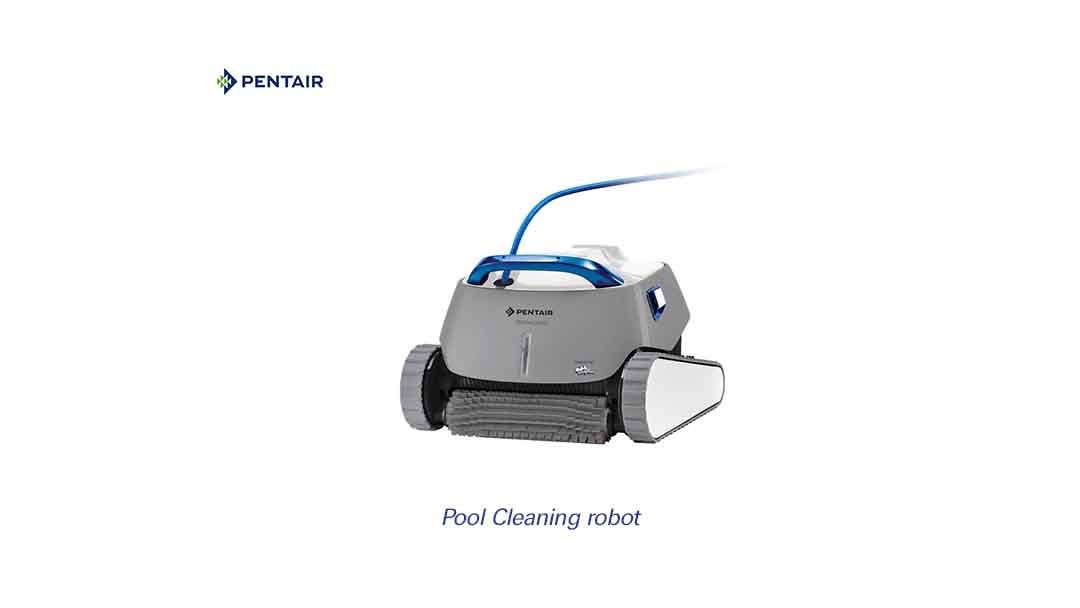

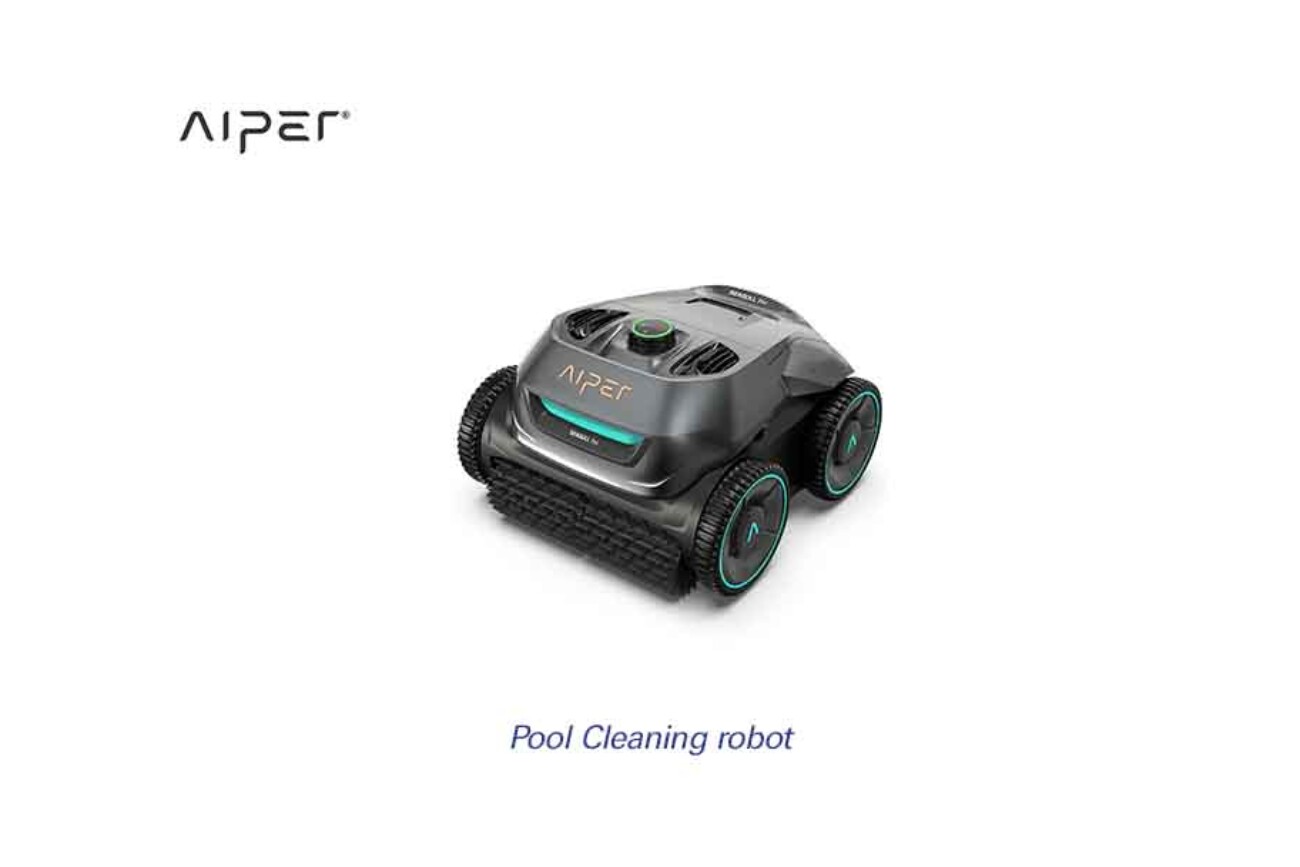

Robotic Pool Cleaners: Self-contained units that scrub and vacuum your pool floor and walls, offering hands-free, efficient cleaning with minimal supervision.
With automation, maintaining your pool becomes easier, more efficient, and hassle-free—leaving you more time to enjoy it.
For more info on Pool Cleaning click here
BRANDS AVAILABLE WITH US
Optional Pool Features
Pool Heater, Pool Cover Systems, Ozonator for Pools, Chlorine Dosing Pump, Counter Current & Jacuzzi
Enhance your pool’s functionality, comfort, and luxury with these optional add-ons. While not essential, they significantly elevate your swimming experience:
-

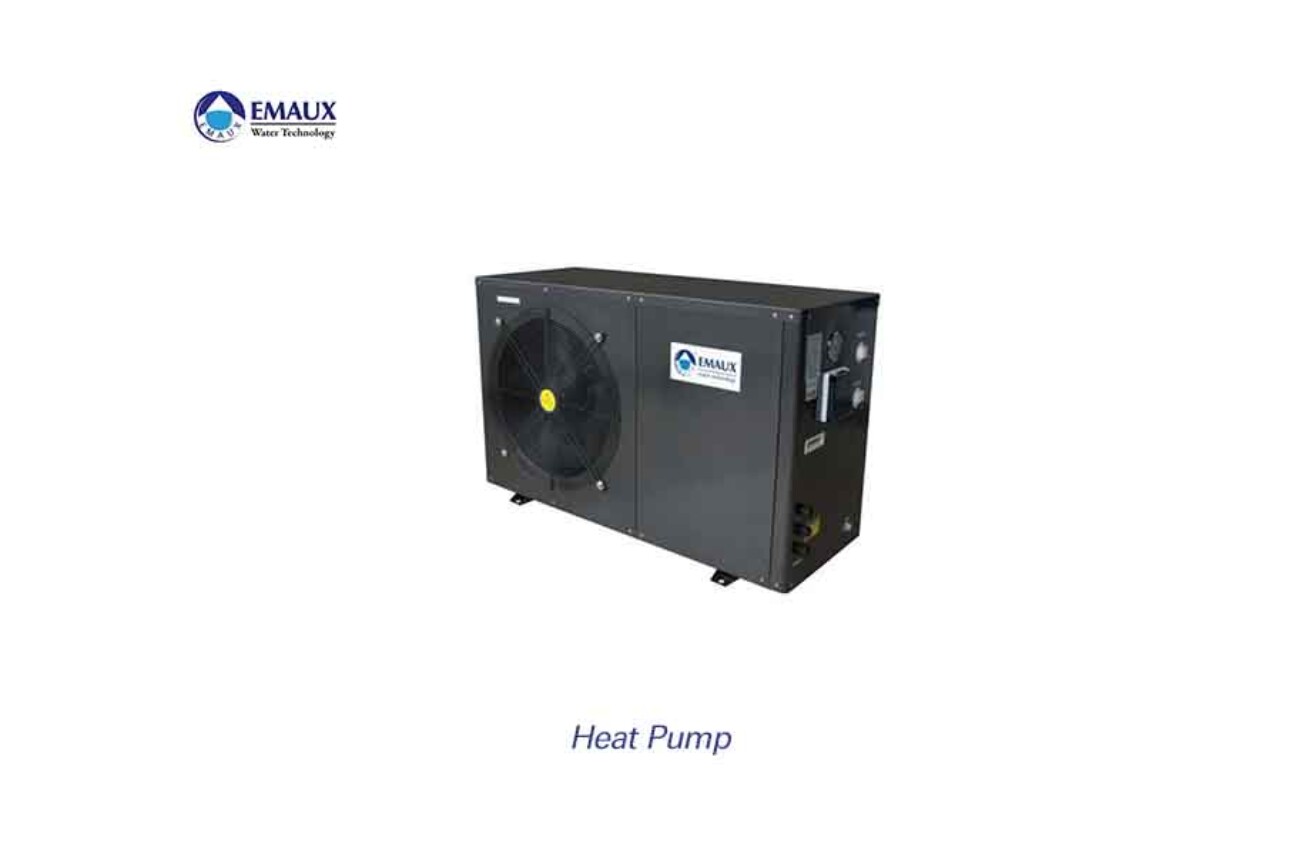

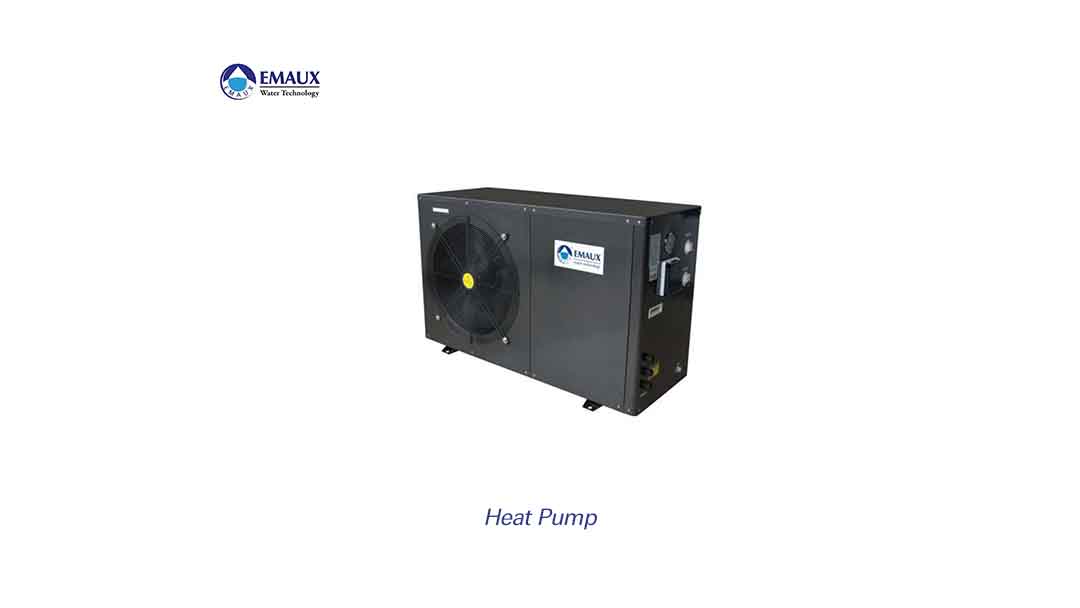

Pool Heater: Maintains a comfortable water temperature year-round, ideal for cooler climates or evening swims.
-

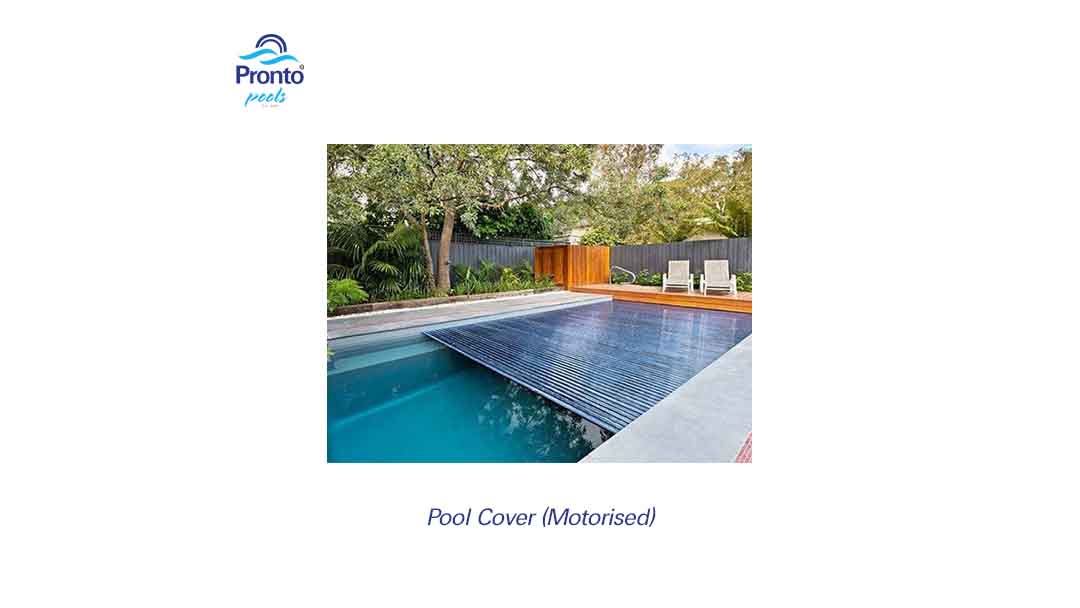

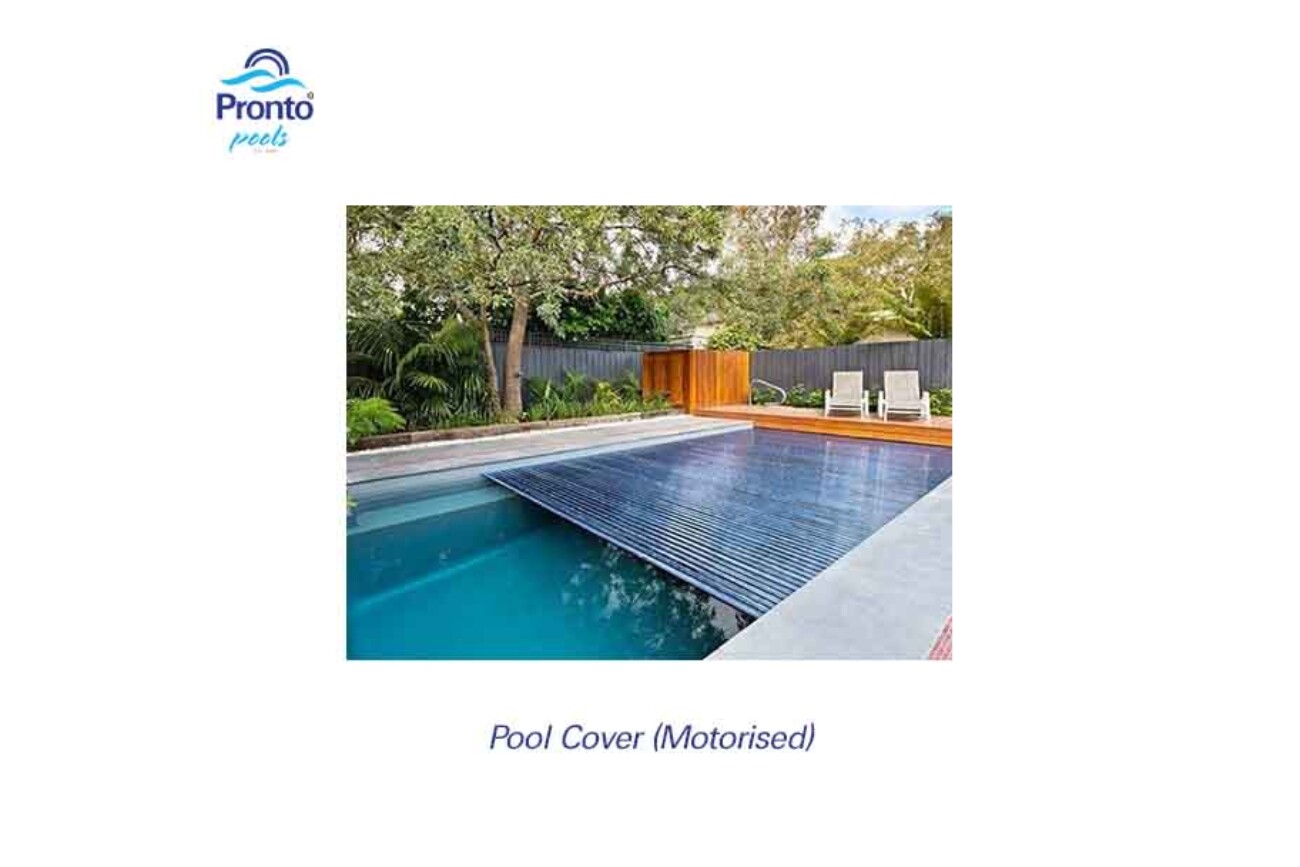

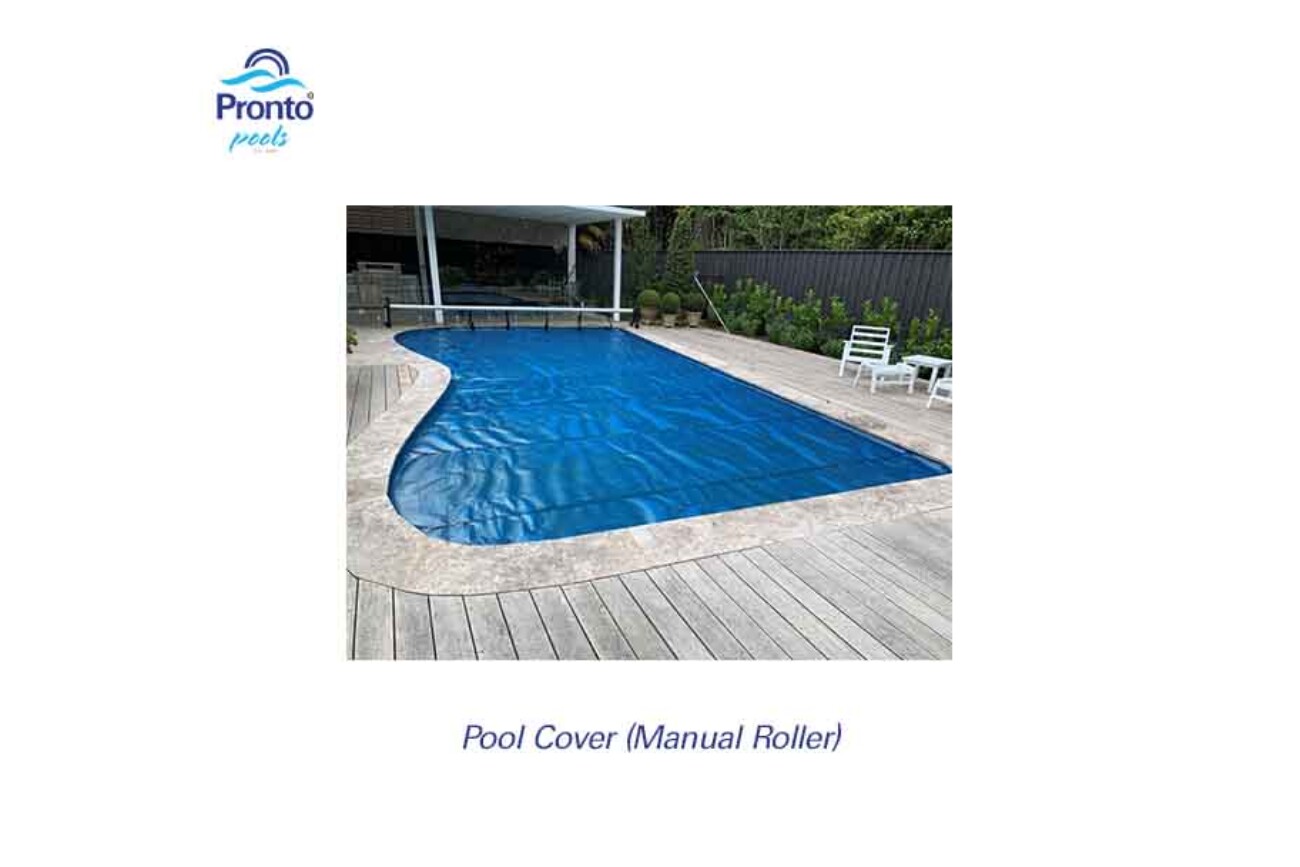

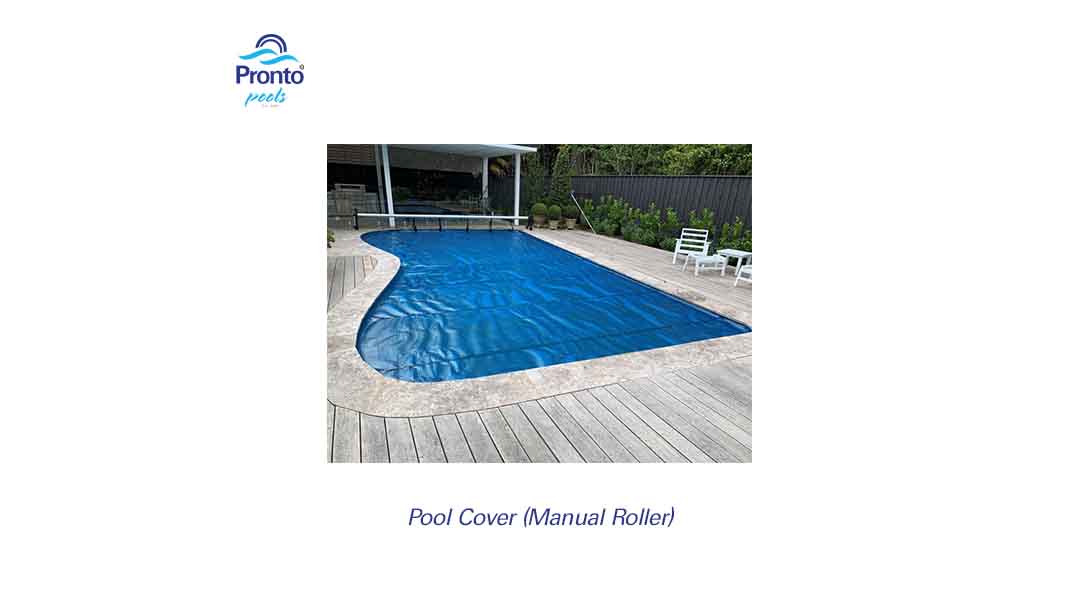

Pool Cover Systems (Motorized, Optional): Improves safety, retains heat, and keeps debris out with convenient one-touch operation.
-

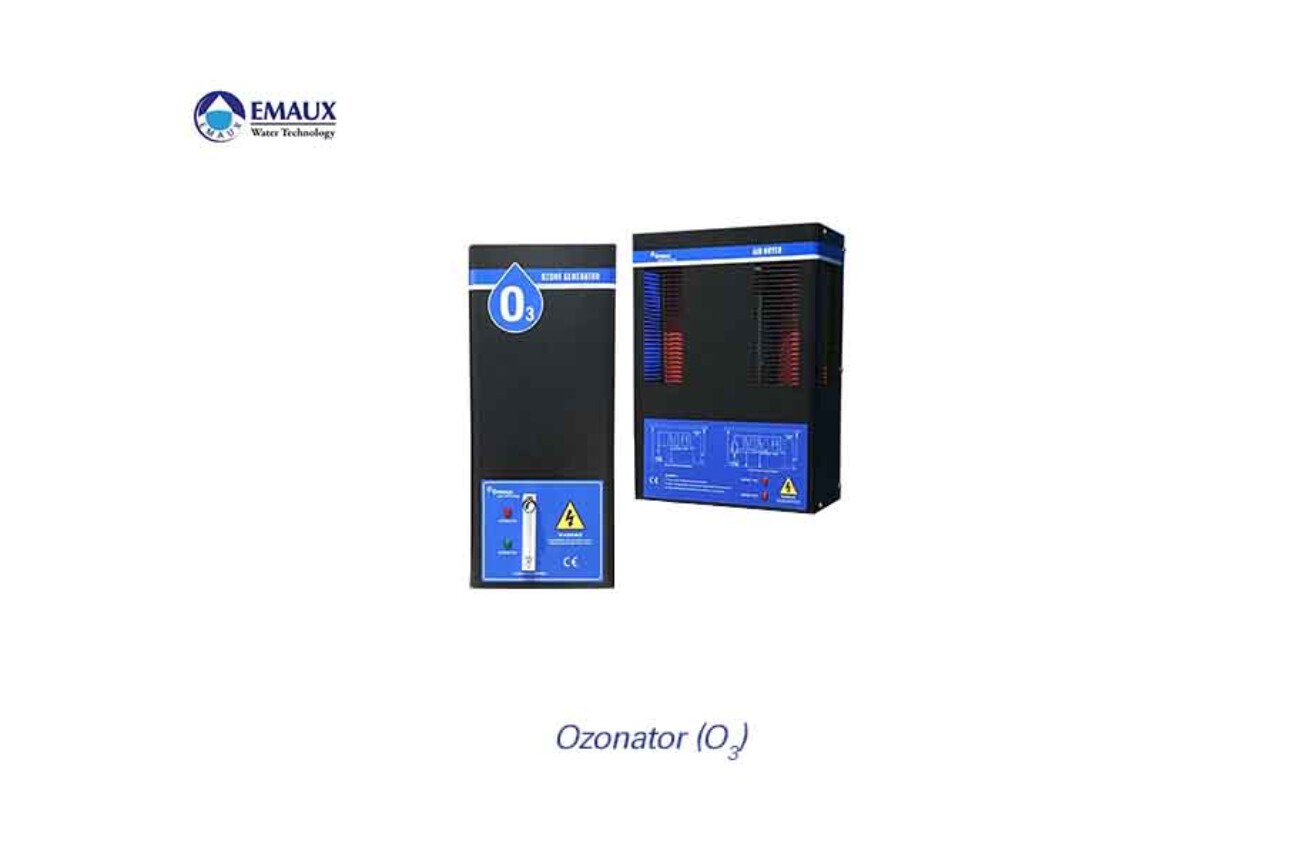

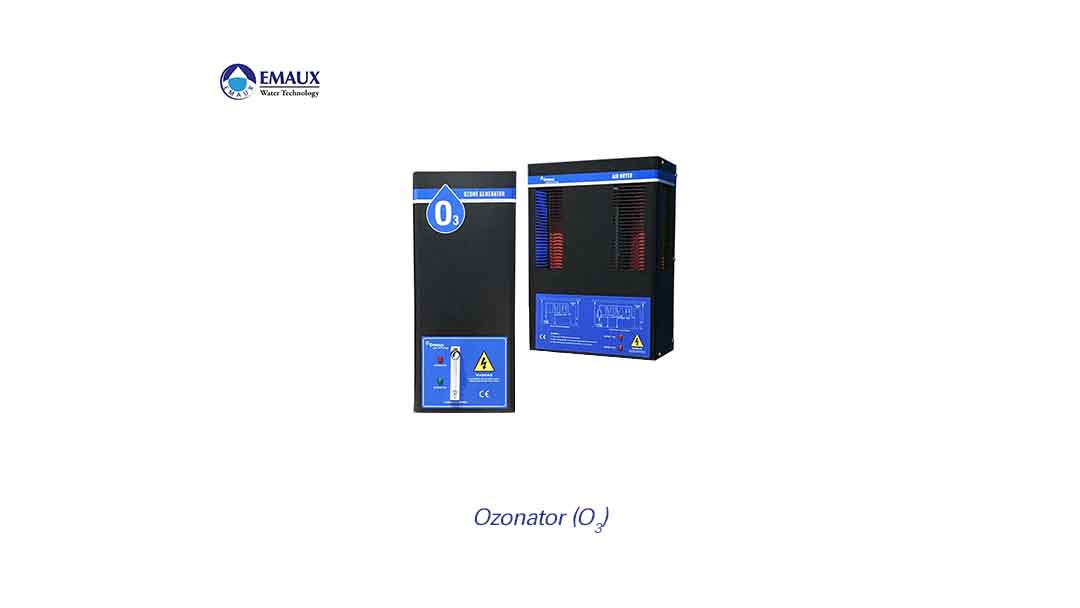

Ozonator for Pools: Reduces chlorine usage by purifying water with ozone gas, resulting in clearer, gentler water.
-

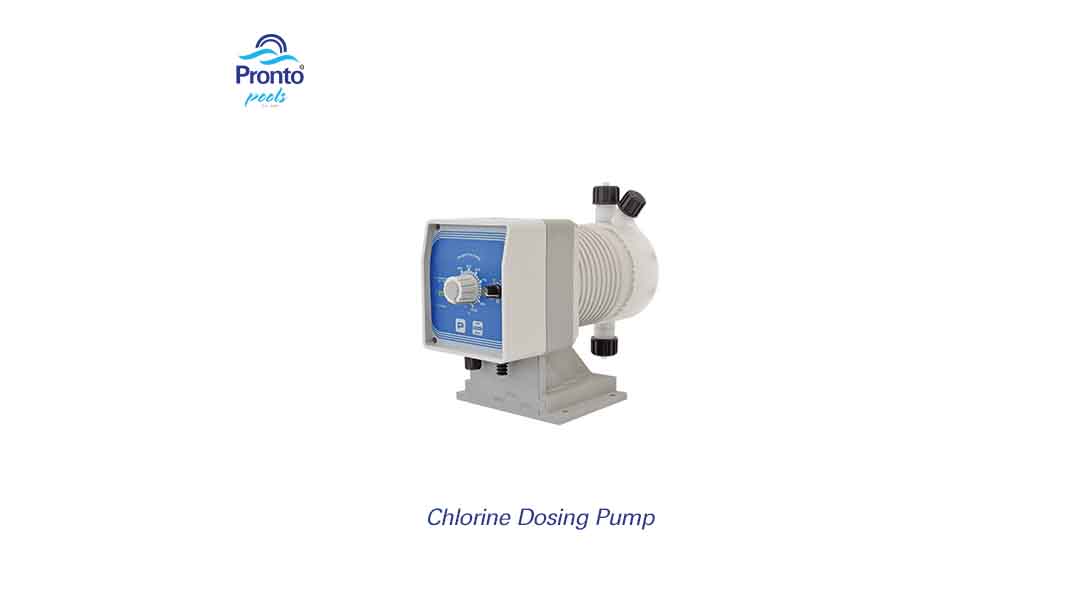

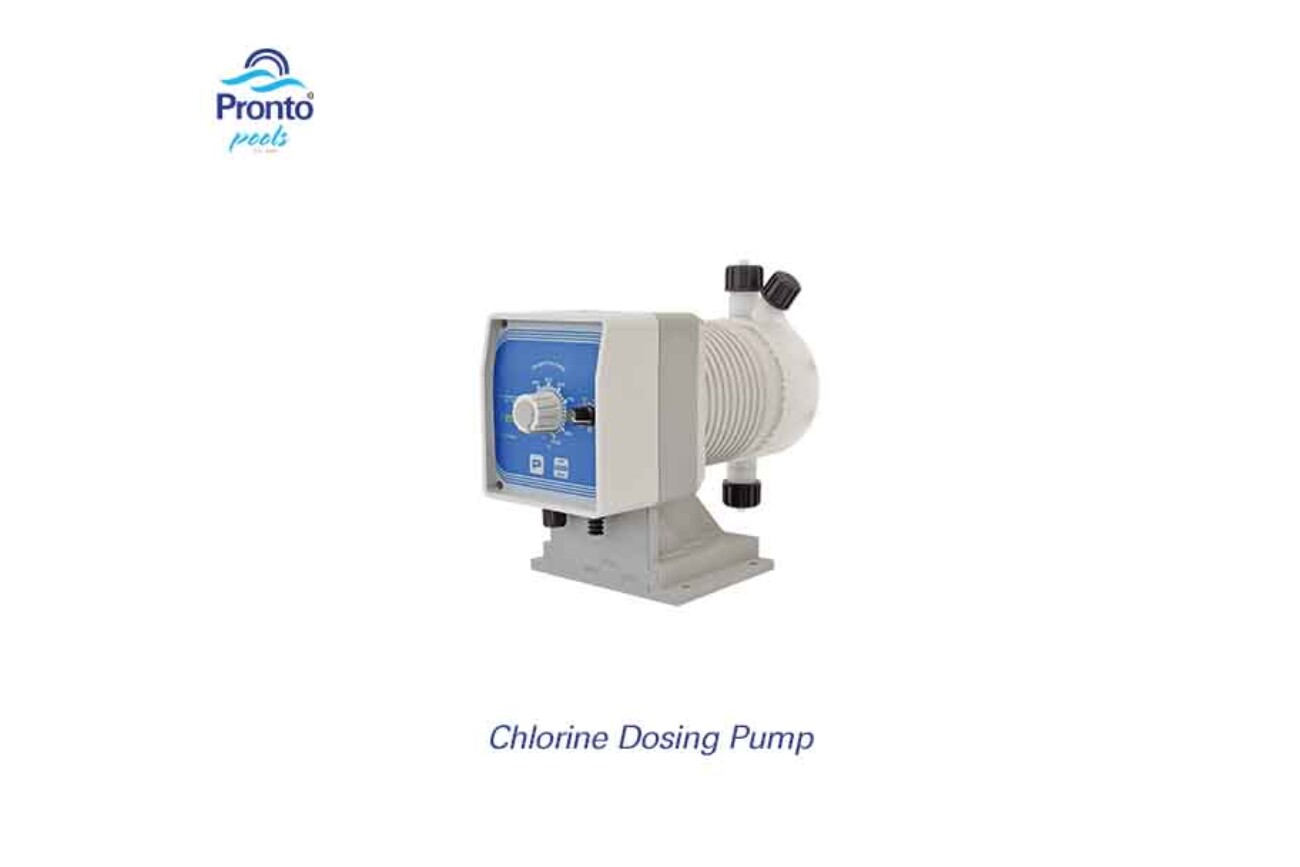

Chlorine Dosing Pump: Automates chlorine delivery for consistent water sanitation with minimal manual effort.
-

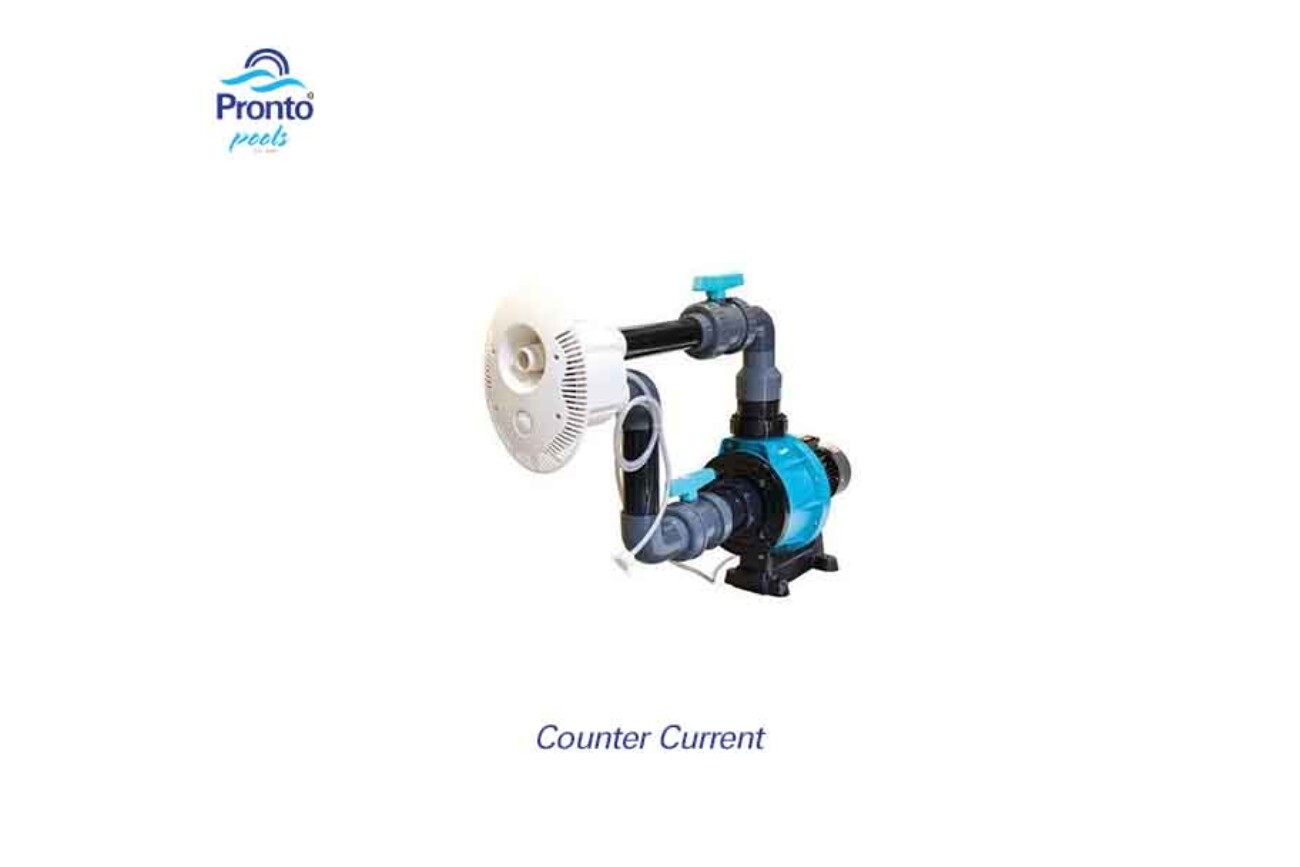

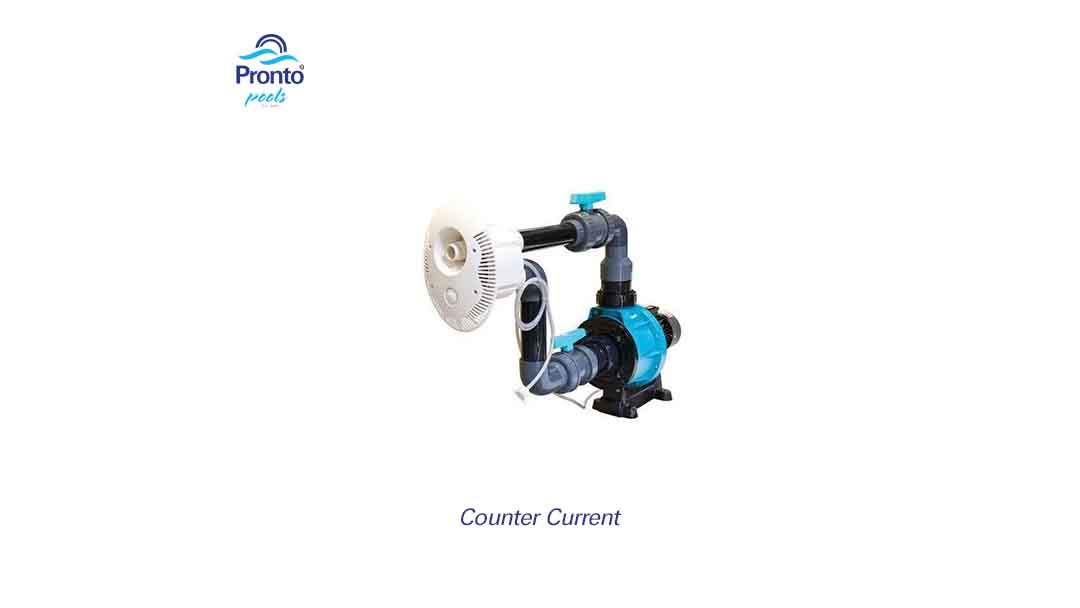

Pool Counter Current System: Creates a strong, adjustable water stream for stationary swimming and aquatic exercise.
-

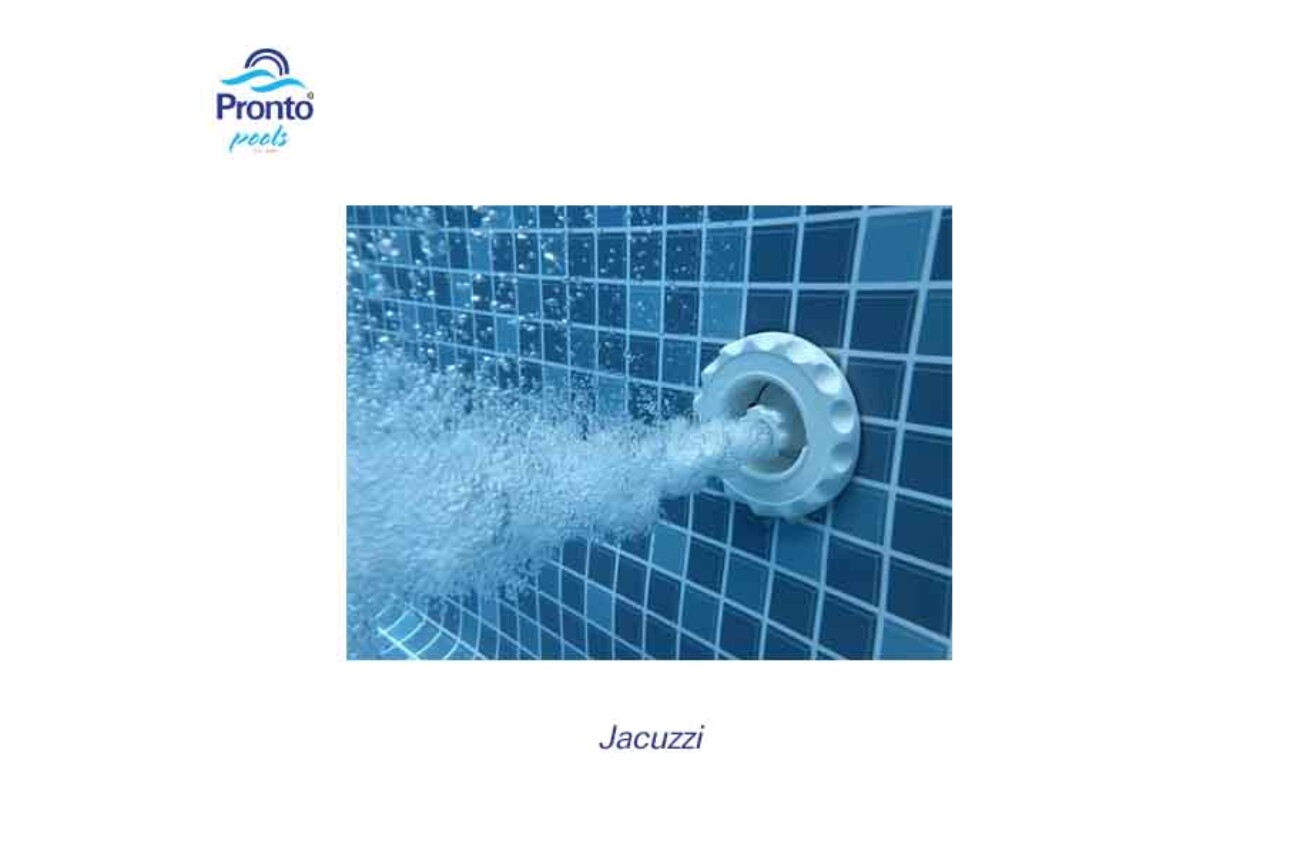

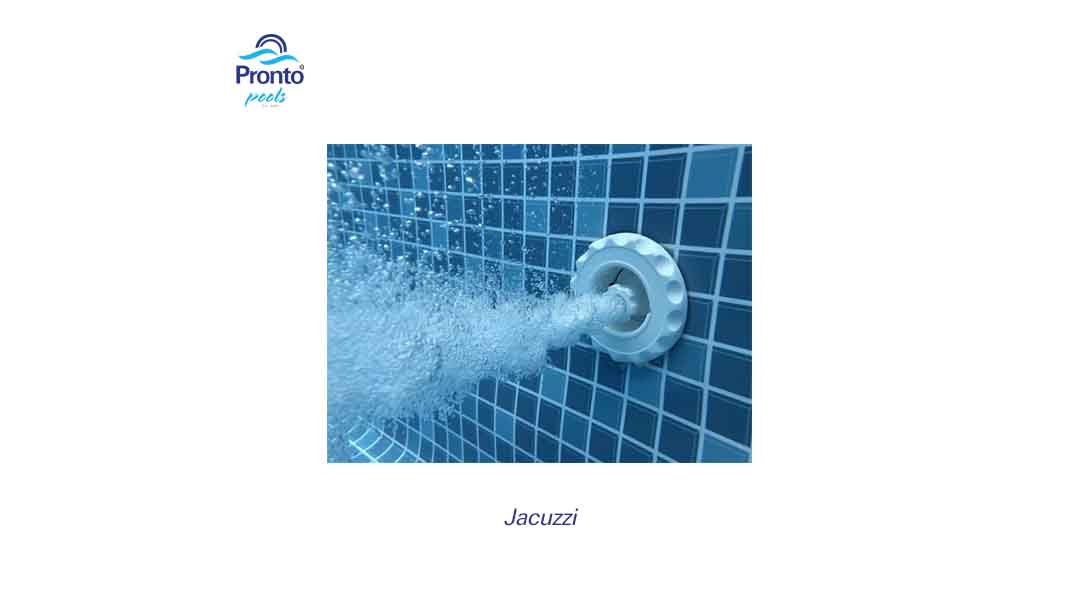

Jacuzzi: A spa-style heated zone with water jets, offering hydrotherapy and relaxation at the edge of your pool.
These features can be added based on your needs, lifestyle, and pool usage preferences—making your pool more versatile and enjoyable.
For more info on Pool Cleaning click here
